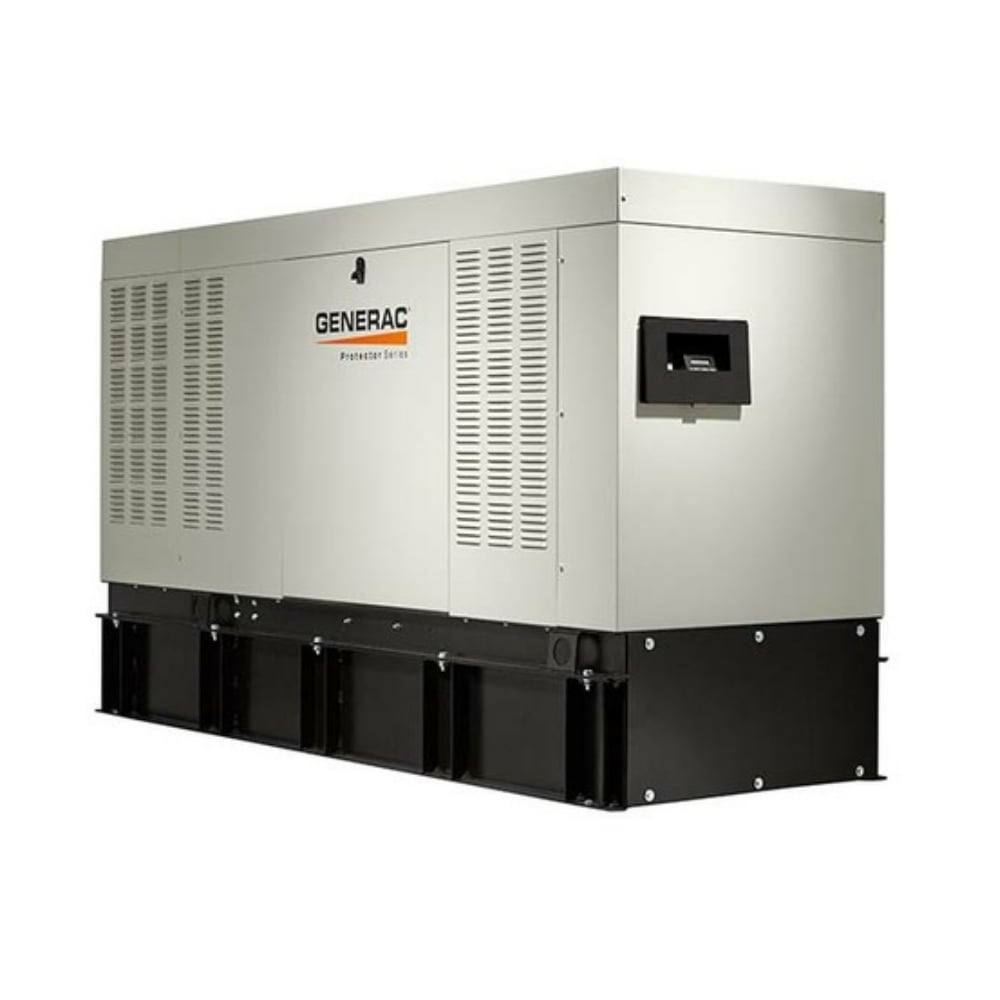

Generac RD04834 48kW 1? only Protector Alum. Generator Diesel

Generac RD04834 - Protector Aluminum Generator Diesel

Features:

• EVOLUTION CONTROLLER – allows for easy monitoring and management of generator functions.
• QUIET-TEST – weekly self-test mode that runs at a lower RPM, is quieter, and consumes less fuel.
• 5 YEAR LIMITED WARRANTY
• CODE READY – compatibility with various codes, with external vent and fill, a UL/CUL 142-listed, double-walled base tank, a UL/CUL 2200-listed generator, and a wide range of code-driven accessories.
• Isochronous governor: Electronic governor control for tight and precise load response, and voltage/frequency regulation
• Same robust engines used on the Generac Industrial Power products
• External viewing window for easy indication of generator status and breaker position
• Removable doors for easy service and fuel fill access
• Generous stub-up area for easy connections with dual-rated lugs to accept either copper or aluminum conductors with removable kick-plate for stub-up access
• Compatible with Mobile Link
• Non-bid/Spec
• Will utilize the standard RTS or RXS switches

Specifications:

• Power Output 48kW
• Type Synchronous
• Rotor Insulation Class F
• Stator Insulation Class H
• Telephone Interference Factor (TIF) <50
• Alternator Output Leads 1-Phase 3 wire
• Alternator Output Leads 3-Phase 6 wire
• Bearings Single Sealed Cartridge
• Coupling Direct, Flexible Disc
• Excitation System Direct

Voltage Regulation:

• Type Electronic
• Sensing Single Phase
• Regulation +/- 1%
• Features Adjustable Voltage and Gain

Governor Specifications:

• Type Electronic Isochronous
• Steady State Regulation +/- 0.25%

Electrical System:

• Battery Charge Alternator 70 Amp
• Static Battery Charger 2 Amp
• Recommended Battery Group 27F, 700 CCA
• System Voltage 12 Volts

Engine Specifications:

• Model In-line
• Cylinders 4
• Displacement (Liters) 3.4
• Bore (in/mm) 3.86/98
• Stroke (in/mm) 4.45/113
• Compression Ratio 18.5:1
• Intake Air System Turbocharged/Aftercooled
• Cylinder Head Type Cast Iron OHV
• Piston Type Aluminum
• EPA Emissions Compliance Emergency Stationary

Engine Lubrication System:

• Oil Pump Type Gear
• Oil Filter Type Full flow spin-on cartridge
• Crankcase Capacity (qt/l) 7.4/7

Engine Cooling System:

• Type Closed recovery
• Water Pump Pre-lubed, self-seating
• Fan Speed (rpm) 2029
• Fan Diameter (in/mm) 22/559
• Fan Mode Pusher

Fuel System:

• Fuel Type Ultra Low Sulfur Diesel Fuel
• Fuel Pump Type Mechanical Engine Driven Gear
• Injector Type Mechanical
• Fuel Supply Line (mm/in) 7.94/0.31 (ID)
• Fuel Return Line (mm/in) 7.94/0.31(ID)
• Fuel Specification ASTM
• Fuel Filtering (microns) 10

Tank Specifications:

• Total Size (gallons/liters) 62/234.7
• Usable Size (gallons/liters) 57/215.8
• Run Time @ 1/2 Load (hrs) 25
