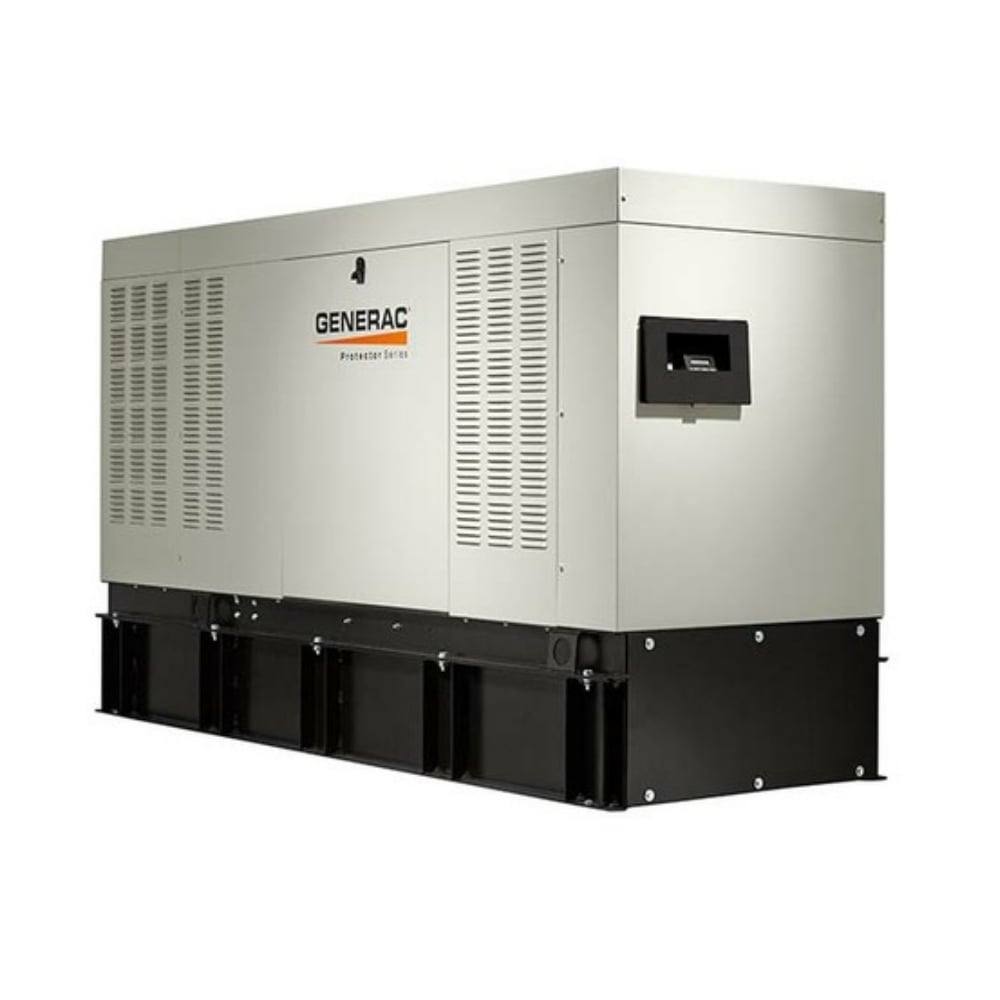

Generac RD01523 15kW Protector Aluminum Generator Diesel

 Generac RD01523 - Protector Aluminum Generator Diesel

Features:

• Two Line LCD Multilingual Digital Evolution Controller
• Isochronous Electronic Governor
• Sound Attenuated Aluminum Enclosure
• Smart Battery Charger
• UV/Ozone Resistant Hoses
• ±1% Voltage Regulation
• Integrated Base Tank Provides 24 Hour Run Time Minimum at 1/2 Load
• 5 Year Limited Warranty
• UL/CUL2200/UL 142 Listed
• Meets code requirements for External Vent and Fill

Specifications:

• Power Output 15kW
• Type Synchronous
• Rotor Insulation Class H
• Stator Insulation Class H
• Telephone Interference Factor (TIF) <50
• Alternator Output Leads 1-Phase 3 wire
• Alternator Output Leads 3-Phase 6 wire
• Bearings Single Sealed Cartridge
• Coupling Direct, Flexible Disc
• Excitation System Direct

Voltage Regulation:

• Sensing Single Phase
• Regulation ± 1%
• Features Adjustable Voltage and Gain

Governor Specifications:

• Type Electronic Isochronous
• Steady State Regulation ± 0.25%

Electrical System:

• Battery Charge Alternator 50 Amp
• Static Battery Charger 2 Amp
• Recommended Battery Group 27F, 700 CCA
• System Voltage 12 Volts

Engine Specifications:

• Model In-line
• Cylinders 4
• Displacement (Liters) 2.28
• Bore (in/mm) 3.46/88
• Stroke (in/mm) 3.70/94
• Compression Ratio 21.3:1
• Intake Air System Naturally Aspirated
• Cylinder Head Type Cast Iron OHV
• Piston Type Emergency Stationary
• EPA Emissions Compliance Aluminum
• ENGINE LUBRICATION SYSTEM
• Oil Pump Type Gear
• Oil Filter Type Full flow spin-on cartridge
• Crankcase Capacity (qt/l) 6.87/6.5

Engine Cooling System:

• Type Pressurized radiator
• Water Pump Pre-lubed, self-seating
• Fan Speed (rpm) 1800
• Fan Diameter (in/mm) 18.11/460
• Fan Mode Pusher

Fuel System:

• Fuel Type Ultra Low Sulfur Diesel Fuel
• Fuel Pump Type Mechanical Engine Driven Gear
• Injector Type Mechanical
• Fuel Supply Line (mm/in) 7.94/0.31 (ID)
• Fuel Return Line (mm/in) 7.94/0.31(ID)
• Fuel Specification ASTM
• Fuel Filtering (microns) 5

Tank Specifications:

• Total Size (gallons/liters) 34/128.7
• Usable Size (gallons/liters) 32/121.1
• Run Time @ 1/2 Load (hrs) 41
