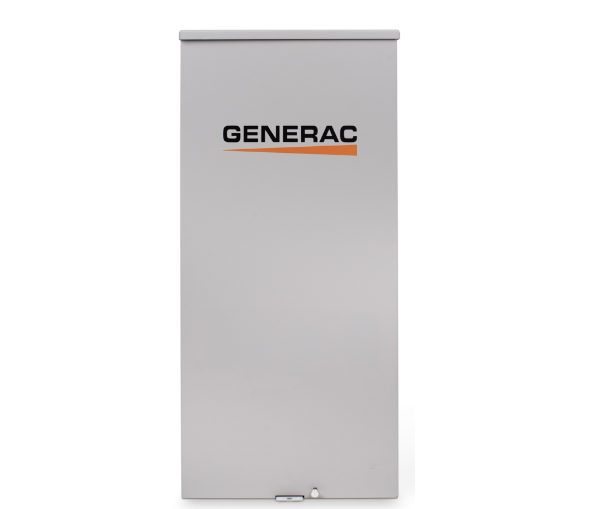

• Generac 9954 150A Single-Phase Automatic Transfer Switch With Whole-House Surge Protector

Generac Power Systems

Generac 9954 150A Single-Phase Automatic Transfer Switch With Whole-House Surge Protector

SKU GEN-9954
$0.00

Generac 9954 (often listed as G0099540) is a popular, high-featured 150 Amp Automatic Transfer Switch (ATS) designed for single-phase residential applications, offering comprehensive protection and seamless power transfer.
Generac 9954 150A Single-Phase Automatic Transfer Switch With Whole-House Surge Protector

Product Description

Generac 9954 150A Single-Phase Automatic Transfer Switch With Whole-House Surge Protector

Generac 9954 is a 150 Amp, single-phase, Service Entrance Rated Automatic Transfer Switch (ATS). This model includes a main disconnect breaker and uniquely features an integrated Surge Protection Device (SPD), which shields the home's entire electrical system and the standby generator from damaging power spikes. Housed in a NEMA 3R enclosure, it offers a secure, all-in-one solution for whole-house backup power with enhanced protection.

Features

Integrated Surge Protection Device (SPD)

  • Includes a built-in, code-compliant surge protector.

150 Amp Rating

  • Handles the full 150 amps of continuous transfer current.

Service Entrance Rated

  • Includes the integrated main utility disconnect circuit breaker.

NEMA 3R Enclosure

  • Constructed with a durable, weather-resistant outdoor cabinet.

True Mechanical Lockout

  • The switch mechanism is mechanically held.

More Information

Manufacturer: Generac Power Systems
MPN: 9954
ConditionNew
Amps150 Amps
Engine ManufacturerGenerac
Frequency60 Hz
GradeCommercial
Number of Poles2
Voltage120/240V
WidthApprox. 15.6 in
Height Approx. 34.25 in
Warranty5-Year Limited Warranty
