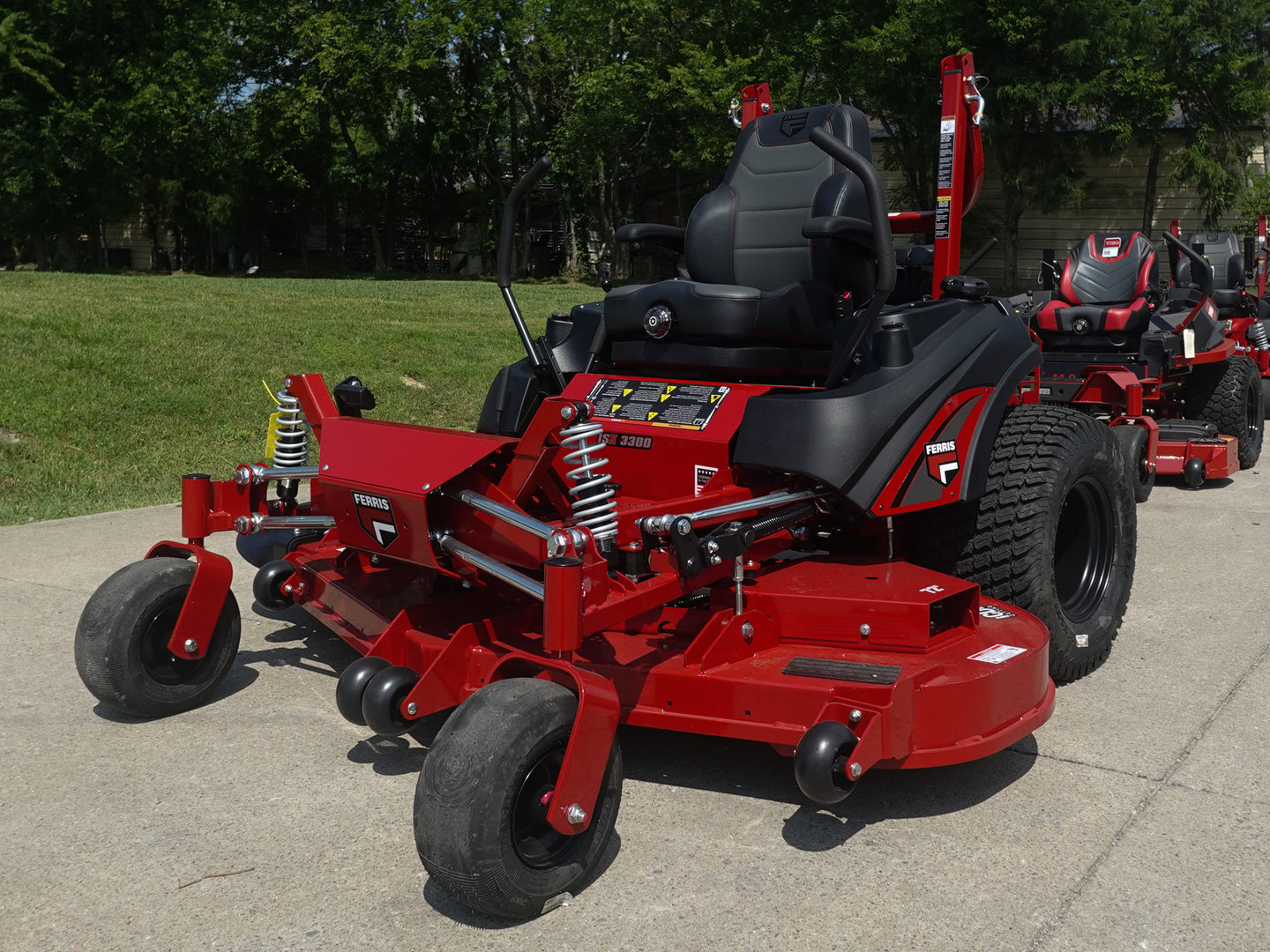

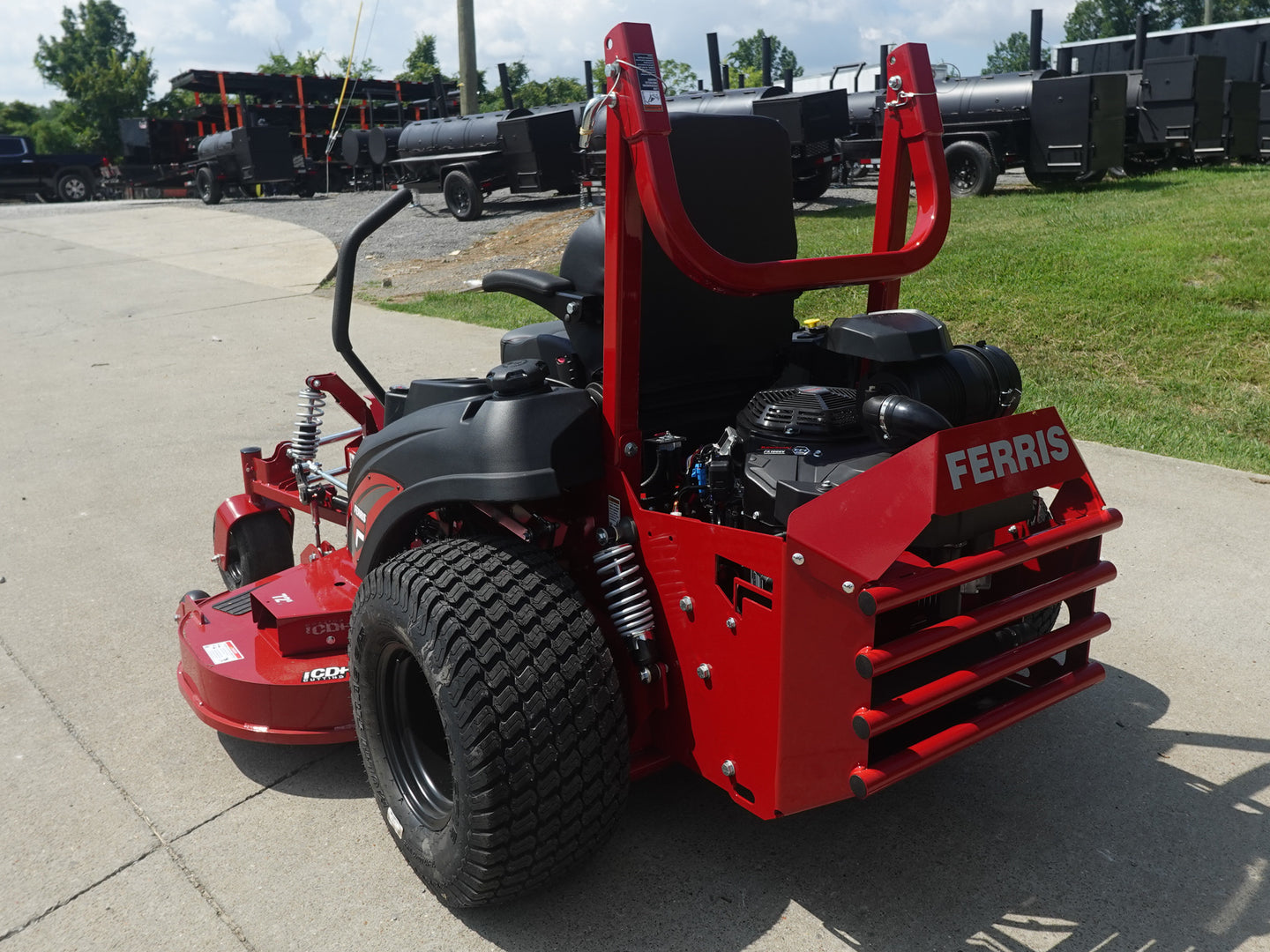

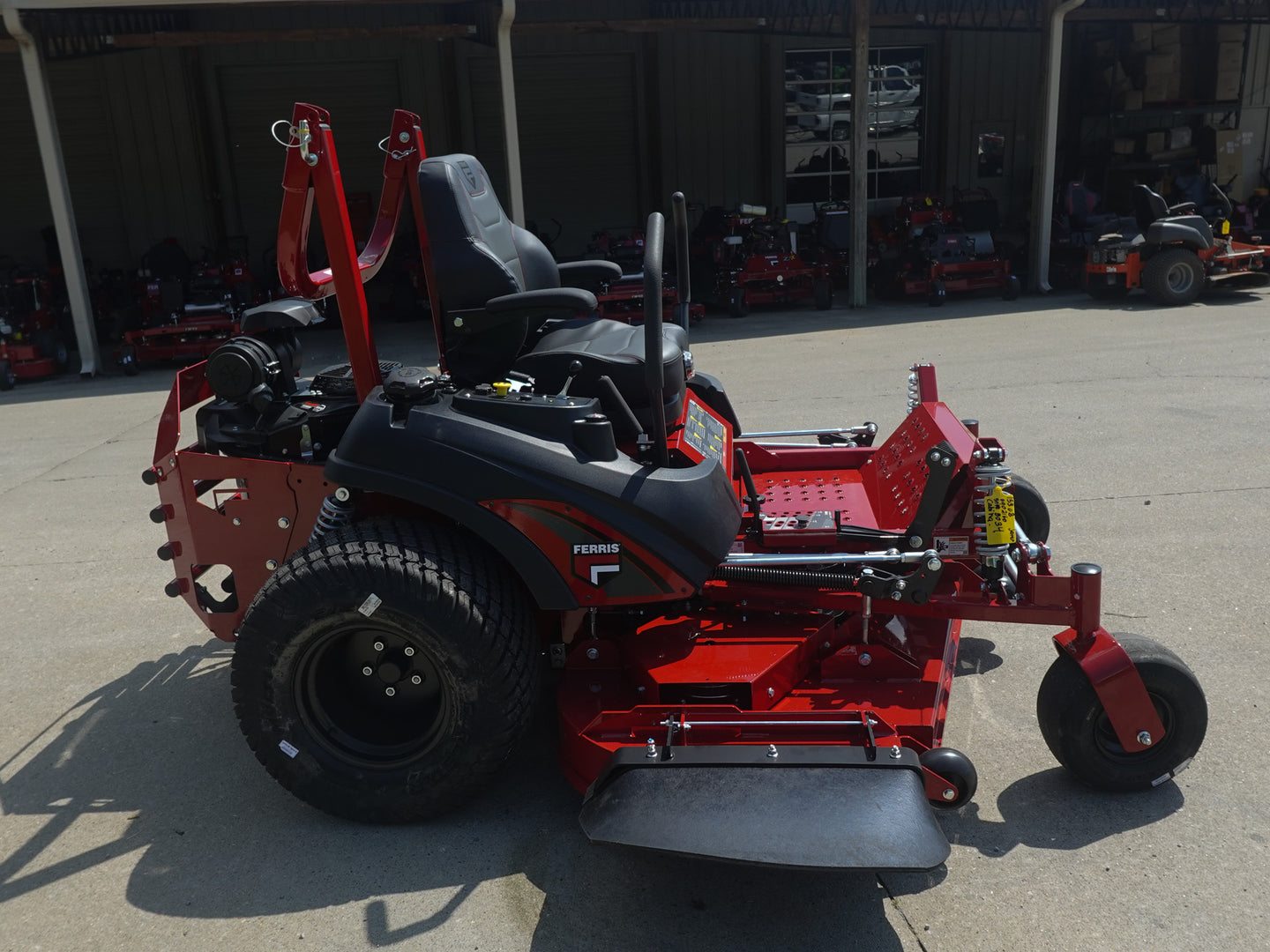

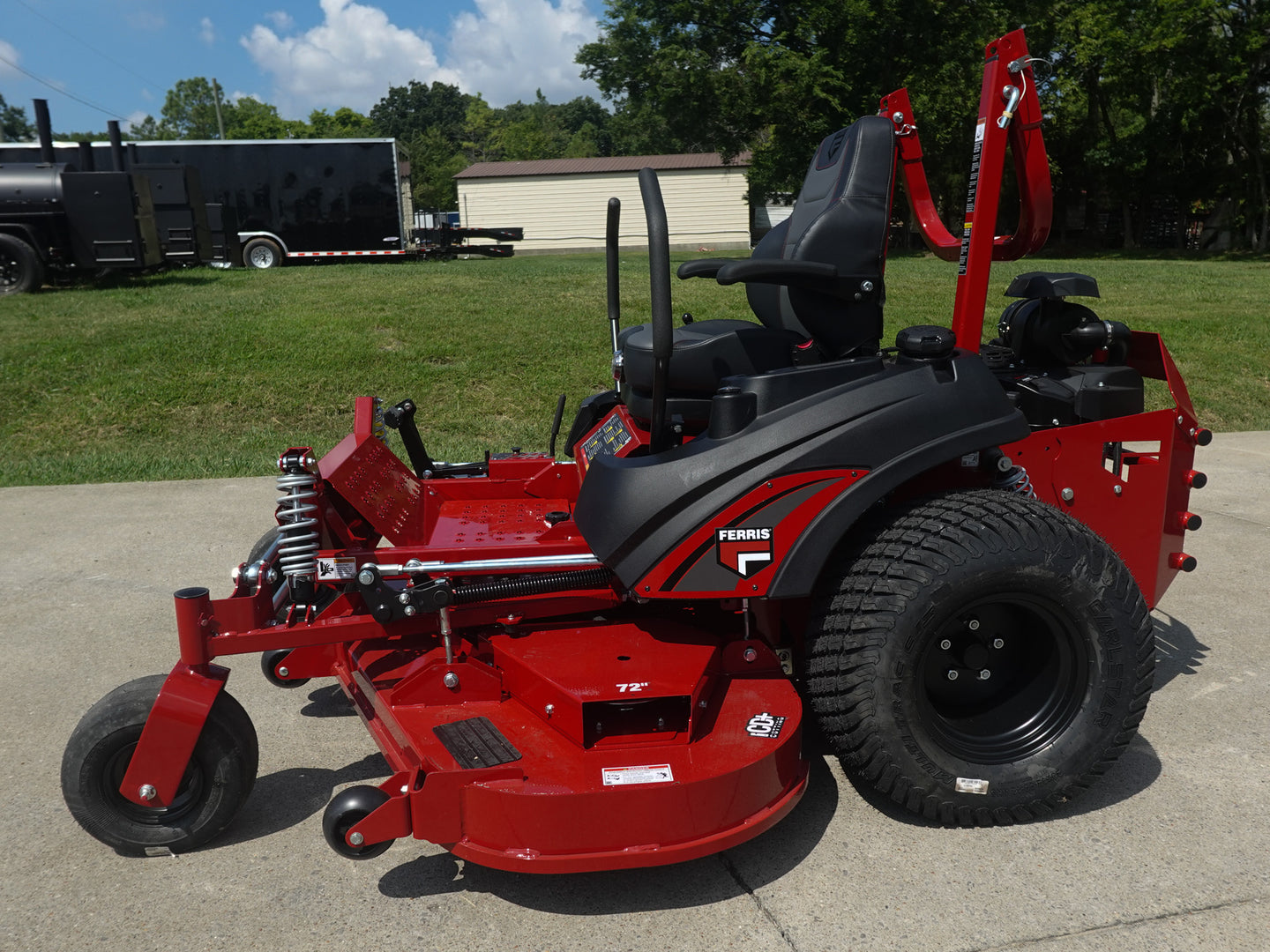

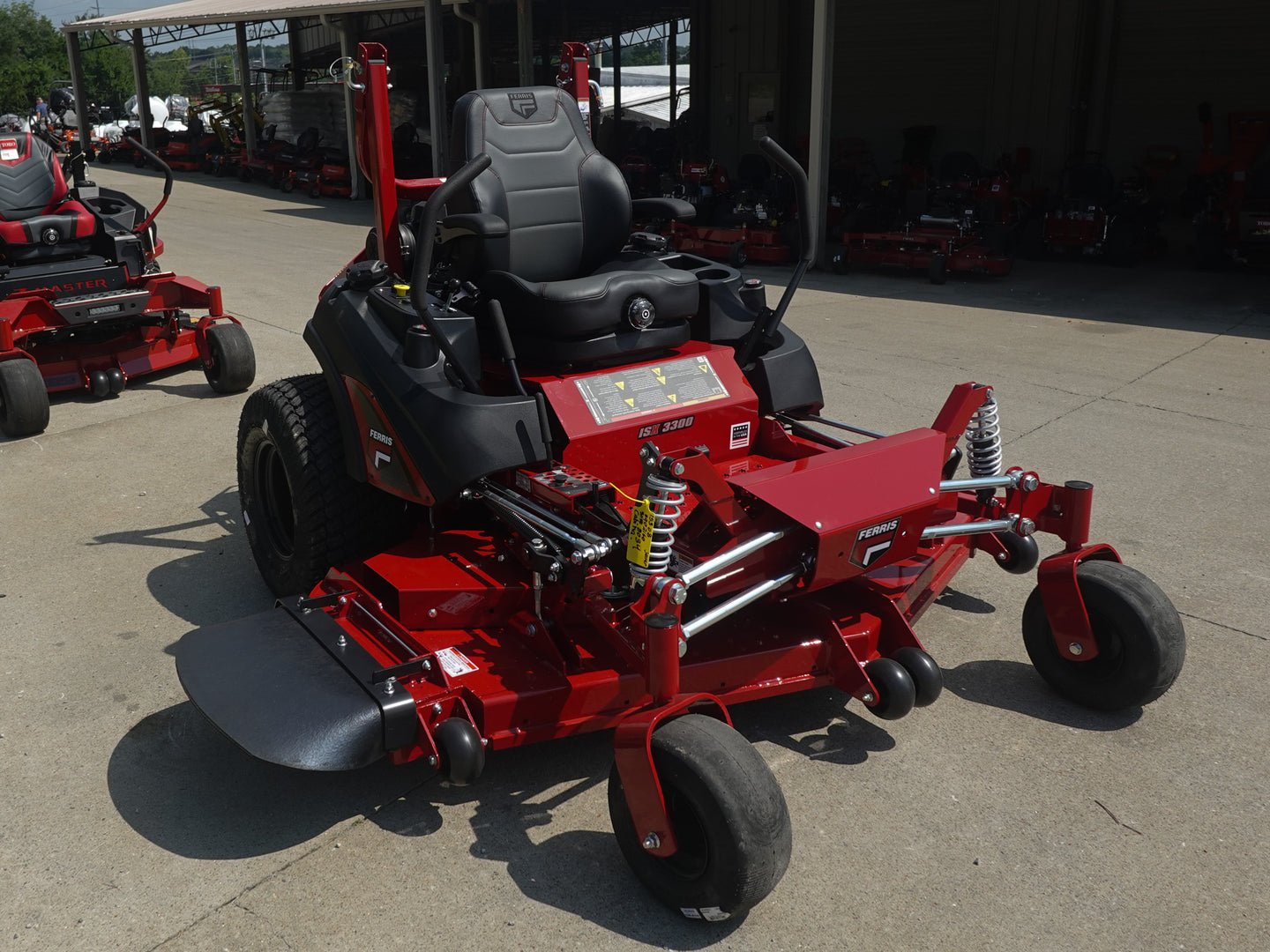

    Ferris ISX 3300 72" Kawasaki Zero Turn

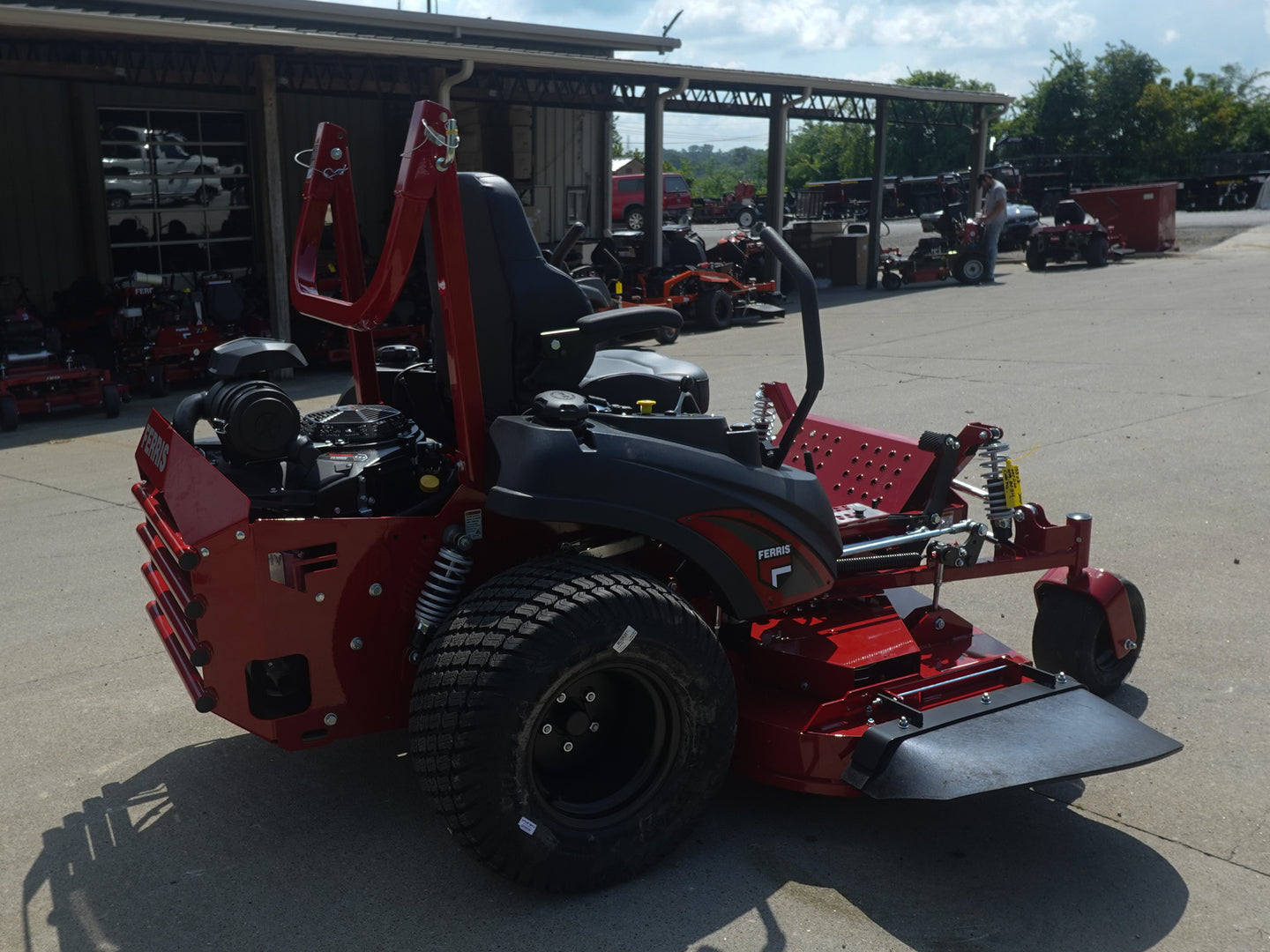

    The Ferris ISX 3300 (model 5902160) pairs a 72" iCD+ fabricated deck with a 38.5 hp Kawasaki FX1000V EFI V-twin for crews that mow large commercial properties every day. ForeFront suspension at the front and a swing-arm suspension at the rear soak up rough ground, so the operator can hold full ground speed without taking a beating.

    Features:

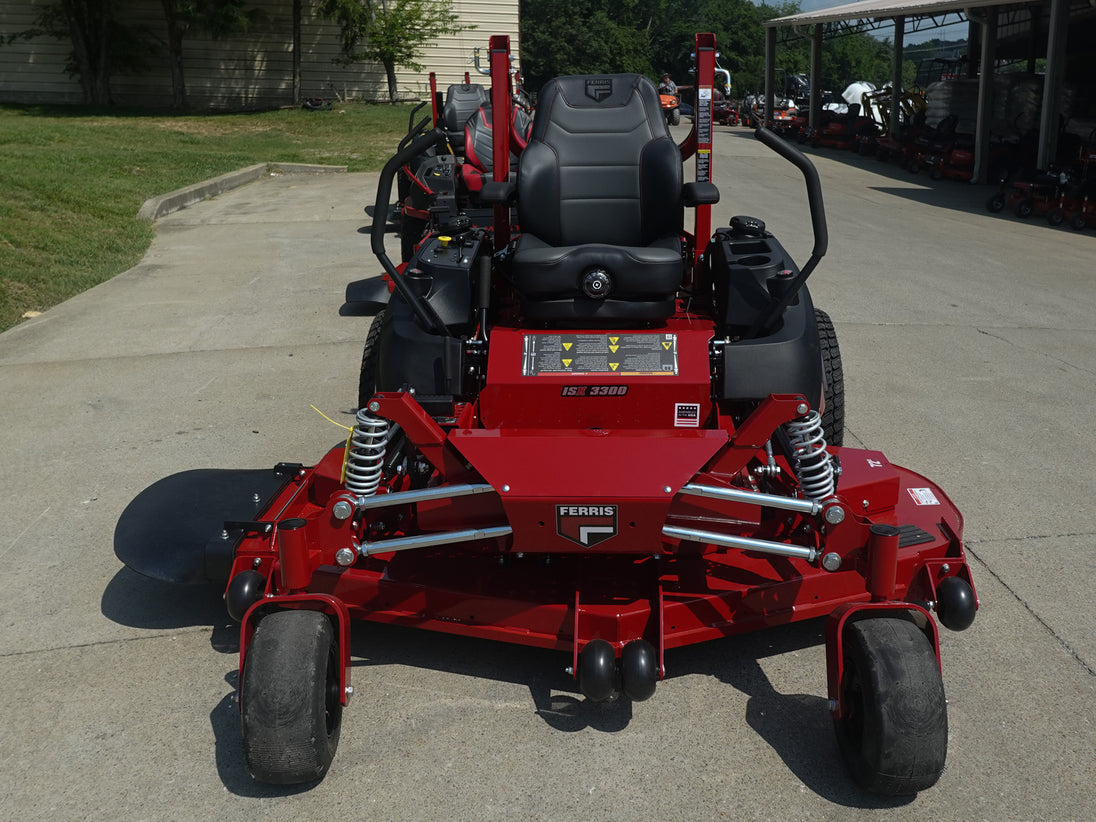

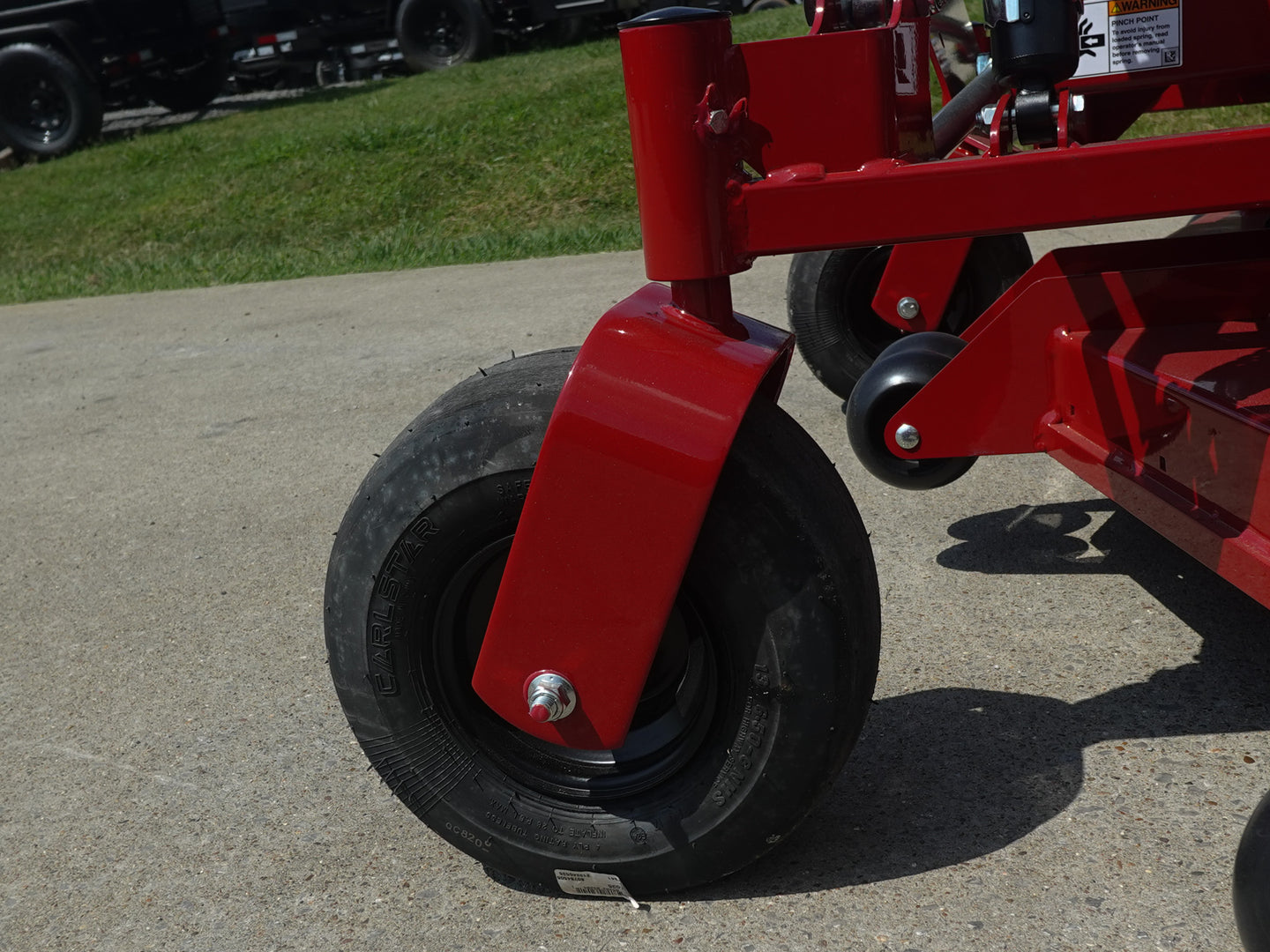

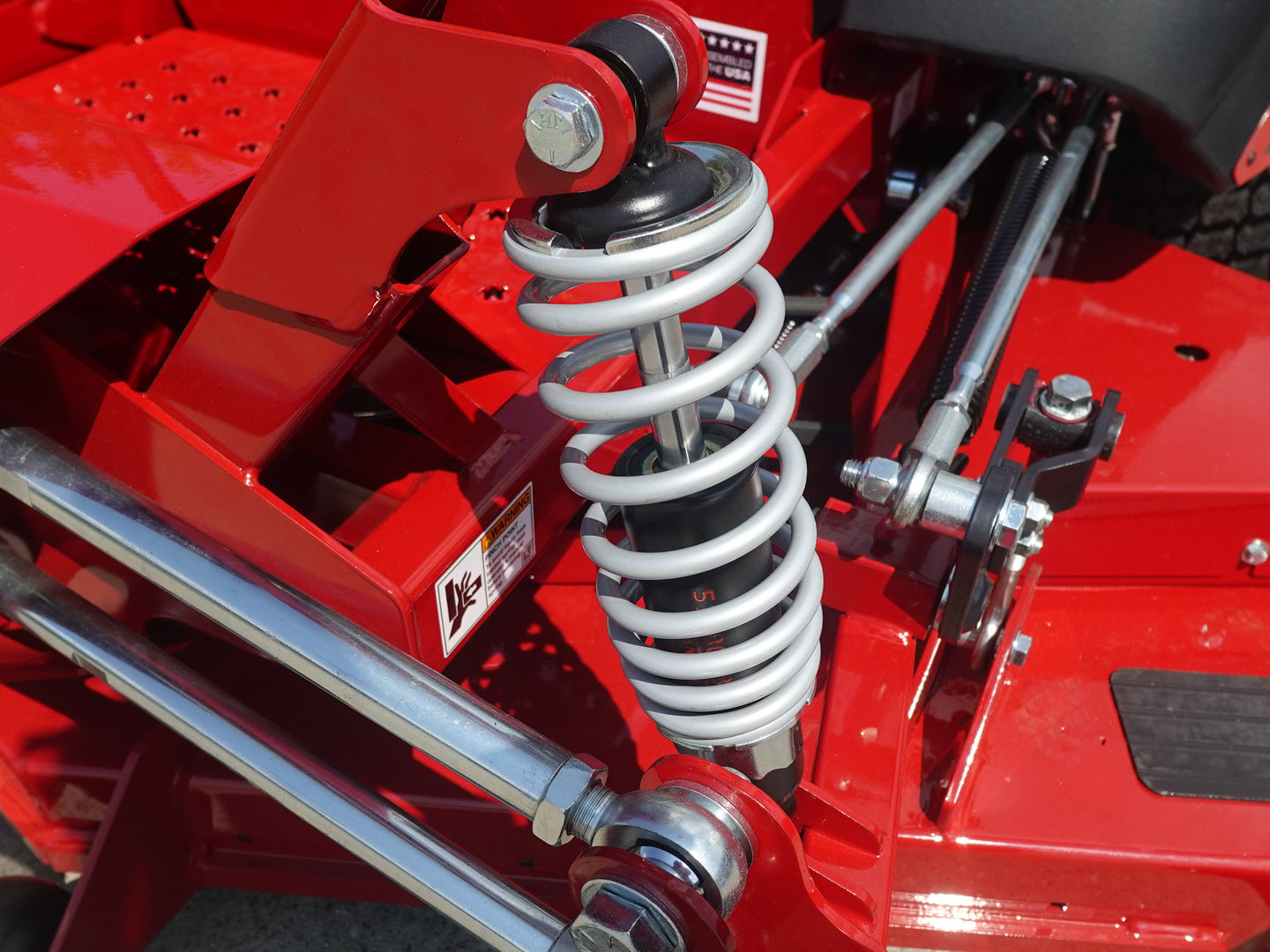

    • ForeFront suspension: Two steel control arms and an adjustable coil-over shock at each front wheel keep the casters upright through the whole range of travel, which cuts caster chatter and keeps mowing lines straight at speed.

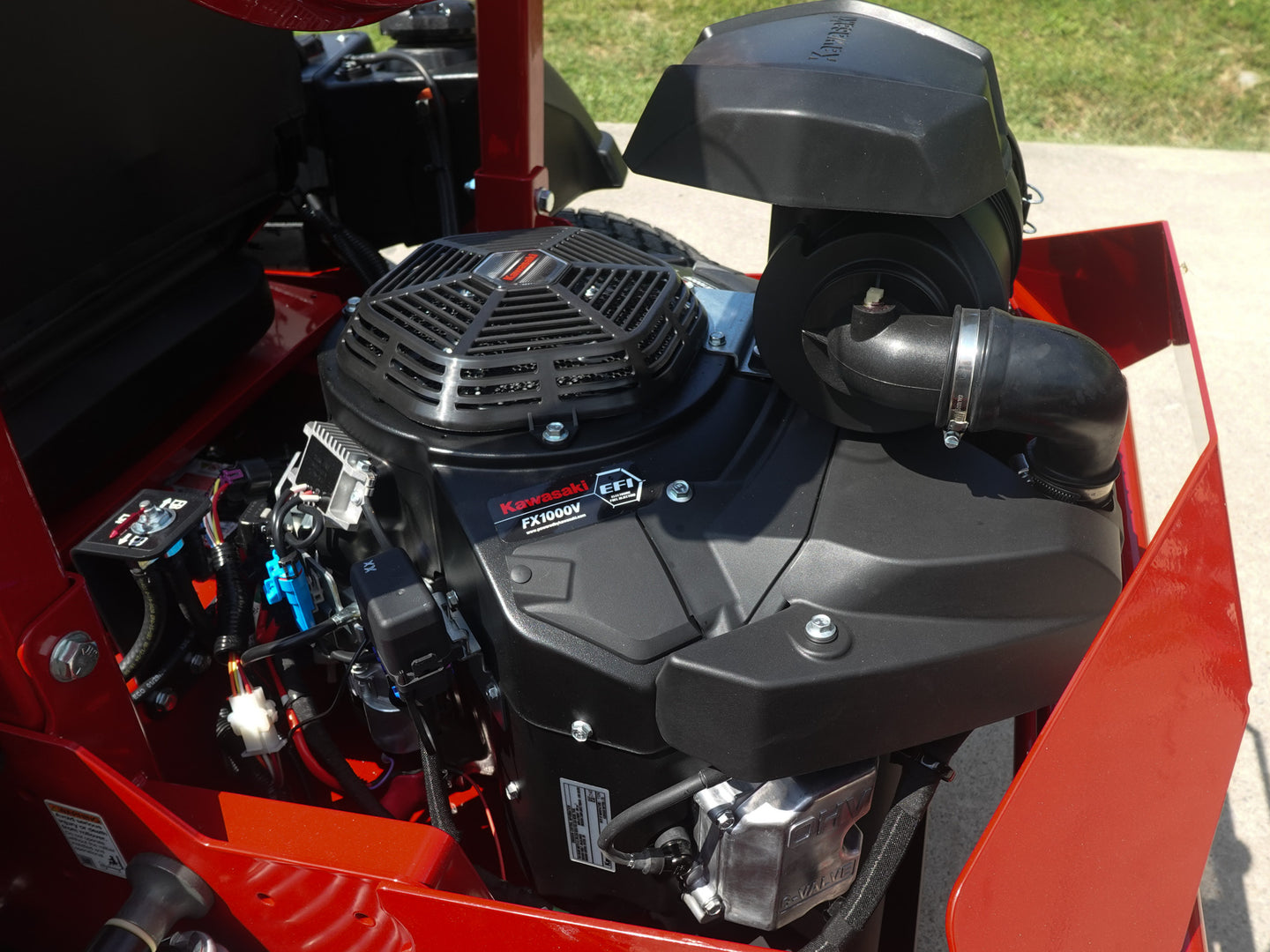

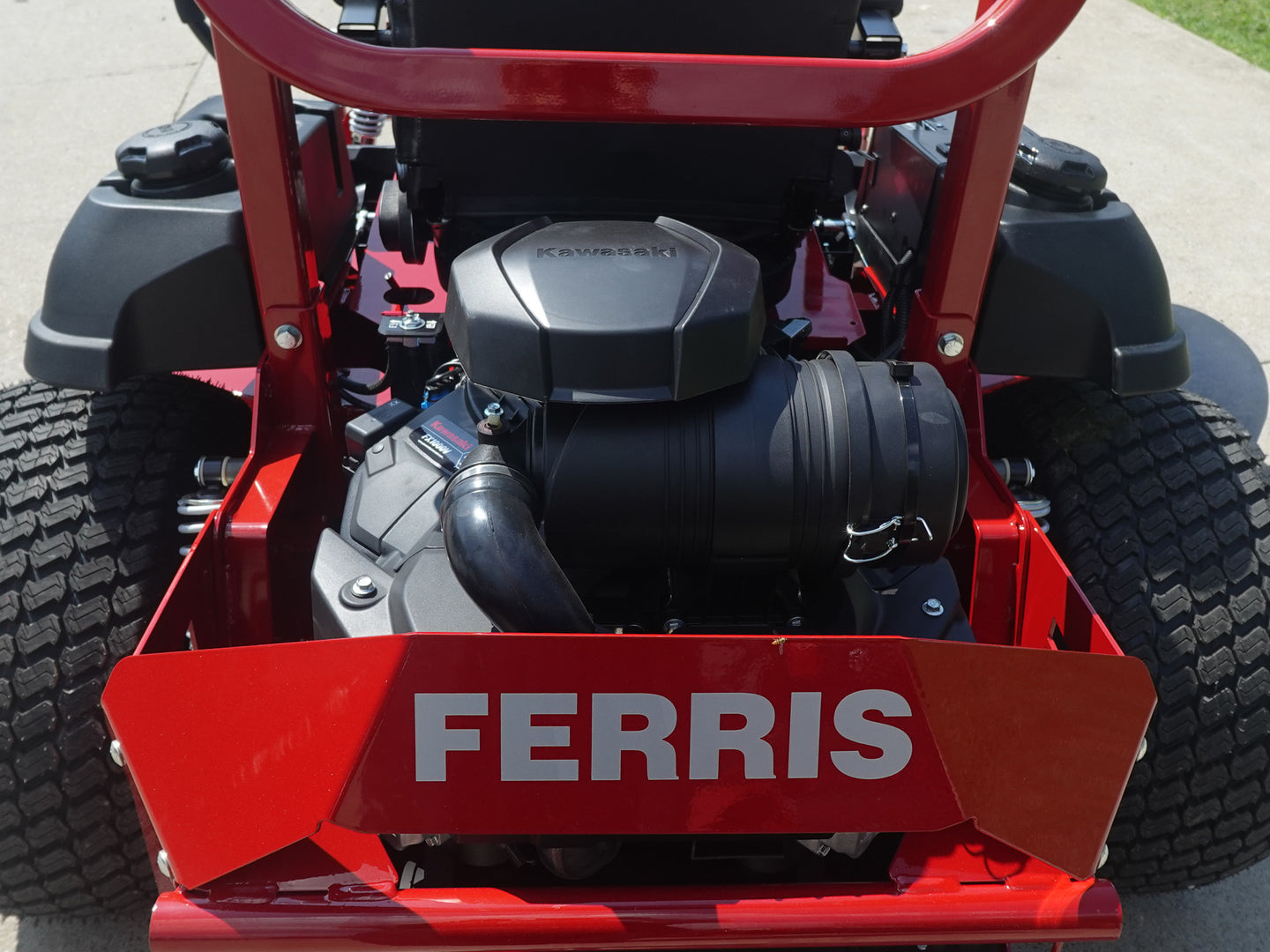

    • Kawasaki FX1000V EFI engine: A 999 cc, 38.5 gross hp V-twin with electronic fuel injection supplies the power a 72" deck needs in thick or wet grass and starts easily in any weather.

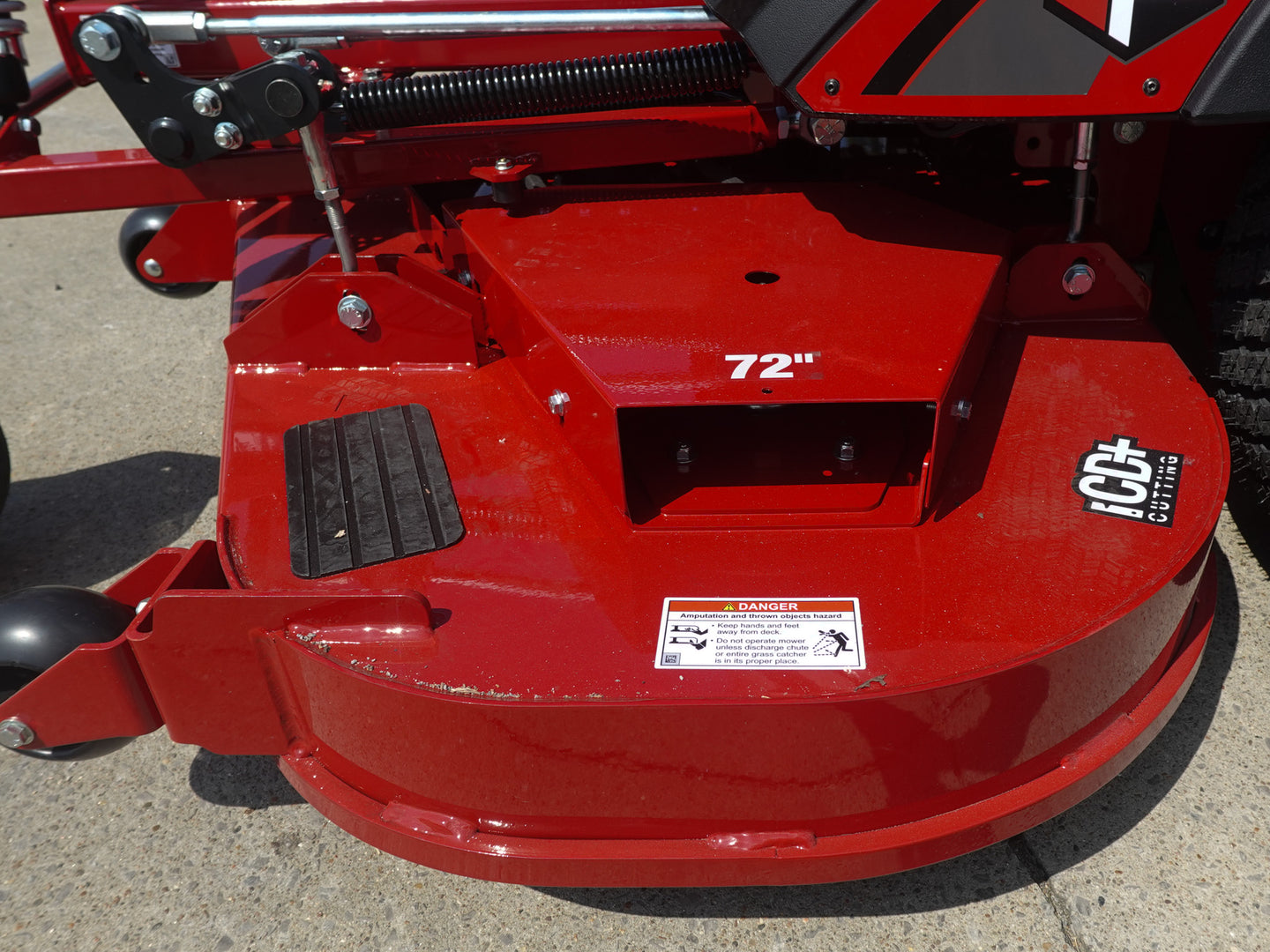

    • 72" iCD+ cutting system: The redesigned fabricated deck uses a 2-belt drive that runs fewer backside idlers, lowering belt stress and heat for longer belt life, with a 1.5" to 5" cutting height range.
    • Hercules II cast-iron spindles: Greaseable spindles with 10" cast-iron housings, industrial double-row angular contact ball bearings and 1-3/16" shafts stand up to all-day commercial use.
    • Hydro-Gear ZT-5400 drive: Dual commercial ZT-5400 Powertrain transaxles with 9" cooling fans deliver up to 12 mph forward and 5 mph in reverse.

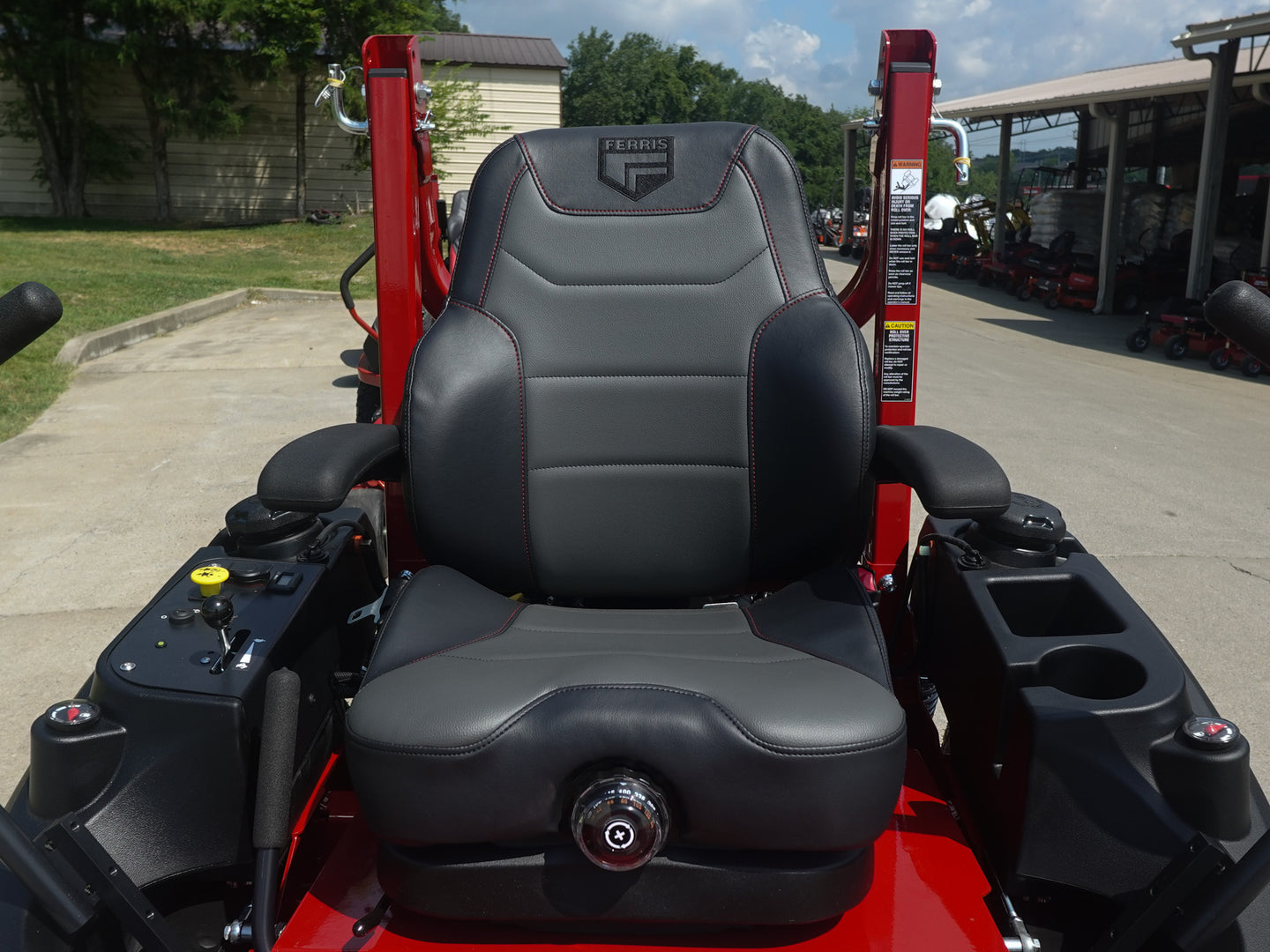

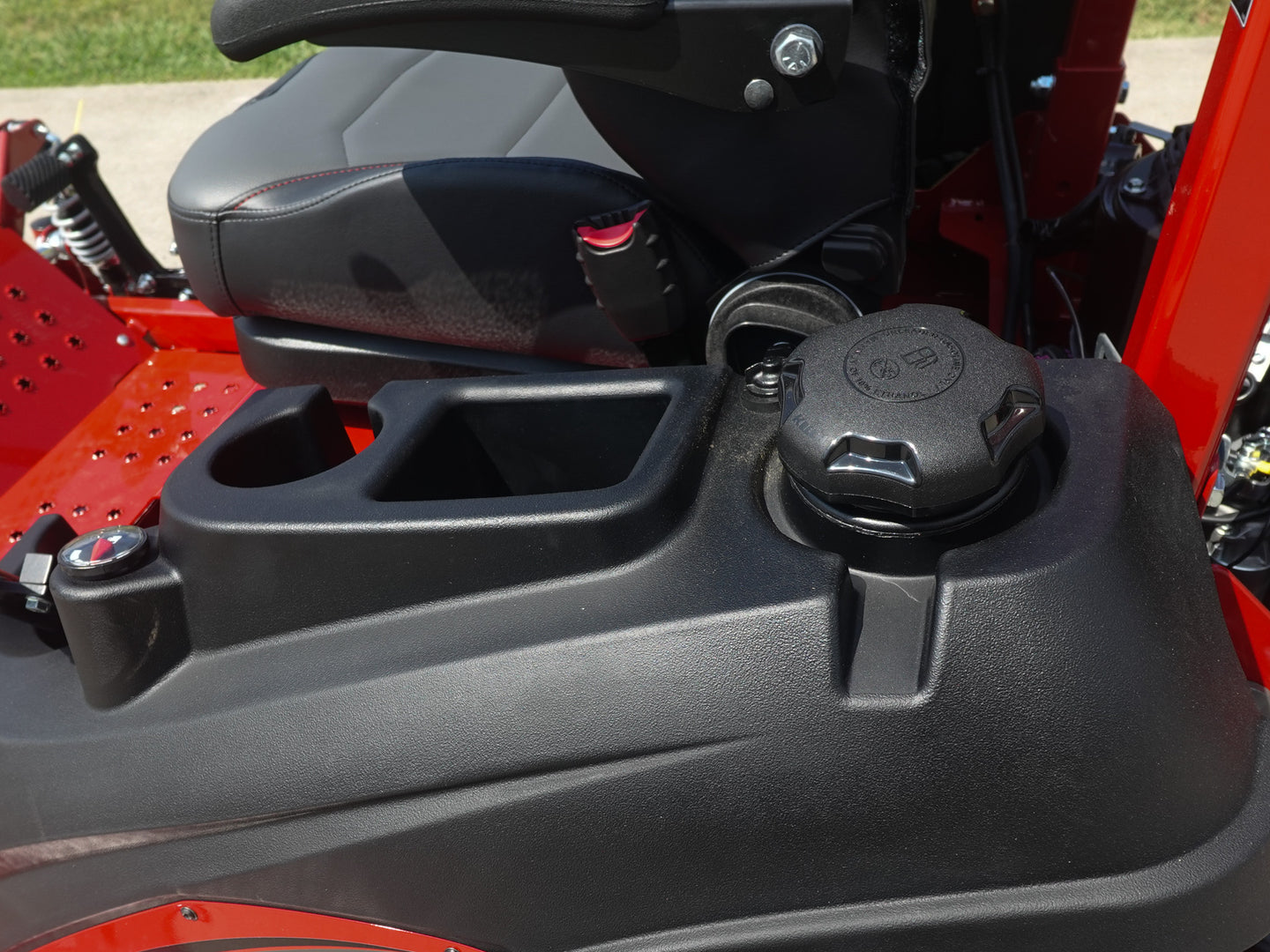

    • Premium suspension seat: The high-back seat has adjustable armrests, adjustable lumbar support and a reclining back to reduce fatigue on long shifts.

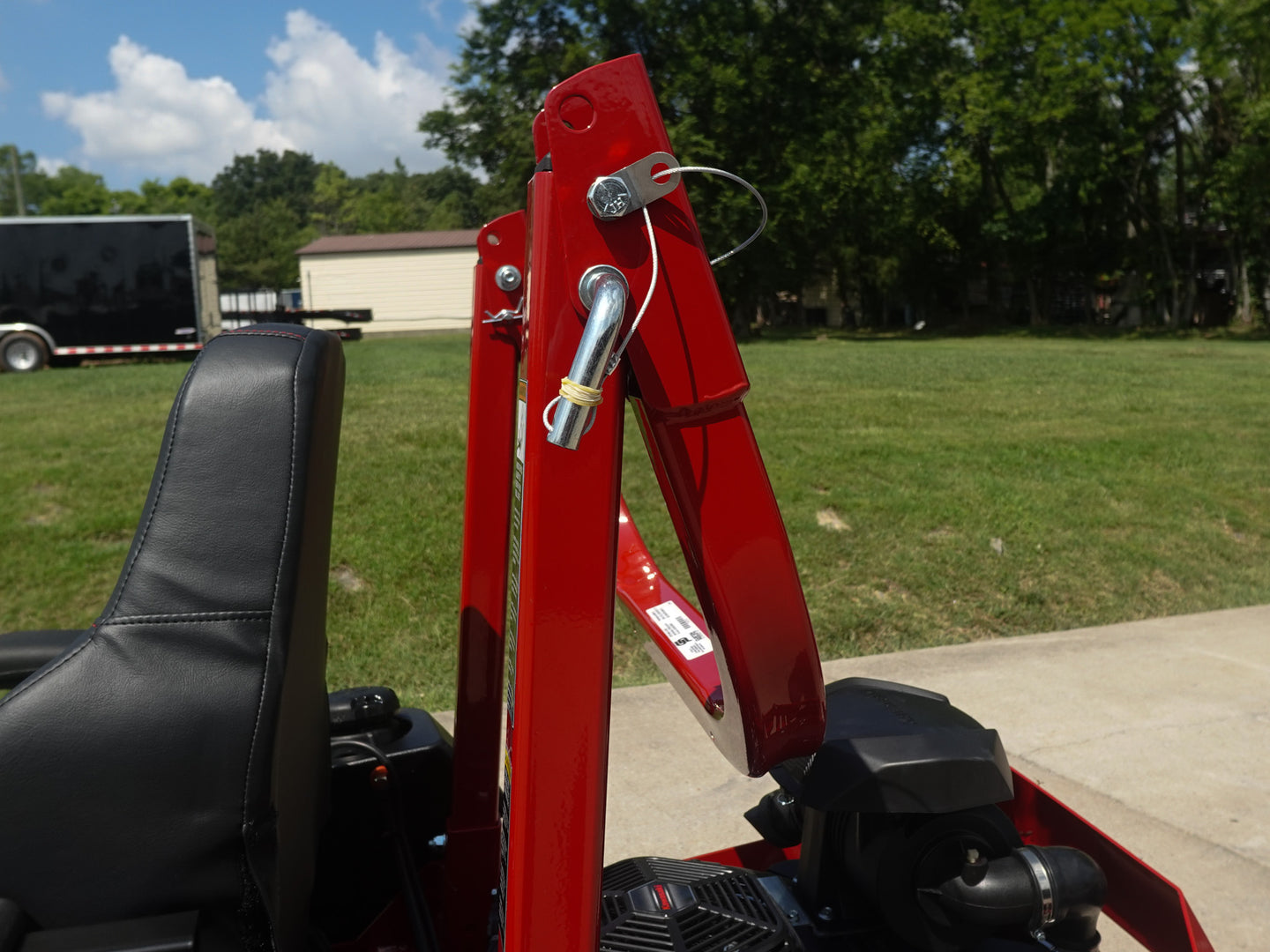

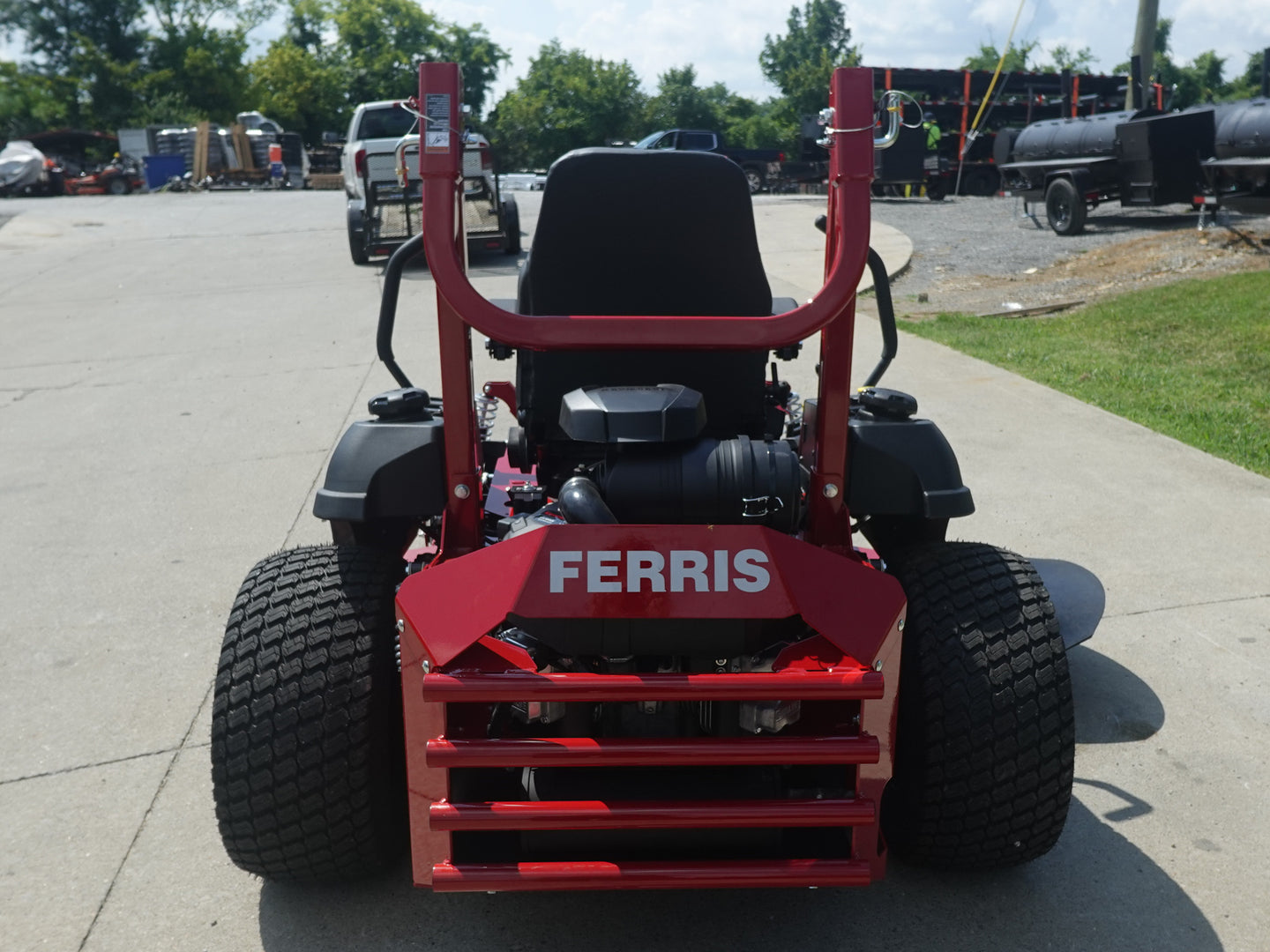

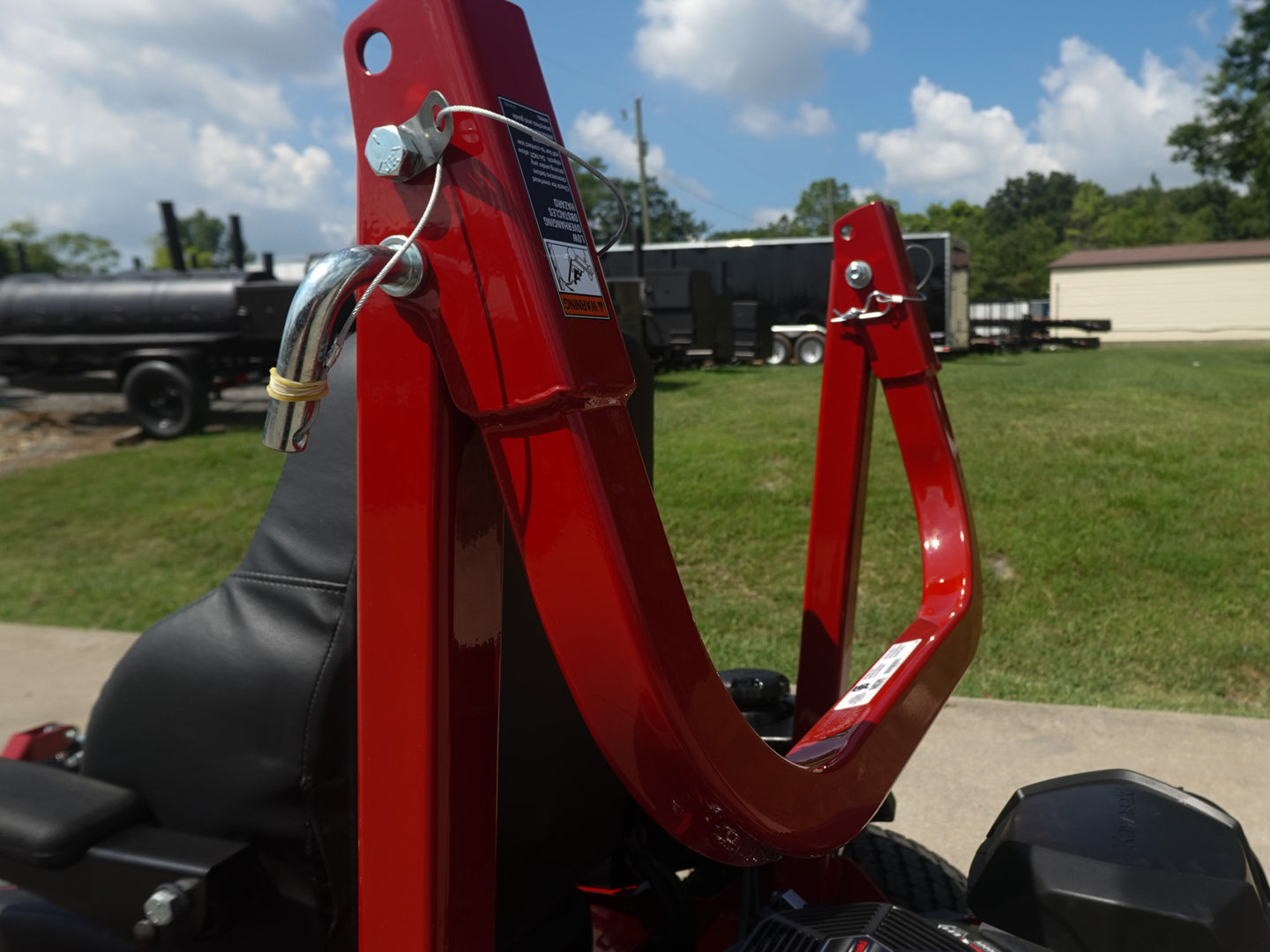

    • Foldable ROPS: A certified roll-over protection structure folds 158° for loading into trailers and storing under low ceilings.

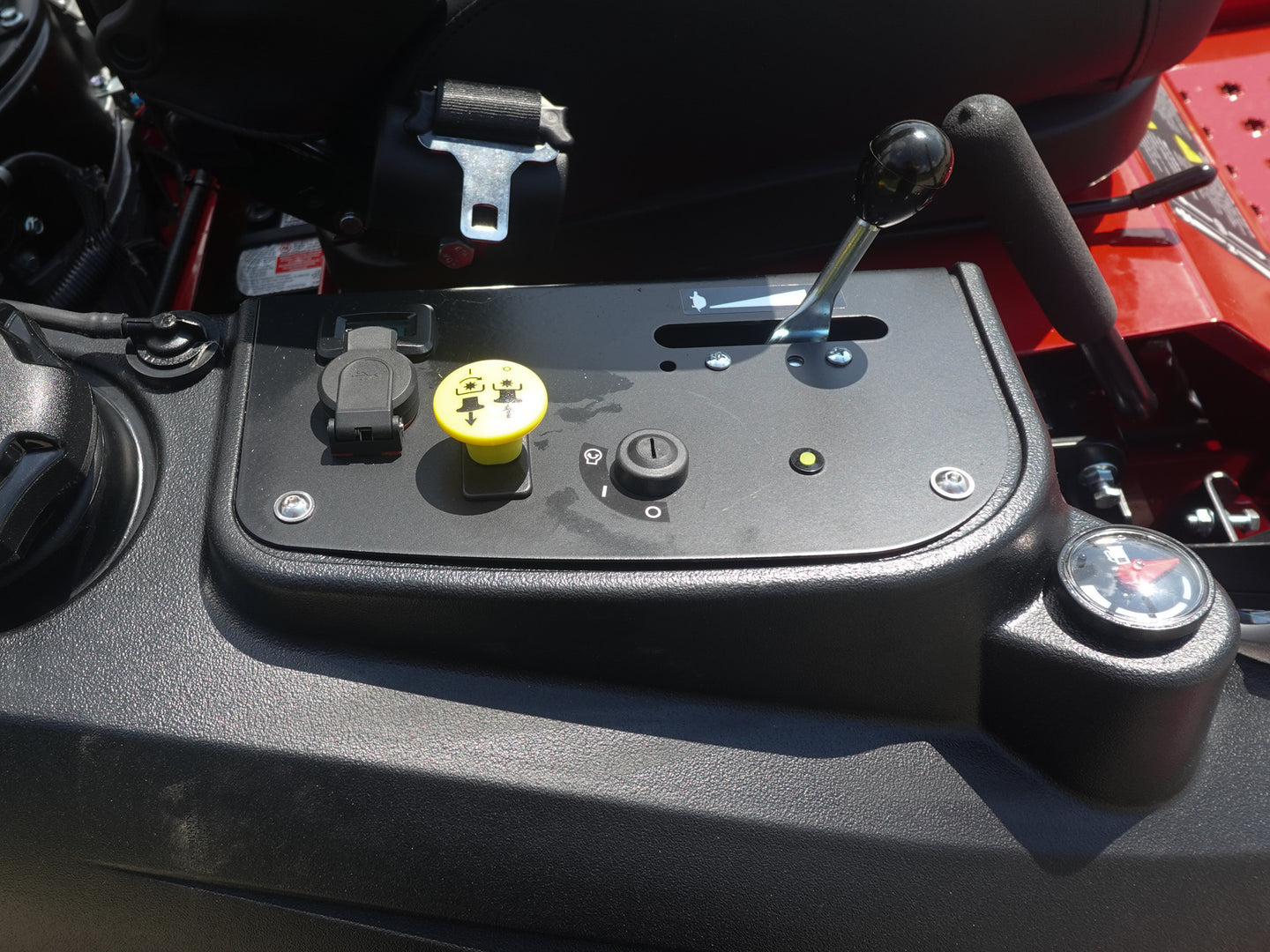

    • Dash charging ports: USB Type A and Type C ports on the control panel keep a phone or tablet charged during the day.

    More Information

    Manufacturer: Ferris
    MPN: 5902160
    ConditionNew
    Shipping OptionsStore Pickup / Delivery Only Call For Price
    Engine ManufacturerKawasaki
    Engine Size38.5 hp
    GradeCommercial
    Deck Size72 in
    Starting SystemElectric Start
    Cylinder Displacement999cc
    Fuel Tank Volume11 Gallons
    Engine Type4-Stroke
    Oil FilterYes
    # of Cylinders2
    Engine CoolingAir
    Transmission ModelDual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
    Speed Forward (mph)0 - 12MPH
    Speed Reverse (mph)0 - 5MPH
    Tire Size Front13 x 6.5 - 6

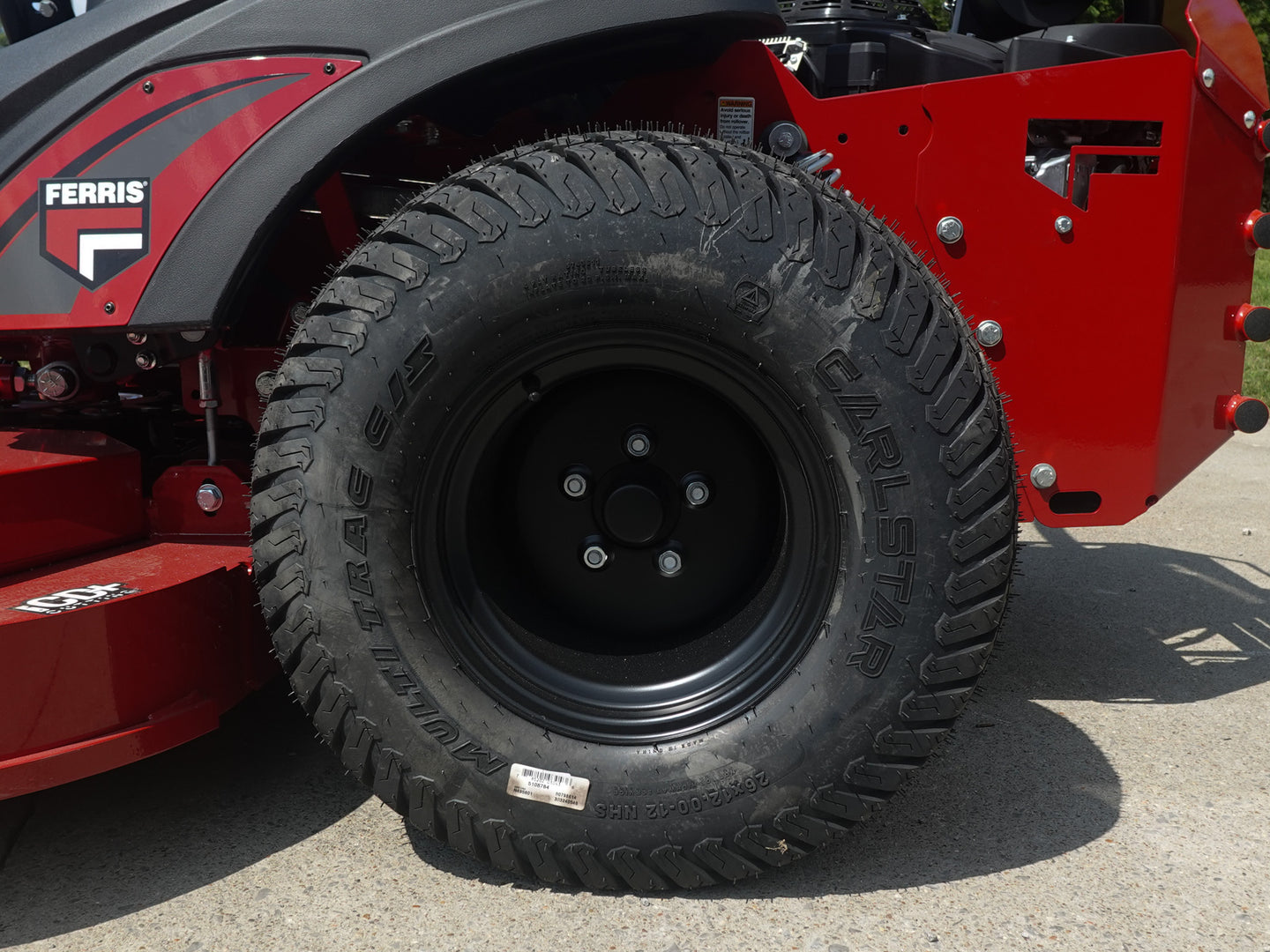

    Tire Size Rear26 x 12 - 12
    Cutting Deck TypeFabricated
    Spindle MaterialCast Iron
    Greaseable SpindleYes
    Blades3
    Cutting Height1.5" - 5"
    Blade EngagementElectric
    Seat TypeSuspension
    Arm RestYes
    Length84.5"

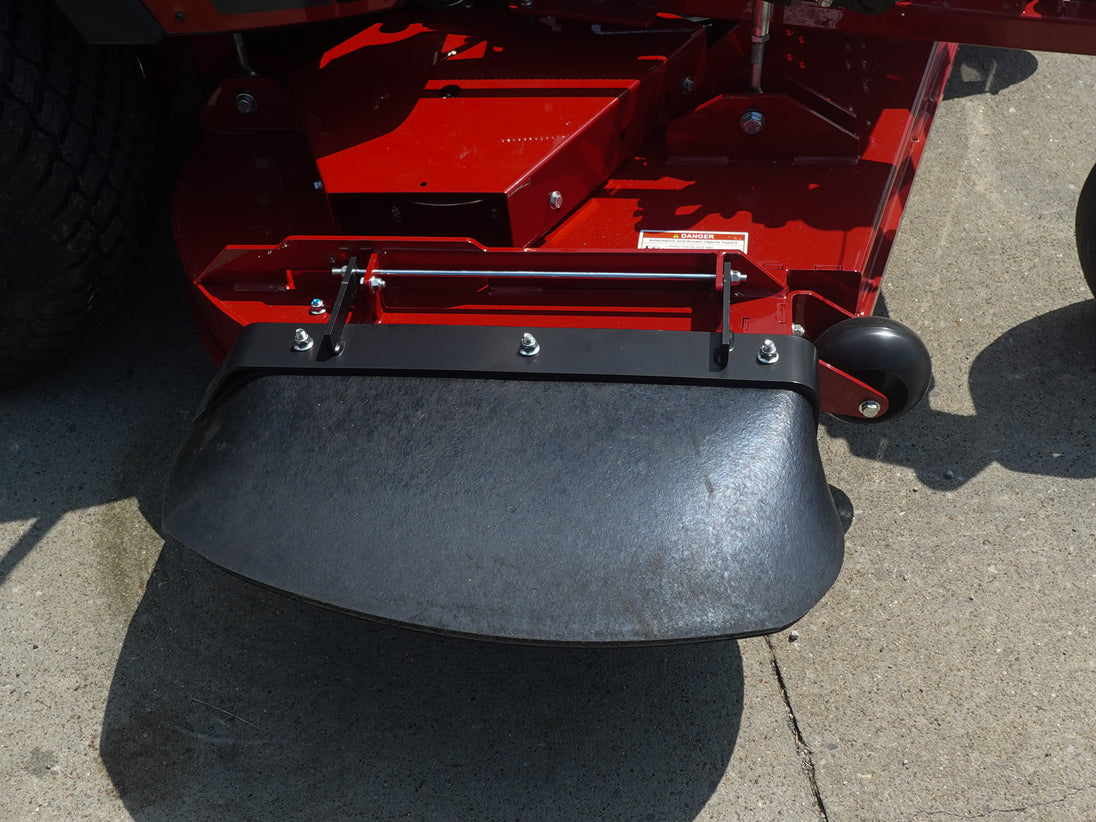

    Width86" (Chute Down) / 74" (Chute Up)
    Height72"
    WarrantyBalance of machine: 2 years unlimited hours or 4 years / 500 hours, whichever occurs first. Suspension: 10-year limited warranty. Engine: see the Kawasaki engine operator's manual.
    Other

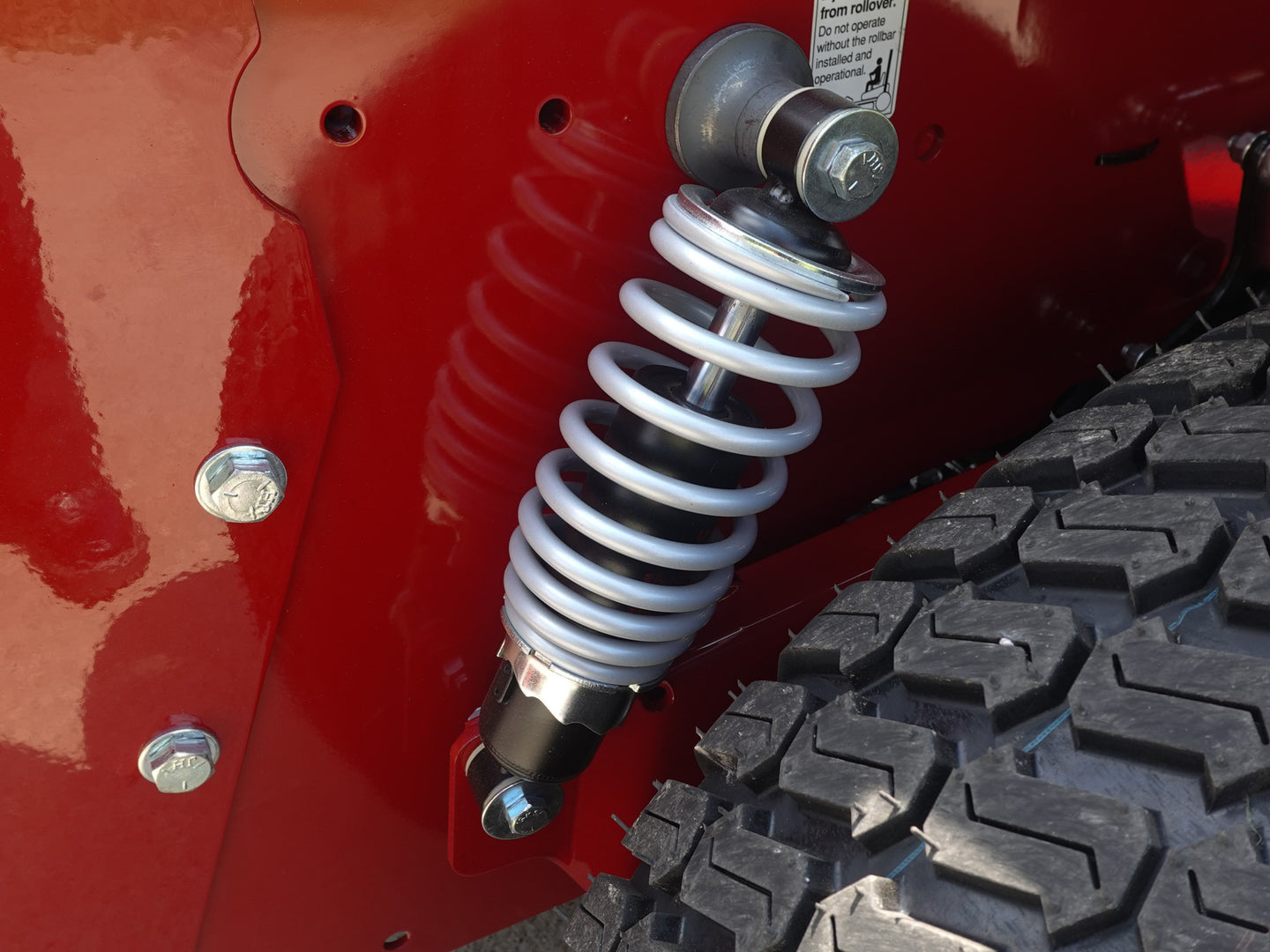

    • Suspension: ForeFront front suspension, swing-arm rear suspension
    • Parking Brake: Hand-operated internal transaxle brake
    • Overall Width (Deflector Up): 74 in
    • Dry Weight: 1,579 lb
    • Roll-Over Protection: Certified, 158° foldable
    • Instrumentation: Dual-function hour meter, fuel level gauge in tank
    • Safety Controls: Seat-activated engine kill, clutch safety switch, neutral and parking brake safety circuit
    • Charging Ports: USB Type A and Type C
