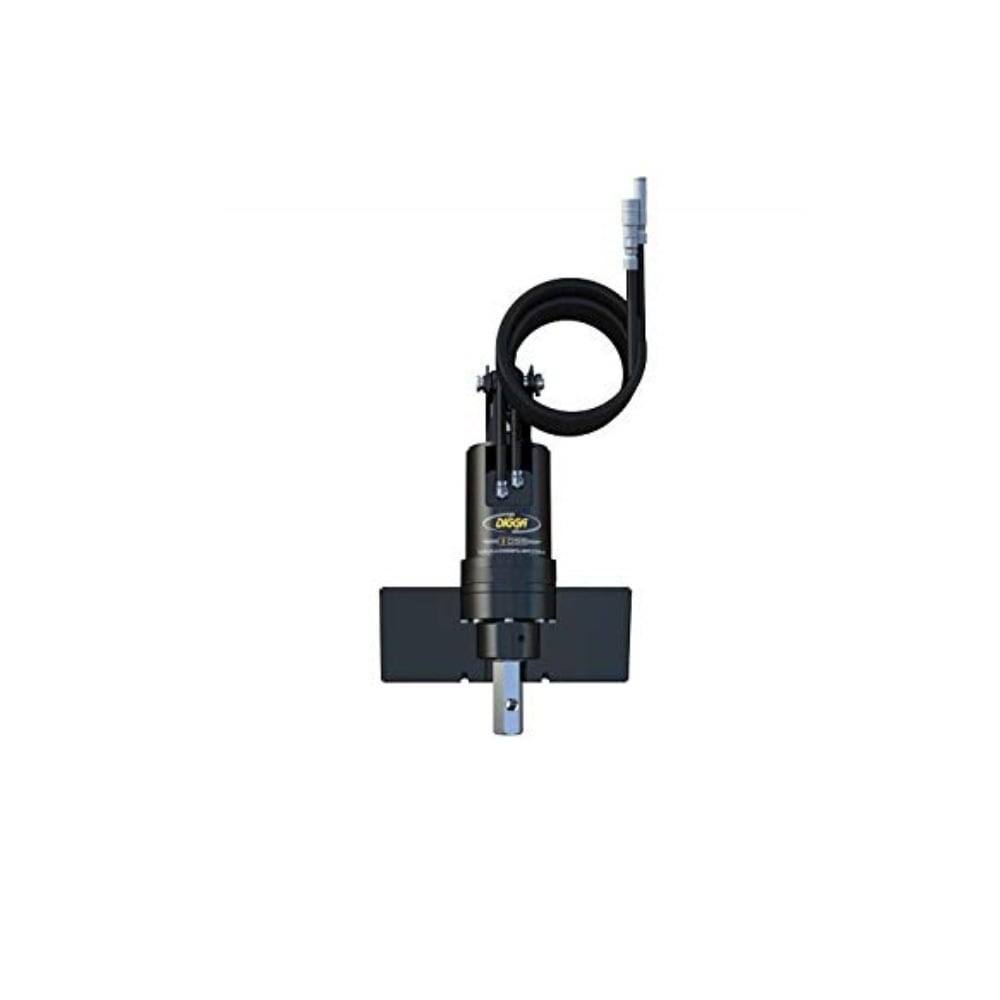

Digga 5DDS Auger Drive High Flow Drive w/ 2.5" HEX Shaft

Digga 5DDS/5DDS-11 Auger Drive

Auger Drive Only

Features:

• Compact high torque Digga manufactured gearbox
• Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky valve blocks while reducing many potential leak points
• 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
• Single speed & two speed models available
• Lifetime shaft pull out warranty
• 5 year gear box and 3 year motor warranty
• Over 30 years design and manufacturing experience
• Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve

Specifications:

• Torque (FT-LBS @ 3000 PSI: 3,903
• Max Torque FT-LBS @ 3500 PSI: 4,553
• Recommended Flow (GPM): 10-36
• Motor Type: EATON
• Max Pressure - Do Not Exceed: 3500 PSI @ 27 GPM
• Max Flow - Do Not Exceed: 55 GPM @ 1700 PSI
• Max Horse Power: 55
• Standard Output Shaft: 2.5" HEX
• Recommended Auger: A6 / RC6
• Max Drilling Diameter (Clay/Shale): 24"
• Max Drilling Diameter (Earth): 40"
• Weight (LBS): 290
• Overall Length (INDIAMETER (IN): 7.4): 33.7"
• Diameter (IN):11.4"
