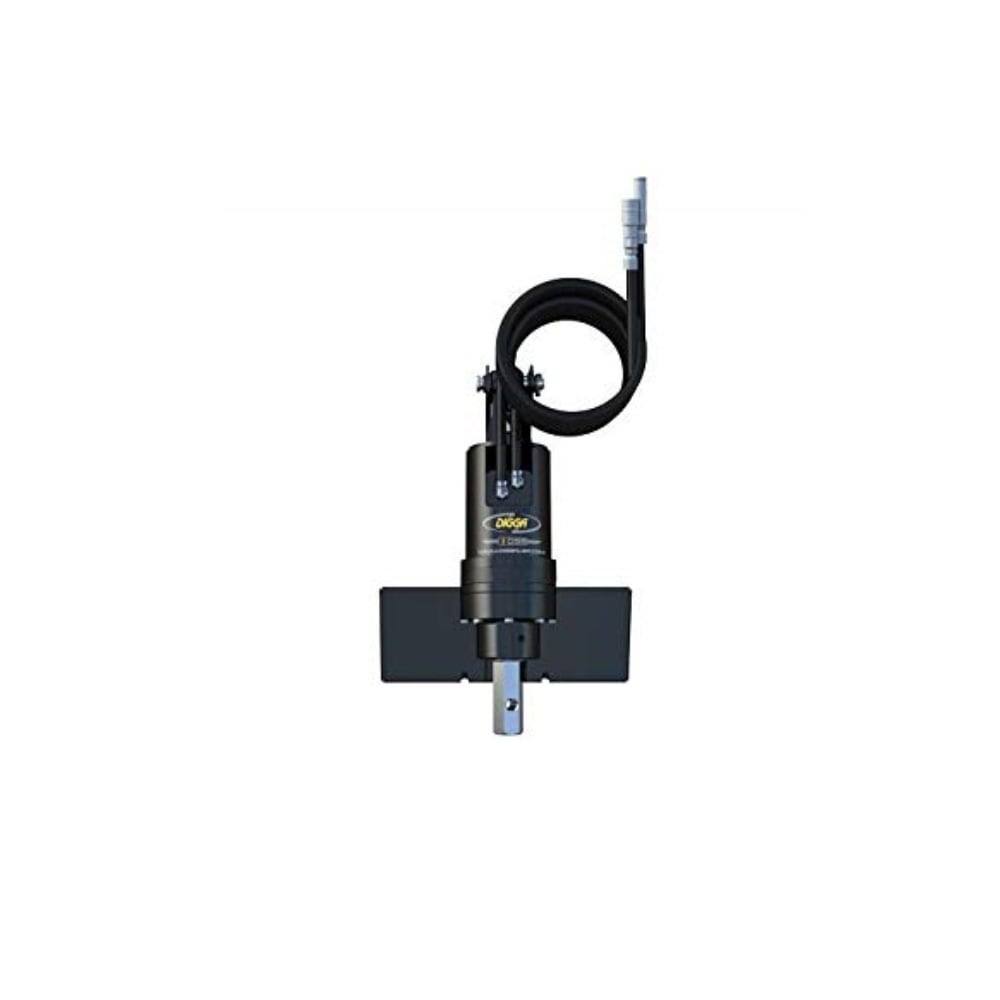

Digga 30DDS/30DDS-7 Auger Drive High Flow Drive w/ 100MM Square Shaft
Single Speed for 3500 PSI Rated Machines
Features:
- Compact high torque Digga manufactured gearbox
- Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky valve blocks while reducing many potential leak points
- 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
- Lifetime shaft pull out warranty
- 5 year gear box and 3 year motor warranty
- Over 30 years design and manufacturing experience
- Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'
Specifications:
- Torque (FT-LBS @ 3000 PSI: 30,771
- Recommended Flow (GPM): 26-60
- Motor Type: EATON
- Max Pressure - Do Not Exceed: 3500 PSI @ 33 GPM
- Max Flow - Do Not Exceed: 61 GPM @ 1800 PSI
- Max Horse Power: 67
- Standard Output Shaft: 100 MM SQUARE
- Recommended Auger: RC10 / RC11
- Max Drilling Diameter (Clay/Shale): 60"
- Max Drilling Diameter (Earth): 78"
- Weight (LBS): 640
- Overall Length (INDIAMETER (IN): 7.4): 45.3"
- Diameter (IN): 14"
