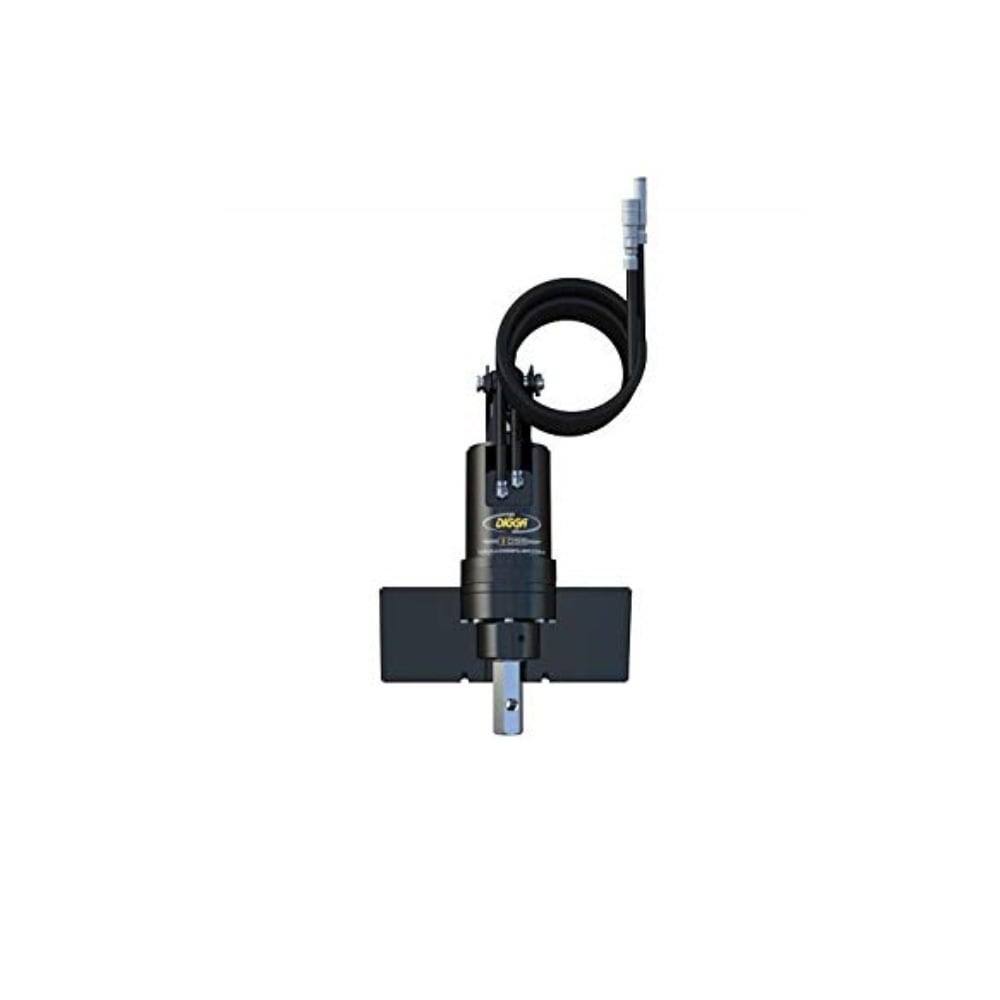

Digga 2DSS/2DSS-3-ML Auger Drive
Auger Drives & Mount Package
Features:
- Compact Digga manufactured gearbox
- Digga designed Eaton motor with optional integrated pressure relief valve to eliminate the need for bulky valve blocks and reduce many potential leak points
- 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
- Lifetime shaft pull out warranty
- 5 year gear box and 3 year motor warranty
- Over 30 years design and manufacturing experience
- Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'
Specifications:
- Torque (FT-LBS @ 3000 PSI: 2,254
- Max Torque FT-LBS @ 3500 PSI: 2,630
- Recommended Flow (GPM): 10-26
- Motor Type: Eaton
- Max Pressure - Do Not Exceed: 3500 PSI @ 16 GPM
- Max Flow - Do Not Exceed: 30 GPM @ 1800 PSI
- Max Horse Power: 33
- Standard Output Shaft: 2" Hex
- Recommended Auger: A4 / RC4
- Max Drilling Diameter (Clay / Shale): 24"
- Max Drilling Diameter (Earth): 30"
- Weight (LBS): 123
- Overall Length (INDIAMETER (IN): 7.4)25.9"
- Diameter (IN) 9.4"
