The Digga 1MDS4-22-ML range of drilling drives for 0.85 ton to 1 ton mini loaders is the ultimate in performance, quality and cost effectiveness.

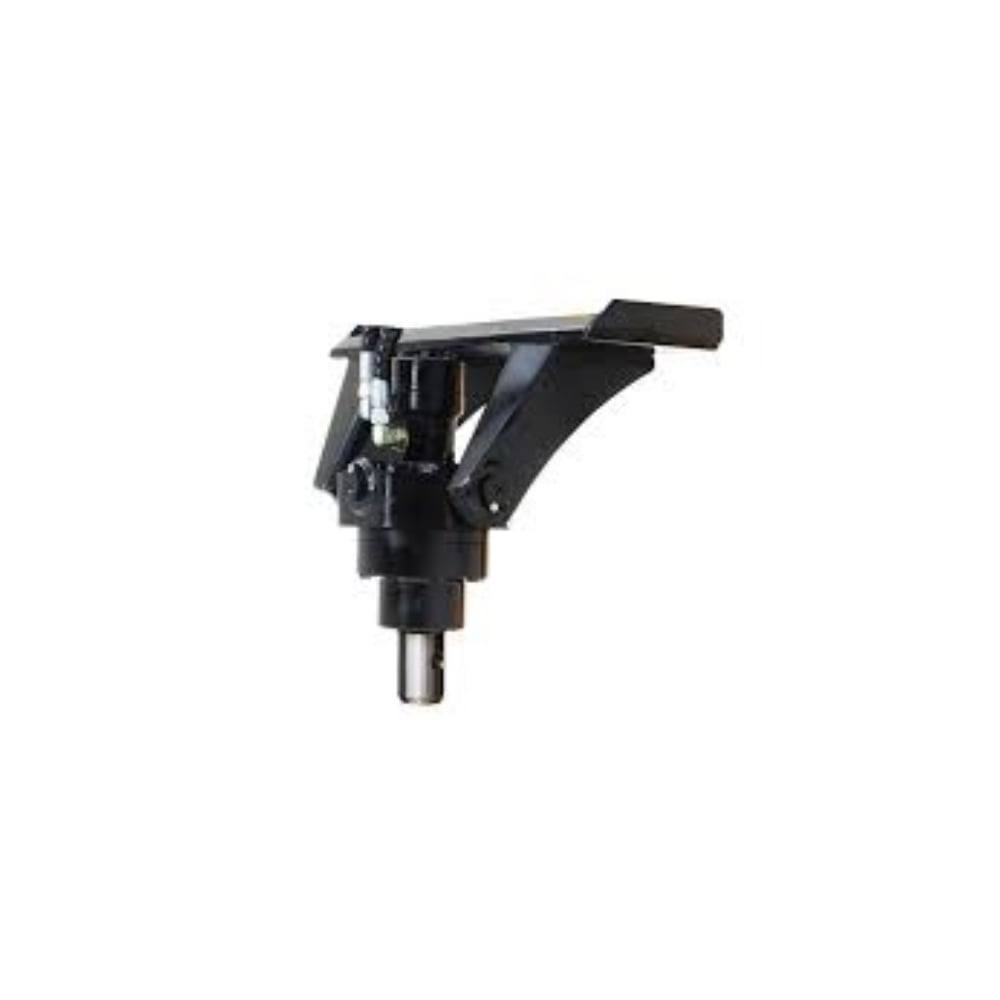

Digga 1MDS4/1MDS4-3-ML Auger Drive
Features:
- Compact Digga manufactured gearbox
- Fitted with a Digga designed Eaton motor
- 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
- Lifetime shaft pull out warranty
- 5 year gear box and 3 year motor warranty
- Over 30 years design and manufacturing experience
Specifications:
- Torque: (FT-LBS @ 3000 PSI) 2,119
- Max Torque: (FT-LBS @ 3500 PSI) N / A
- Recommended Flow: (GPM) 6-16
- Motor Type: Eaton
- Max Pressure: (Do Not Exceed) 3000 PSI @ 11 GPM
- Max Flow: (Do Not Exceed) 15 GPM @ 2300 PSI
- Max Horse Power: 20
- Pressure Relief Valve: Optional
- Standard Output Shaft: 2" Hex
- Recommended Auger: A4 / RC4
- Max Drilling Diameter: (Clay / Shale)* 12"
- Max Drilling Diameter: (Earth)* 24"
- Weight: (LBS) 72
- Overall Length (IN): 16.6"
- Diameter (IN): 8"
