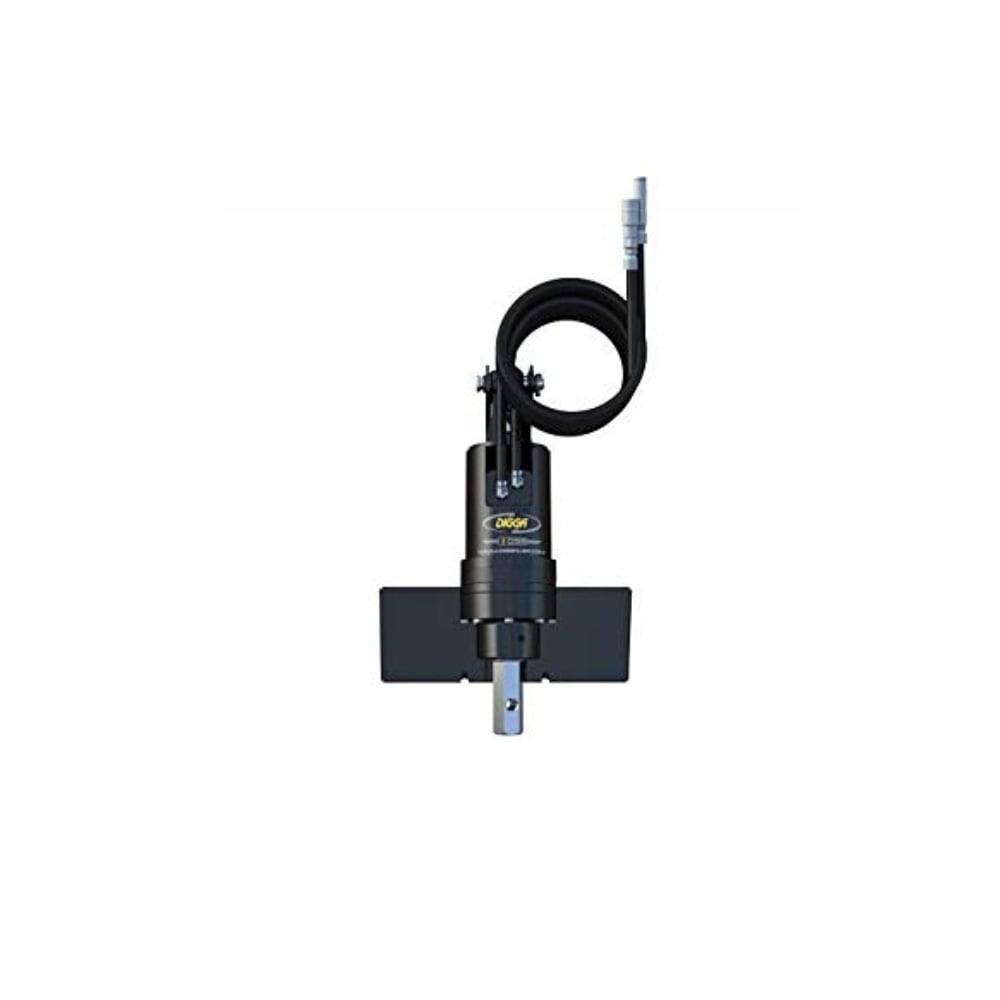

Digga 1DSS/1DSS-3-hx Auger Drive STD Flow Drive w/ 2" HEX Shaft
Auger Drive with Hoses No Mount/Single Speed
Features:
- Compact Digga manufactured gearbox
- Digga designed Eaton motor with optional integrated pressure relief valve to eliminate the need for bulky valve blocks and reduce many potential leak points
- 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
- Lifetime shaft pull out warranty
- 5 year gear box and 3 year motor warranty
- Over 30 years design and manufacturing experience
- Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'
Specifications:
- Torque (FT-LBS @ 3000 PSI: 1,467
- Max Torque FT-LBS @ 3500 PSI: 1,712
- Recommended Flow (GPM): 6-16
- Motor Type: EATON
- Max Pressure - Do Not Exceed: 3500 PSI @ 16 GPM
- Max Flow - Do Not Exceed: 30 GPM @ 1800 PSI
- Max Horse Power: 33
- Standard Output Shaft: 2" HEX
- Recommended Auger: A4 / RC4
- Max Drilling Diameter (Clay/Shale): 12"
- Max Drilling Diameter (Earth): 24"
- Weight (LBS): 101
- Overall Length (IN) 24.5''
- Diameter (IN): 7.4"
