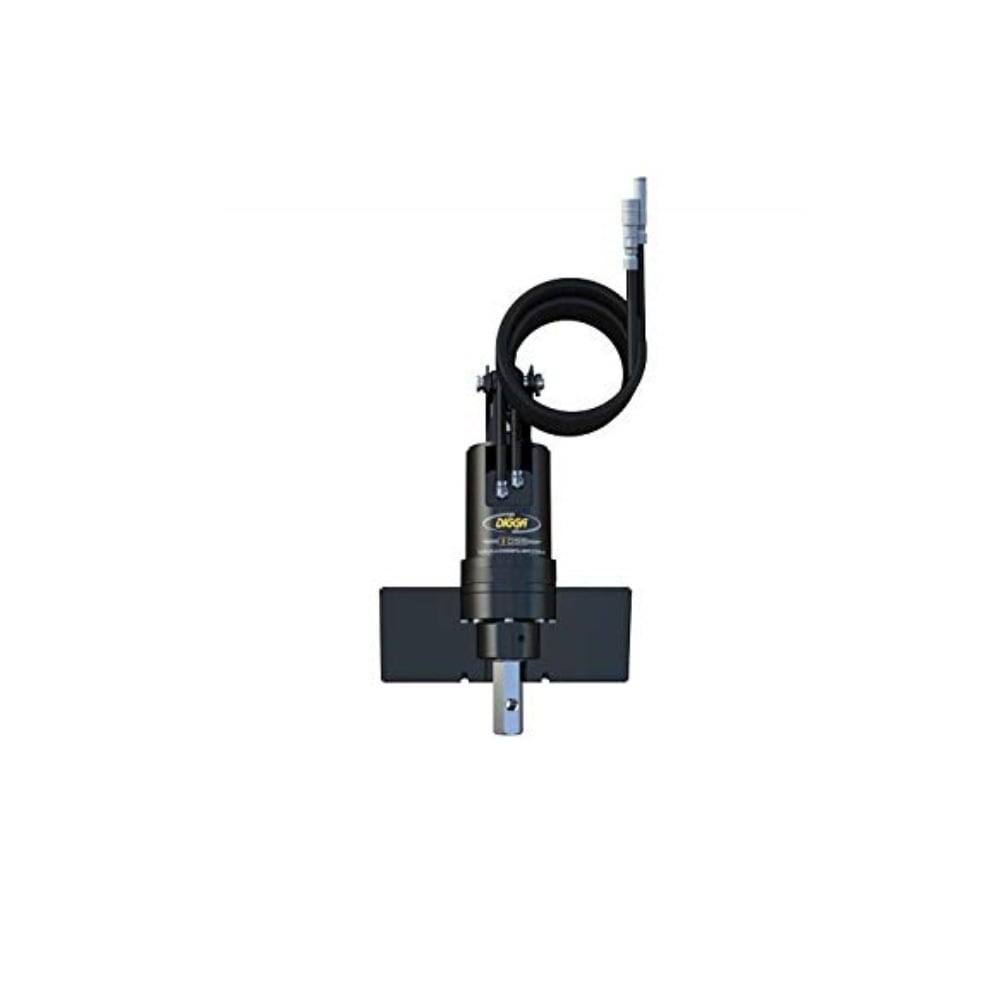

Digga 12DDT/12DDT-11 Auger Drive High Flow Drive w/ 2.5" HEX Shaft
Two Speed for 3500 PSI Rated Machines
Features:
- Compact high torque Digga manufactured gearbox
- Highly efficient design with less moving parts
- Fitted with Eaton VIS motor
- Integrated PRV (Pressure Relief Valve)
- Extreme duty shaft locking system
- Drive fits down the hole for greater digging depth
- Low maintenance with 5yr gear box and 3yr motor warranty
Specifications:
- Torque (FT-LBS @ 3000 PSI: 10,310
- Max Torque FT-LBS @ 3500 PSI: 12,028
- Recommended Flow (GPM): 10-46
- Motor Type: EATON
- Max Pressure - Do Not Exceed: 3500 PSI @ 29 GPM
- Max Flow - Do Not Exceed: 53 GPM @ 1950 PSI
- Max Horse Power: 60
- Standard Output Shaft: 2.5" HEX
- Recommended Auger: A8 / RC8
- Max Drilling Diameter (Clay/Shale): 36"
- Max Drilling Diameter (Earth): 48"
- Weight (LBS): 376
- Overall Length (INDIAMETER (IN): 7.4): 35.7"
- Diameter (IN): 14.4"
