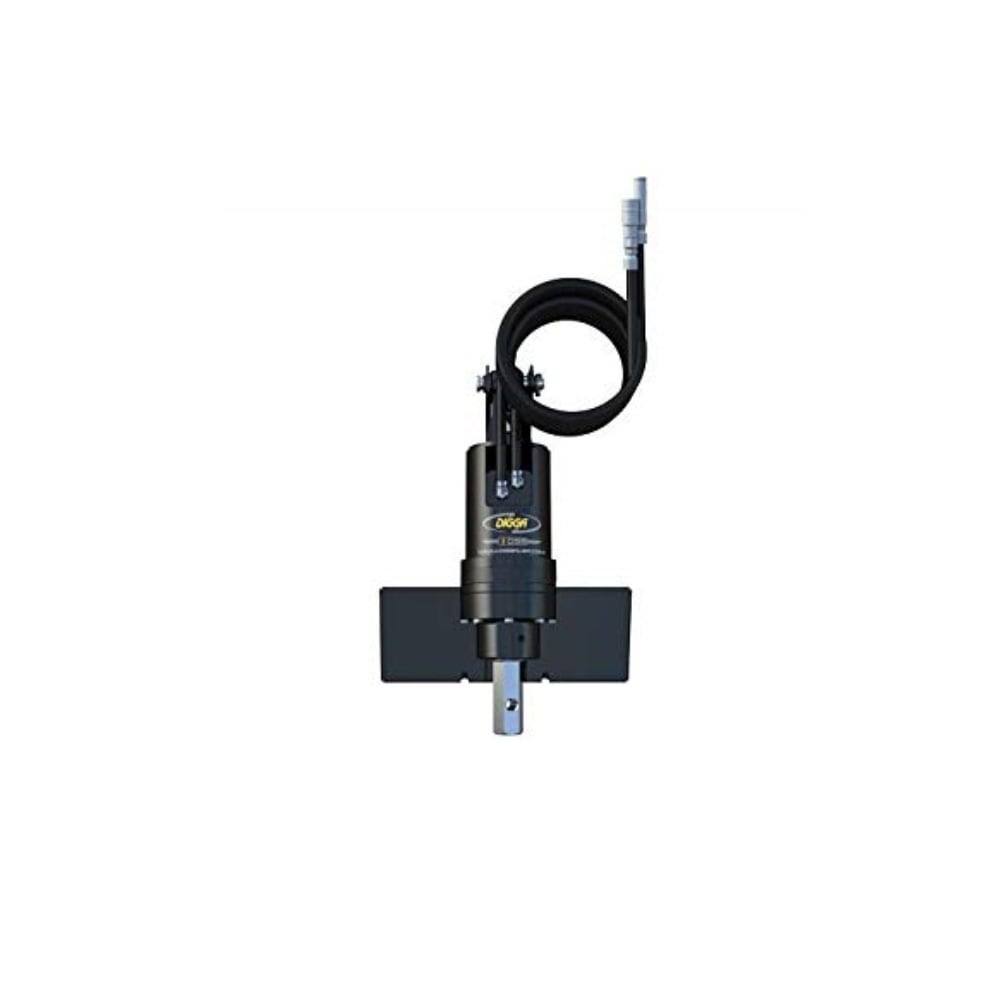

Digga 12DDS/12DDS-11 Auger Drive High Flow Drive w/ 2.5" HEX Shaft
Single Speed for 3500 PSI Rated Machines
Features:
- Compact high torque Digga manufactured gearbox
- Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky valve blocks while reducing many potential leak points
- 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
- Lifetime shaft pull out warranty
- 5 year gear box and 3 year motor warranty
- Over 30 years design and manufacturing experience
- Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'
Specifications:
- Torque (FT-LBS @ 3000 PSI: 9,893
- Max Torque FT-LBS @ 3500 PSI: 11,542
- Recommended Flow (GPM): 22-48
- Motor Type: EATON
- Max Pressure - Do Not Exceed: 3500 PSI @ 29 GPM
- Max Flow - Do Not Exceed: 55 GPM @ 1800 PSI
- Standard Output Shaft: 2.5" HEX
- Recommended Auger: A8 / RC8
- Max Drilling Diameter (Clay/Shale): 36"
- Max Drilling Diameter (Earth): 48"
- Weight (LBS): 350
- Overall Length (INDIAMETER (IN): 7.4): 37.2"
- Diameter (IN): 11.4"
