Briggs & Stratton Power Products Group

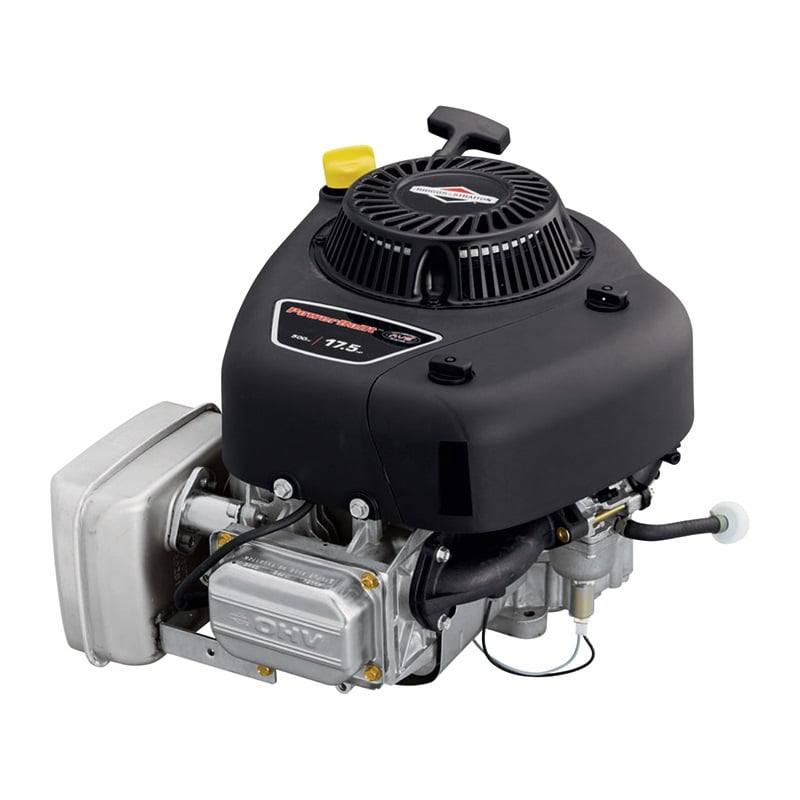

Briggs & Stratton Powerbuilt Engine 17.5 HP 31R976-0016

SKU 31R976-0016
$111,111.00

Briggs & Stratton Powerbuilt OHV 500cc replacement engine with a vertical shaft measuring 1 in. x 3-5/32 in.

Product Description

 Features

  • Dura-Bore cast iron cylinder sleeve for extended life.
  • Exhaust Included
  • Overhead valve design (OHV) for cooler operation and longer valve life.
  • Full Pressure Lubrication with oil Filter
  • 9 amp charging system

Specs

Brand Briggs & Stratton
Part # 31R976-0016
Shipping Weight 81 lbs.
Crankshaft Diameter 1"
Crankshaft Length 3-5/32"
Starter Type Recoil
Max RPM 3,300
Carburetor Type Float
Displacement 500cc
Ignition System Electronic
Lubrication System Splash
Oil Capacity 1.5 qt.
Fuel Type Gasoline
Governor System Mechanical
Cooling System Air
Compression Release Yes
Gross Horse Power 17.5
Low Oil Alert No
Oil Filter Yes
Bolt Circle (in.) 10
Cylinders 1
Cylinder Bore Cast Iron
Bore x Stroke 3.56" x 3.06"
Crankshaft Orientation Vertical
For Use in California Yes
Fuel Tank Capacity Tank Not Included

More Information

Manufacturer: Briggs & Stratton Power Products Group
MPN: 31R976-0016-G1
ConditionNew
Shipping OptionsStandard Delivery
Engine CoolingAir
Engine Size17.5 hp
Engine Type4-Stroke
# of Cylinders1
Shaft Length3-5/32"
Shaft PositionVertical
Shaft Width1"
Starting SystemRecoil Start
Warranty2 Years Consumer/ 1 Year Commercial
