Briggs & Stratton Power Products Group

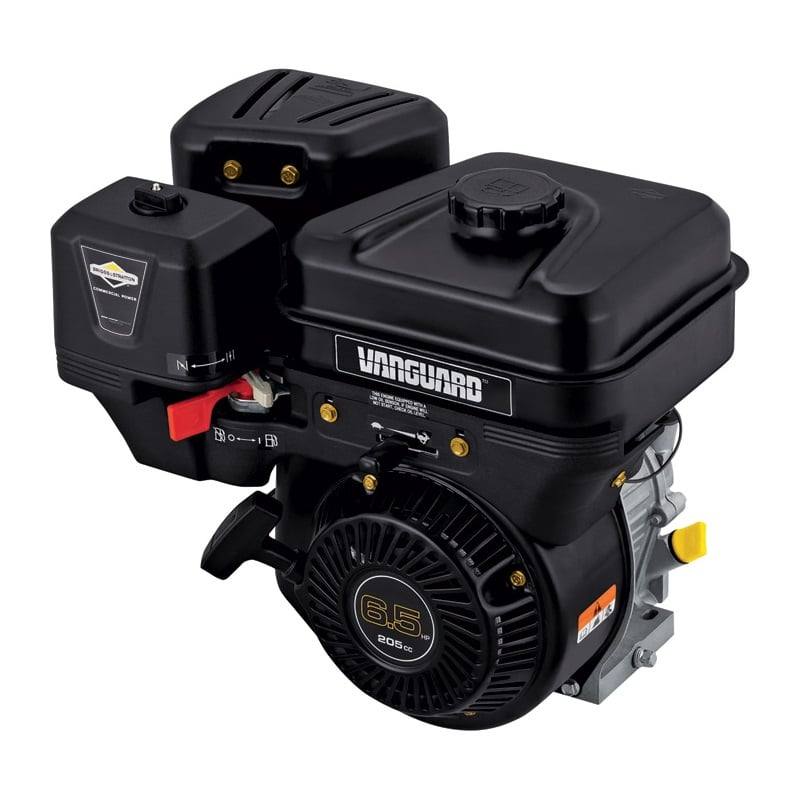

Briggs Engine 6:1 Gear Reduction Horizontal 205cc 12S352-0049

SKU 12S352-0049
$111,111.00

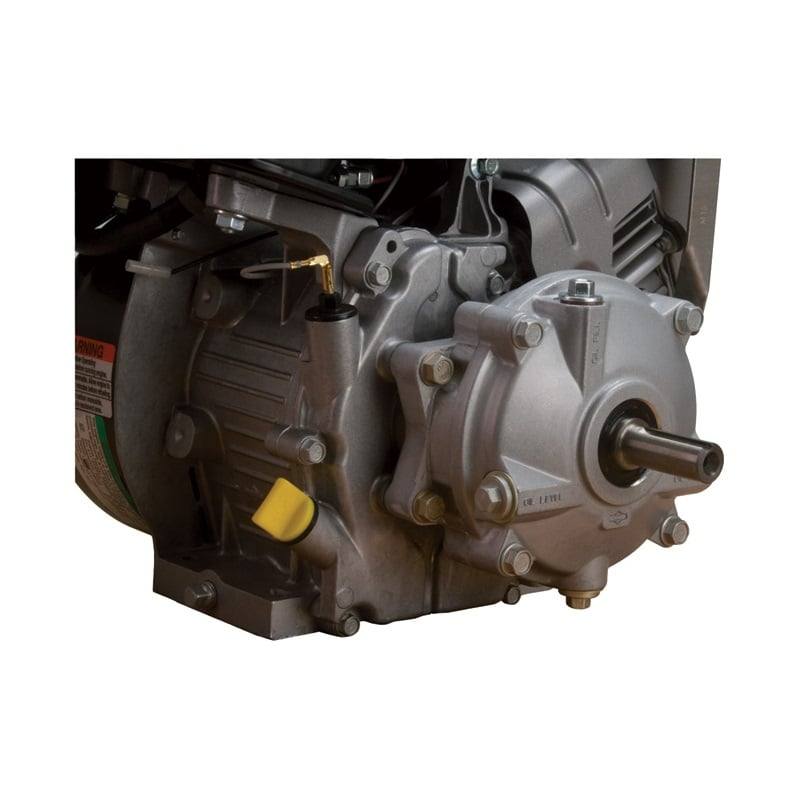

Briggs & Stratton 205cc replacement engine with 6:1 gear reduction, a horizontal shaft measuring 3/4 in. x 2 in. and 8 gross torque.

Product Description

 Features



  • Overhead valve design (OHV) for cooler operation and longer valve life.
  • Transpot Guard eliminates oil dilution
  • PTO and Mag Ball Bearing
  • Dual Clean air cleaner pleated paper filter with a foam pre-cleanerto ensure maximum protection for extended engine life.
  • Equipped with Run Sense low oil sensor
  • Dura-Bore cast iron cylinder sleeve for extended life.

Specs

Brand Briggs & Stratton
Part # 12S352-0049-F8
Shipping Weight 45 lbs.
Crankshaft Diameter 3/4"
Crankshaft Length 2"
Starter Type Recoil
Max RPM 3,600
Carburetor Type Float
Displacement 205cc
Ignition System Electronic
Lubrication System Splash
Oil Capacity 0.625 qt.
Fuel Type Gasoline
Governor System Mechanical
Cooling System Air
Compression Release Yes
Gross Torque (ft./lbs) 8 Gross Torque
Low Oil Alert Yes
Oil Filter No
Bolt Circle (in.) 3 5/8
Cylinders 1
Cylinder Bore Cast Iron
Bore x Stroke 2.68" x 2.20"
Crankshaft Orientation Horizontal
For Use in California Yes
Fuel Tank Capacity 3 qt.

More Information

Manufacturer: Briggs & Stratton Power Products Group
MPN: 12S452-0049-F8
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume0.625 qt.
Engine CoolingAir
Engine Size6.5hp
Engine Type4-Stroke
# of Cylinders1
Shaft Length2"
Shaft PositionHorizontal
Shaft Width3/4"
Starting SystemRecoil Start
Warranty2 Years Consumer Limited
