Product Description

Standard Equipment:

  • Upgraded front and rear seat cushions as well as a front seat backrest pad featuring refined stitching and custom embossing of the ARGO logo

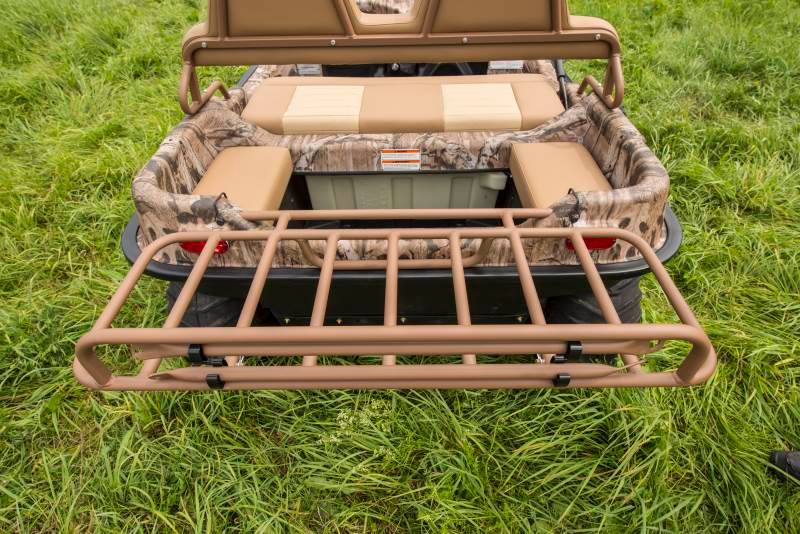

  • 2-position, fold down rack for extra cargo storage

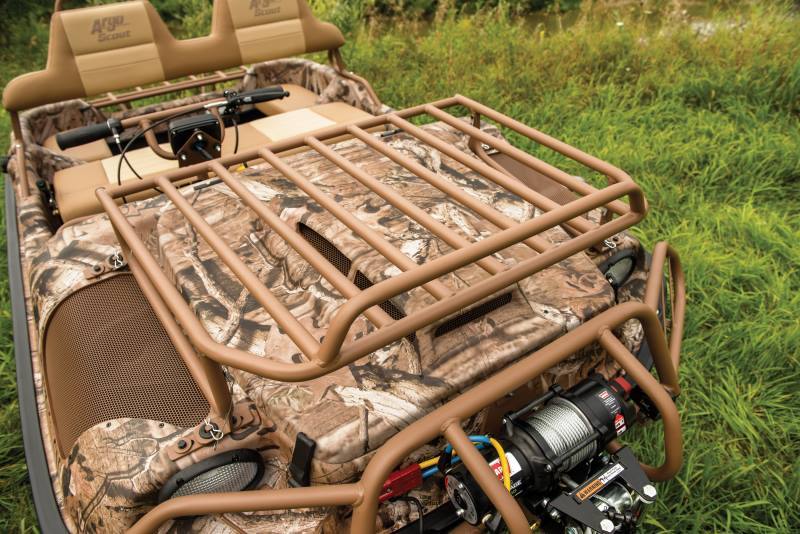

  • Removable Hood rack capable of carrying cargo and small game out of the bush
  • Enhanced brushguard provides outstanding protection for the front end of the vehicle, absorbing impacts from off-road hazards such as brush, branches, and more

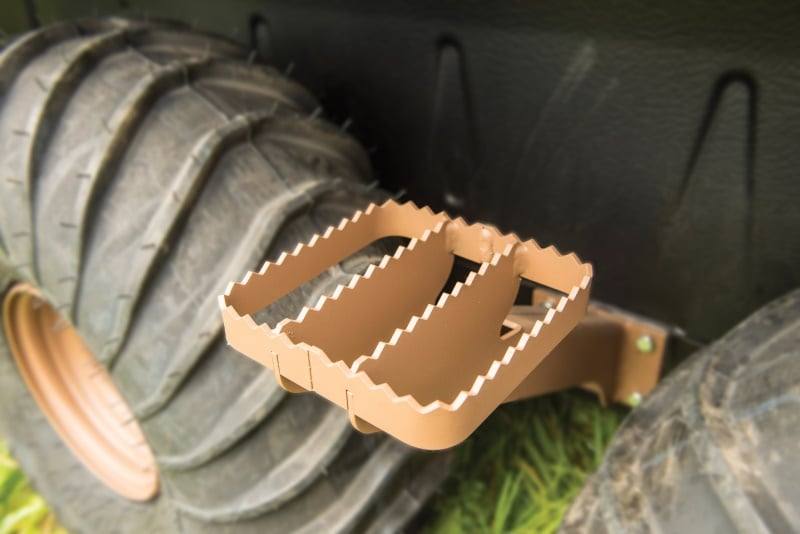

  • Entry steps to assist in vehicle entry and exit when out fitted with gear, backpack and guns
  • USB power outlet, for riders to charge their phones, play digital media and utilize their GPS
  • Enhanced lighting package featuring dual high powered floodlights

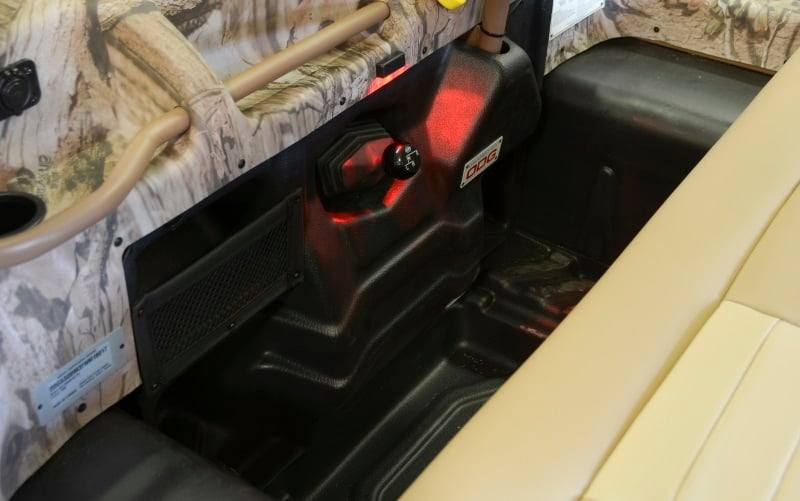

  • Interior lighting package to illuminate front driving area and vehicle console
  • Bilge pump
  • WARN power winch

Features:

  • 6-wheel traction with low center of gravity for extra stability
  • Proven, state-of-the-art automatic continuously variable transmission with high and low range forward and reverse
  • Electronic ignition
  • Self-adjusting hydraulic brakes with vented discs
  • Low emissions
  • 3-year limited engine warranty
  • Kohler Command Pro Engine with 19 or 23 HP dependant on engine selection per SAE J1940
  • Air cooled
  • Hydraulic brakes
  • Controls - Right-hand twist grip throttle. Light switch and ignition switch.
  • Clutch - Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
  • Roller chains drive machined sprockets that are spline-fit onto 1 1/4" diameter axles. Bearings are greaseable.
  • Planetary differential transmission with High and Low range; Forward, Neutral, Reverse.
  • Vacuum formed High Molecular Weight Polyethylene Body

More Information

Manufacturer: Argo-Ontario Drive and Gear
MPN: Scout
ConditionNew
Shipping OptionsStandard Delivery
Engine ManufacturerKohler
Engine Size23hp
Engine Type4-Stroke
Ground Clearance10.5 inches - 265 mm (Tracks) / 9.5 inches - 240 mm (Tires)
Drive System6 wheel drive
Load Capacity500 lbs
Frame TypeFormed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection.

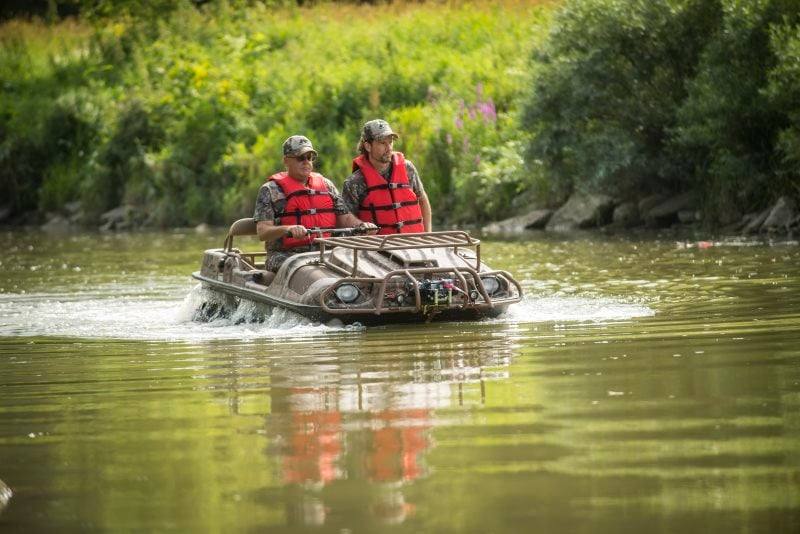

Operation ConditionsLand / Water
Speed Forward (mph)17
SteeringOne-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles.
Tire SizeARGO AT189 24 x 10.00-8NHS
Towing Capacity1200 lbs
