    Product Description

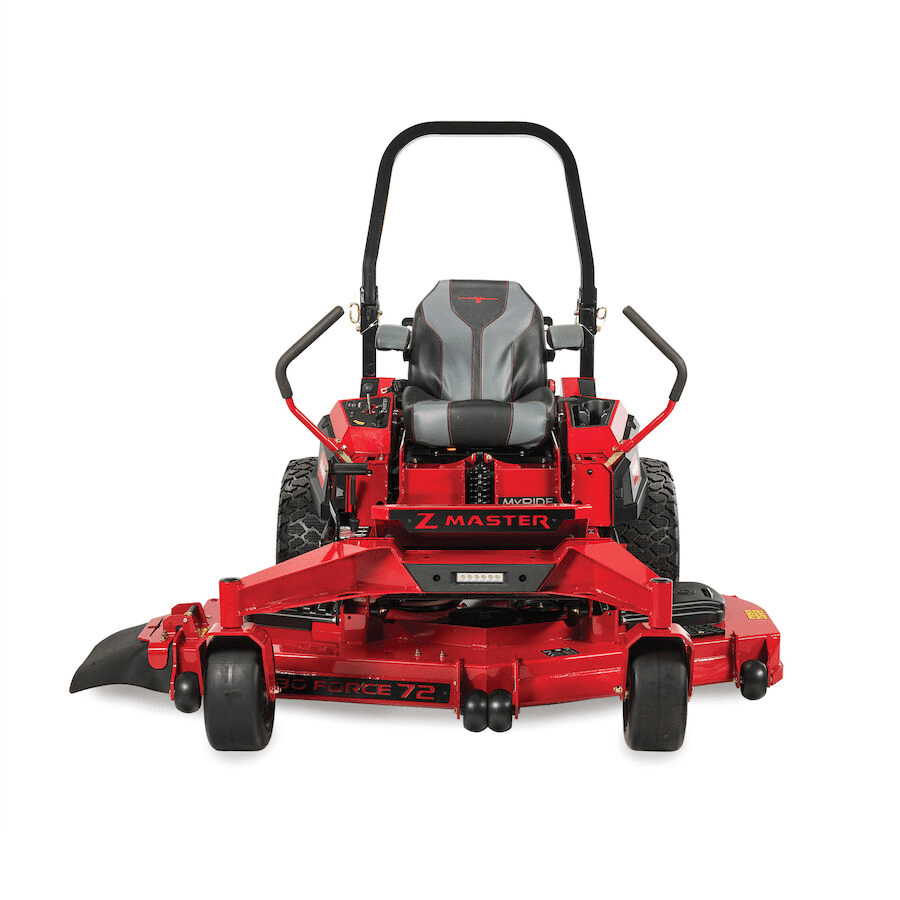

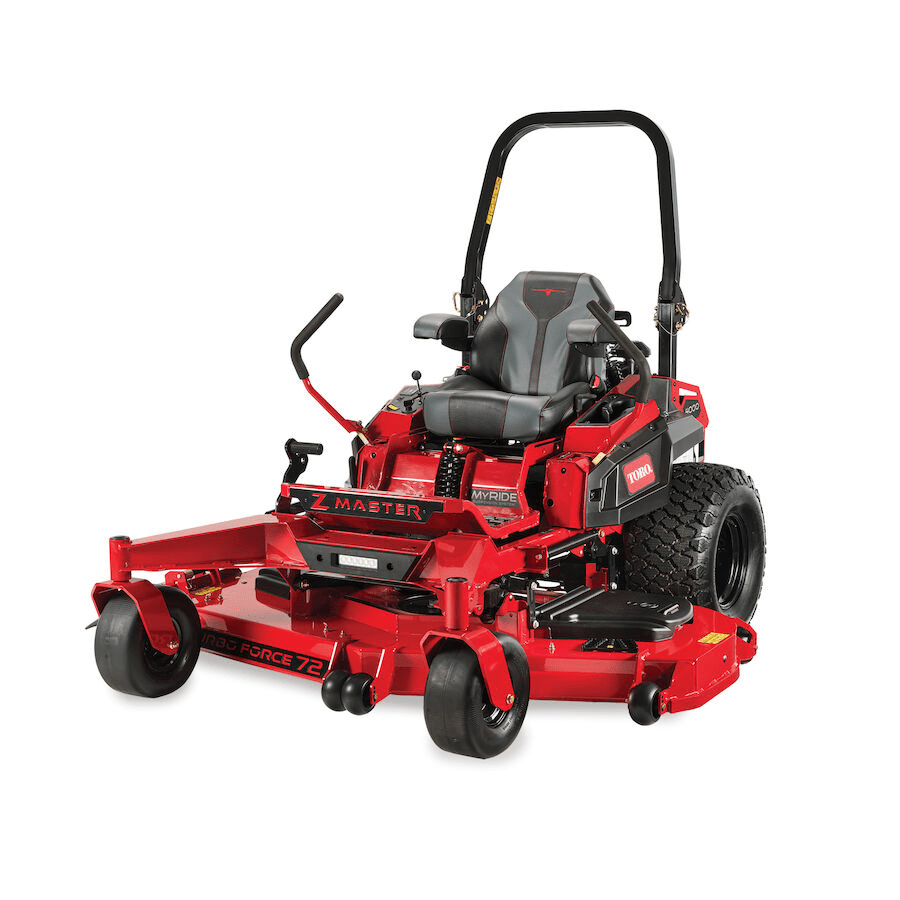

    Toro Z Master 4000 HDX 74024 72" Commercial Zero Turn

    The Toro Z Master 4000 HDX Pro XL 74024 pairs a 72" TURBO FORCE deck with a 35 HP Kawasaki FX1000V engine for crews that cover big acreage every day. The MyRIDE suspension, 26" Voodoo Trac tires and 12 mph top speed keep it comfortable and productive from the first property to the last.

    Features:

    • 35 HP Kawasaki FX1000V: 999cc twin-cylinder commercial engine with a heavy-duty Donaldson canister air cleaner that protects it in dusty conditions.
    • 72" TURBO FORCE Deck: Fabricated 7-gauge steel deck with a bull-nose bumper and rubber discharge chute delivers a clean, even cut on large properties.
    • MyRIDE Suspension System: Toro's suspension system absorbs bumps and vibration, so long days on rough ground are easier on the operator.
    • Deluxe Suspension Seat: Handcrafted deluxe suspension seat with armrests reduces fatigue on long mowing days.
    • ZT-5400 Integrated Transmissions: Heavy-duty integrated pumps and wheel motors drive the mower at ground speeds up to 12 mph.
    • 26" Voodoo Trac Rear Tires: Wide 26 x 12-12 drive tires add traction and stability on hills and wet turf, with 15" flat-free front casters.
    • Foot-Operated Deck Lift: Set the cutting height from 1.5" to 5.5" in 0.25" steps without leaving the seat.
    • Maintenance-Free Spindles: 9" cast aluminum spindle housings with sealed bearings need no greasing.
    • Folding ROPS: Rollover protection folds down for trailers and storage and locks upright for slopes.
    • Operator Conveniences: USB charging ports, a phone holder, a cup holder and an hour meter are all within reach.
    • 10-Gallon Fuel Tank: Large tank keeps the mower running longer between fill-ups.

    More Information

    Manufacturer: Toro Company
    MPN: 74024
    ConditionNew
    Shipping OptionsStore Pickup / Delivery Only Call For Price
    Engine ManufacturerKawasaki
    Engine Size35hp
    GradeCommercial
    Deck Size72 in
    Starting SystemElectric Start
    Cylinder Displacement999 cc
    Fuel Tank Volume10 Gallons
    Engine Type4-Stroke
    Air FilterHeavy-Duty Donaldson Canister Style Air Cleaner
    Oil FilterYes
    # of Cylinders2
    Engine CoolingAir
    Drive SystemIntegrated pumps and wheel motors
    Transmission ModelZT-5400 Integrated Pumps & Wheel Motors
    Speed Forward (mph)0-12 MPH
    Tire Size Front15 x 6.5 - 6
    Tire Size Rear26 x 12 - 12
    Deck Thickness7 gauge
    Cutting Deck TypeFabricated
    Spindle MaterialAluminum
    Greaseable SpindleNo
    Blade Tip Speed18,500 ft/min
    Cutting Height1.5" - 5.5"
    Blade EngagementElectric
    Seat TypeSuspension
    Arm RestYes
    Warranty5 Year / 1,500 Hour Limited (Engine: 3 Year)
