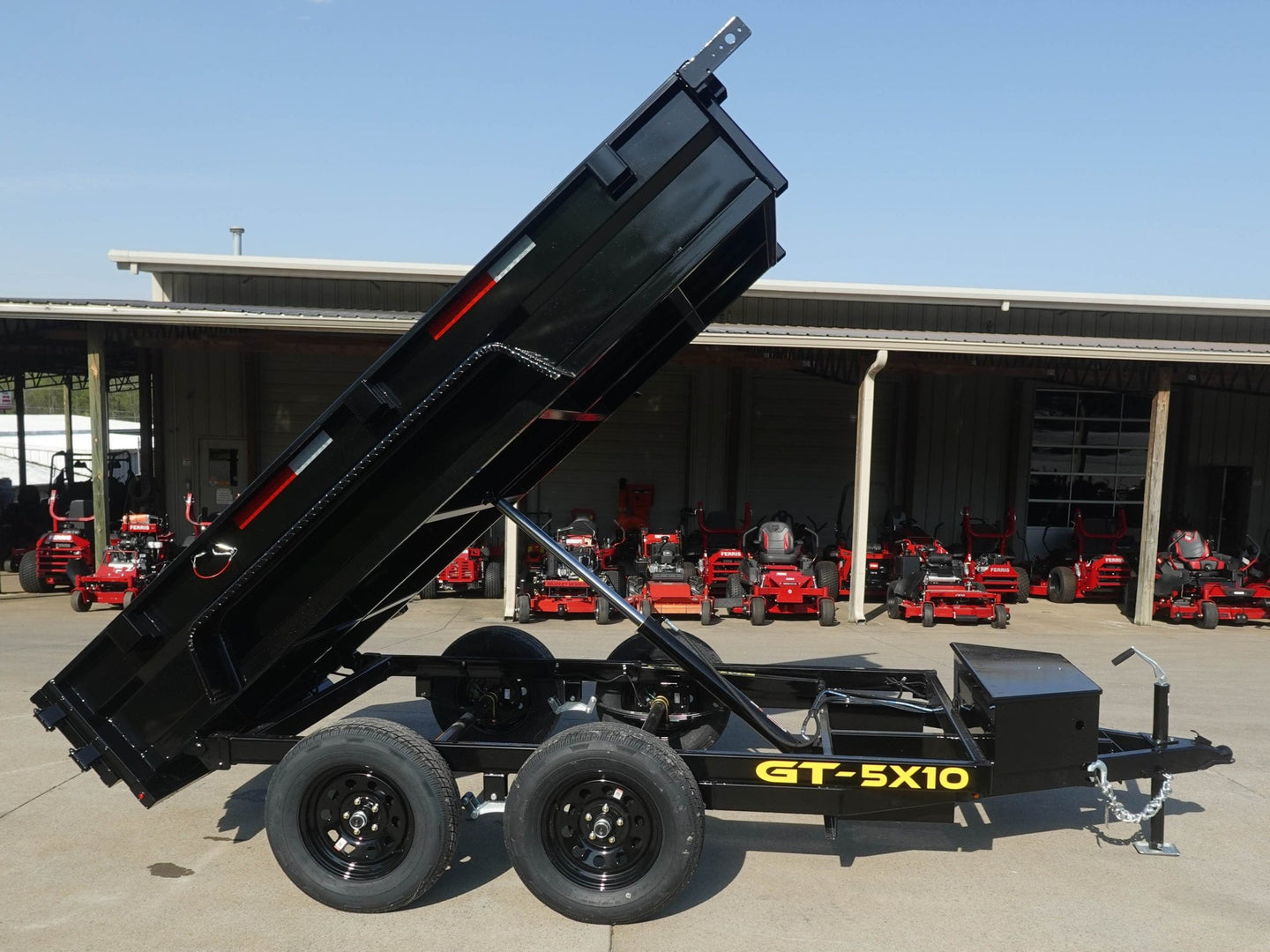

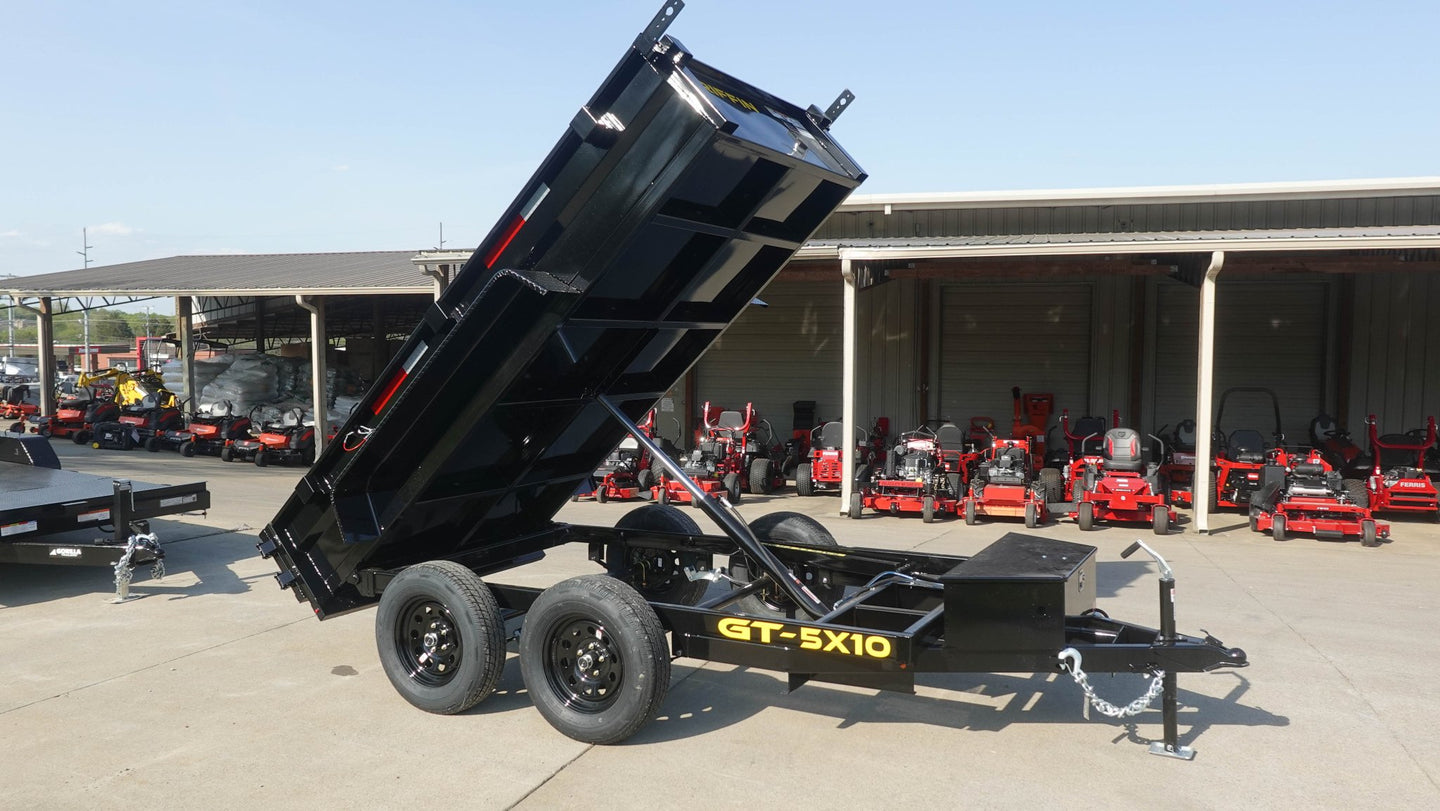

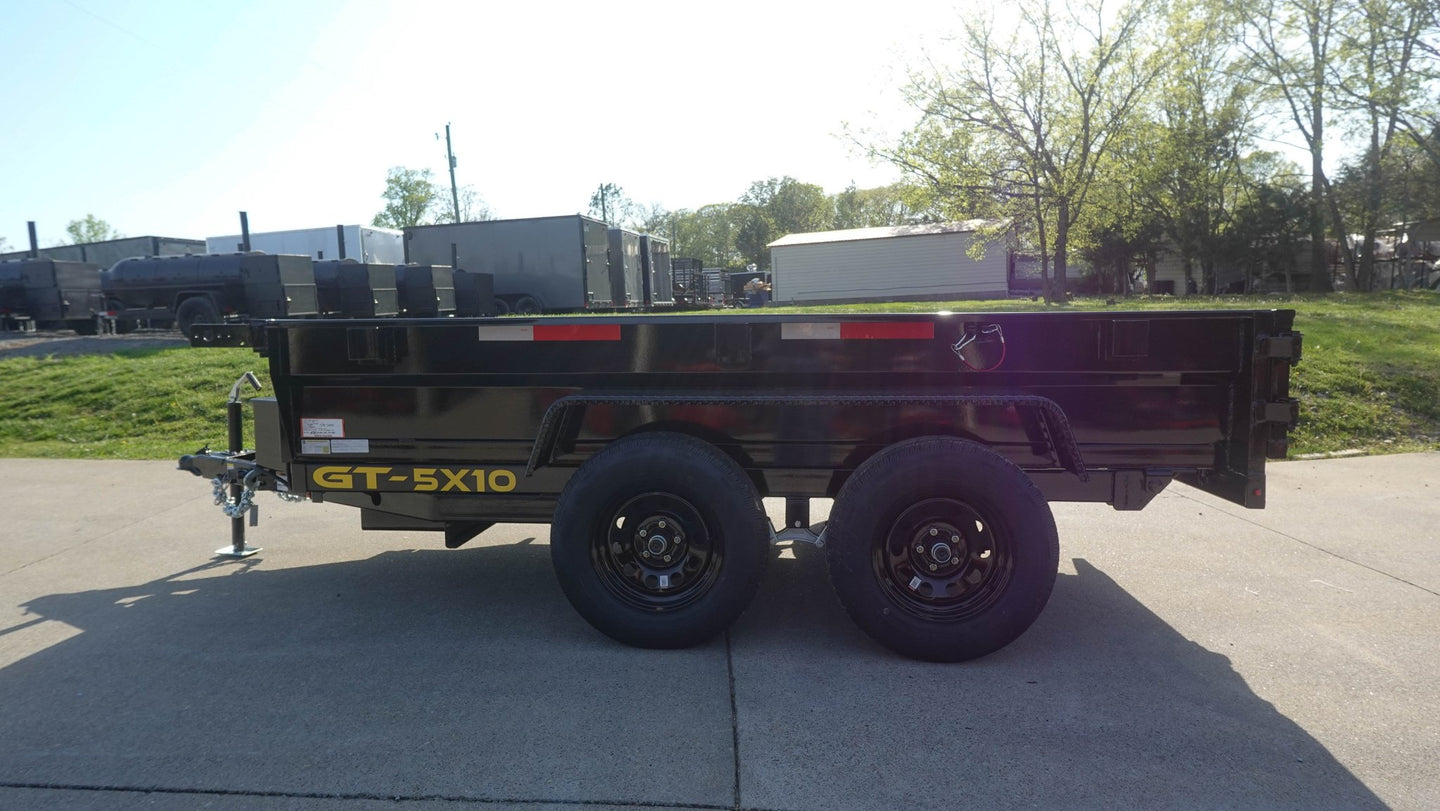

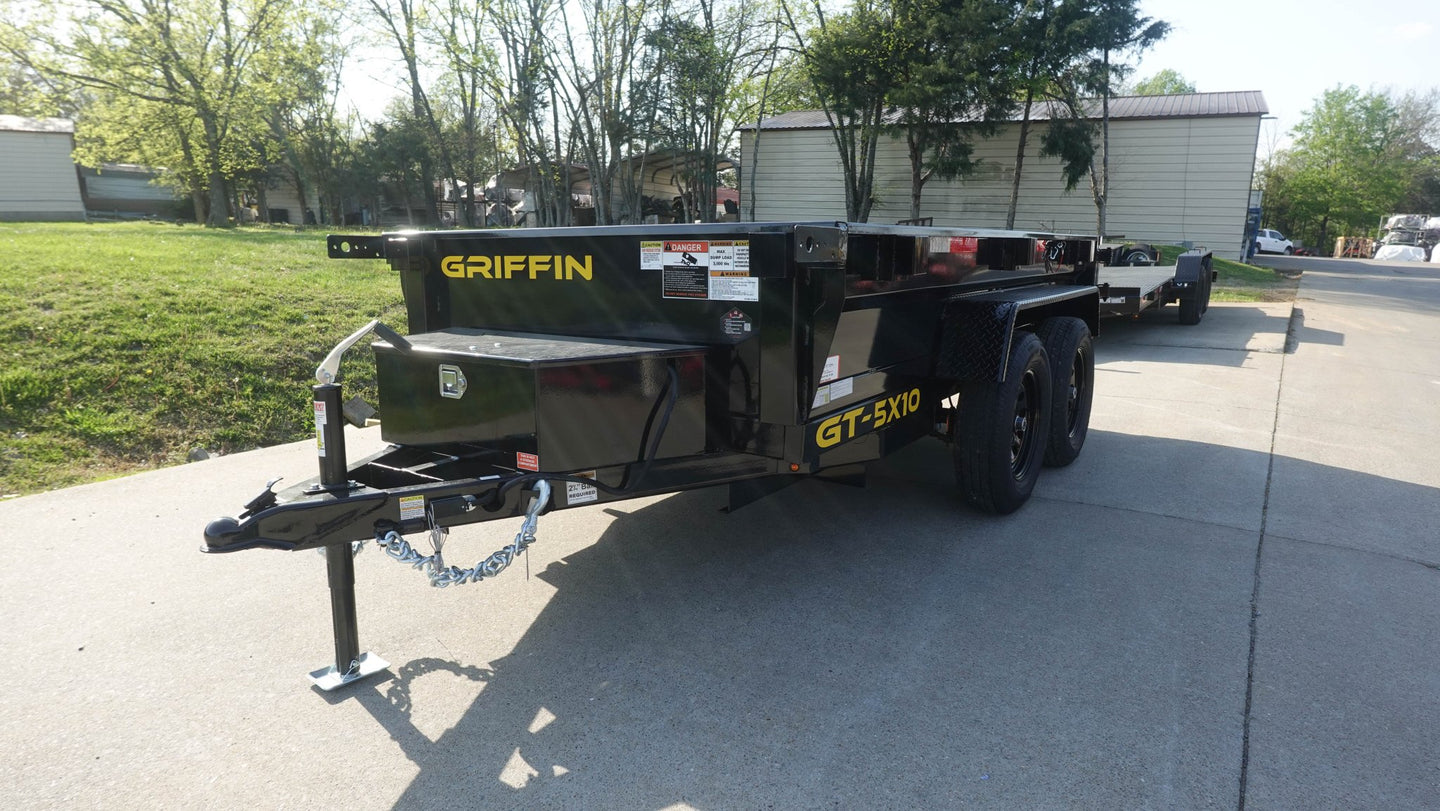

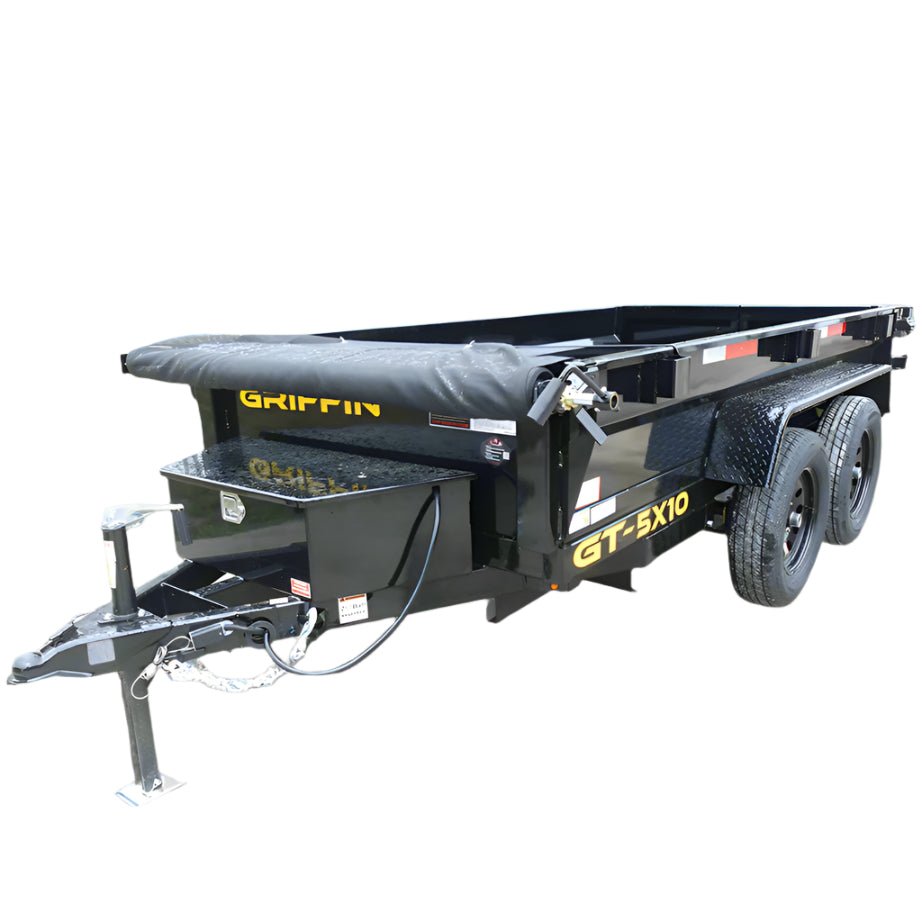

5x10 Hydraulic Dump Trailer with 16" Sides 7K

5x10 Hydraulic Dump Trailer with 2ft Sides (2) 3500lb Axles

Free delivery only within 30 miles of SLE Equipment. In-store pick up is also available for free. Call for more options: 615-641-7720.

Features:

• The length of the trailer is 10 feet (120 inches), providing a balance of space and maneuverability.
• The sidewall height is 16 inches, offering sufficient containment for materials.
• The width measures 59.5 inches, giving the trailer a narrow yet functional design.
• The floor height is 29 inches, making it easy to load and unload.
• The coupler height is 18 inches, ensuring proper alignment with towing vehicles.
• The cross members are made from 2" x 3" tube, spaced 16 inches on center for structural strength.
• The wheels are coated in a black powder coat, providing durability and a sleek appearance.

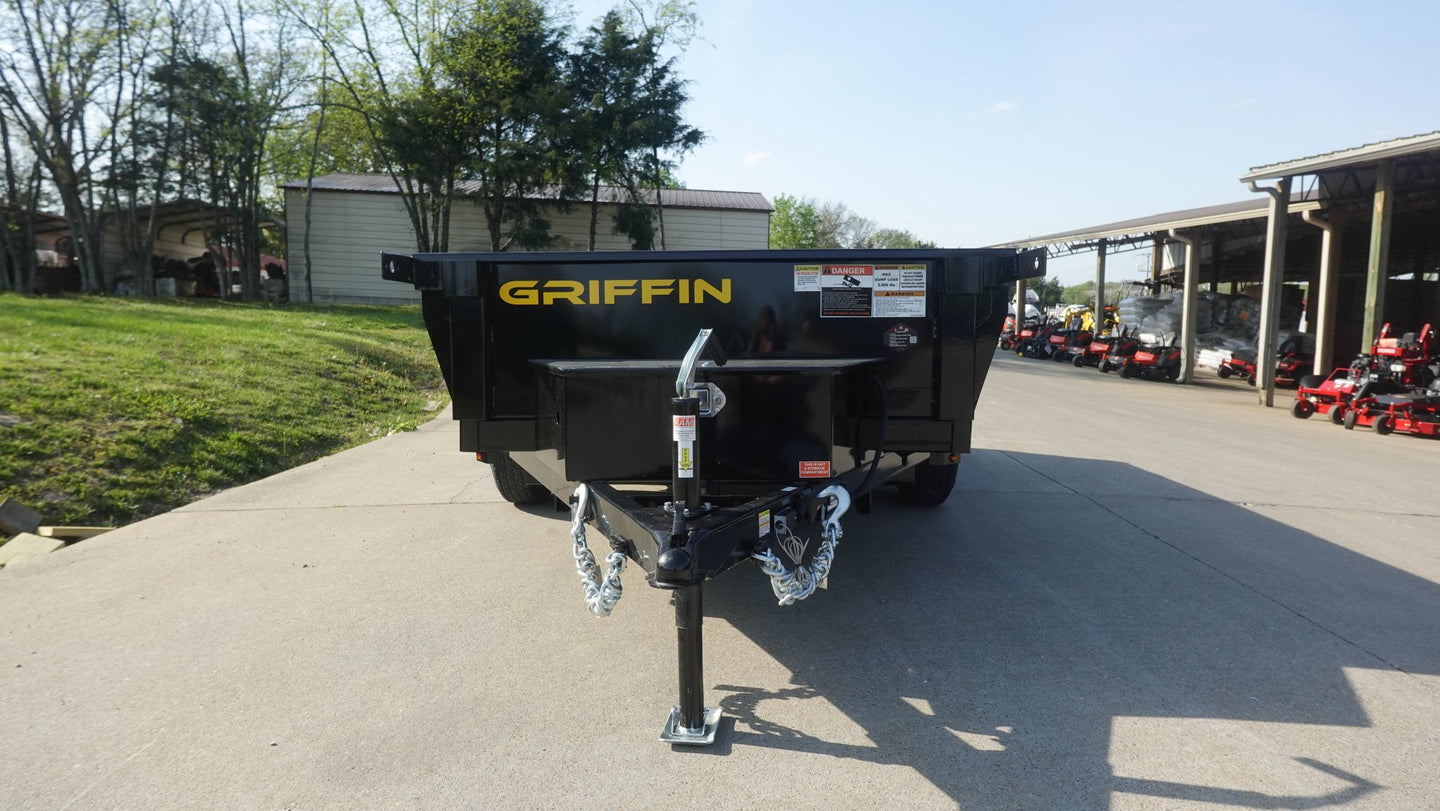

• The coupler is a 2-5/16" A-frame coupler, ensuring secure attachment.

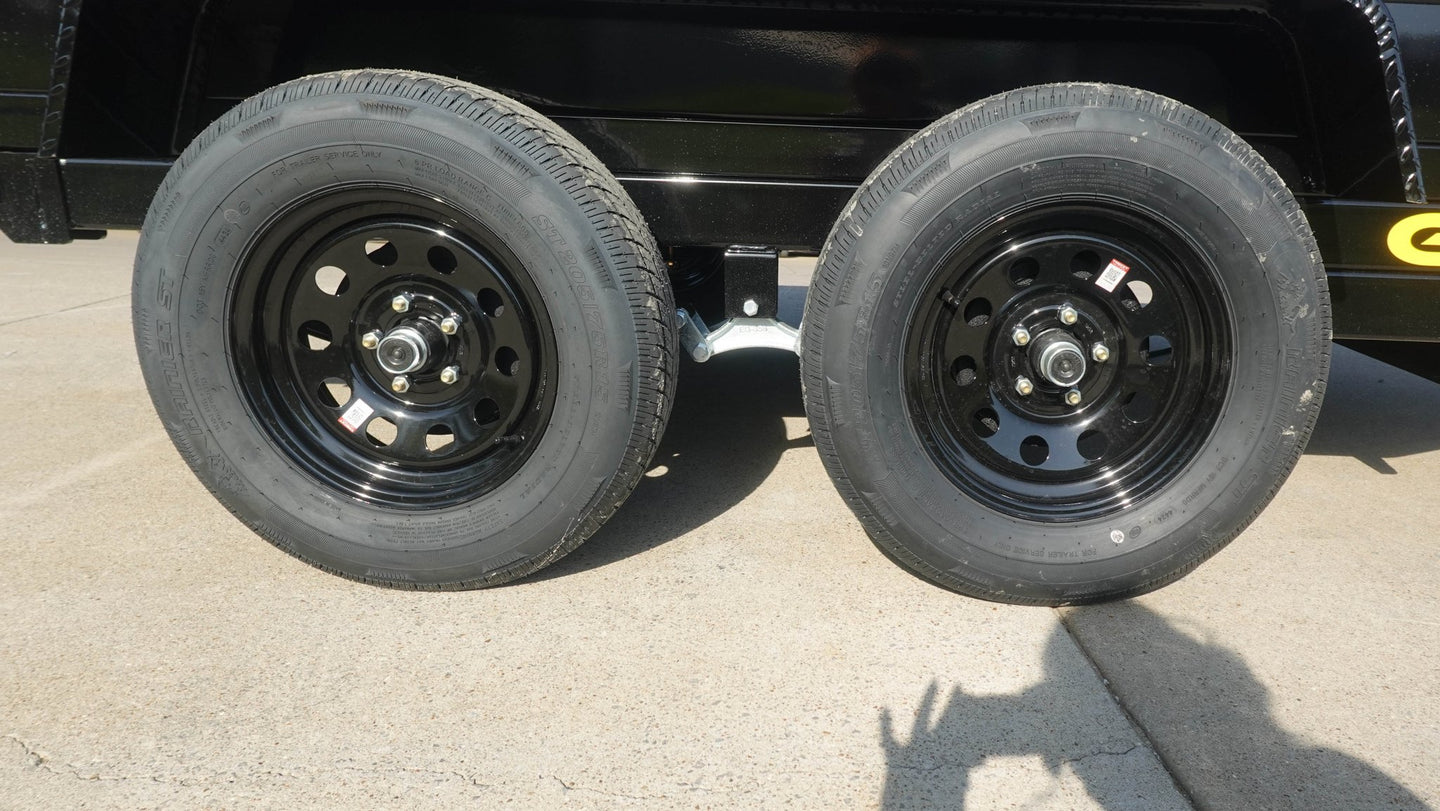

• The tires are 15-inch radial, offering a smooth ride and durability.

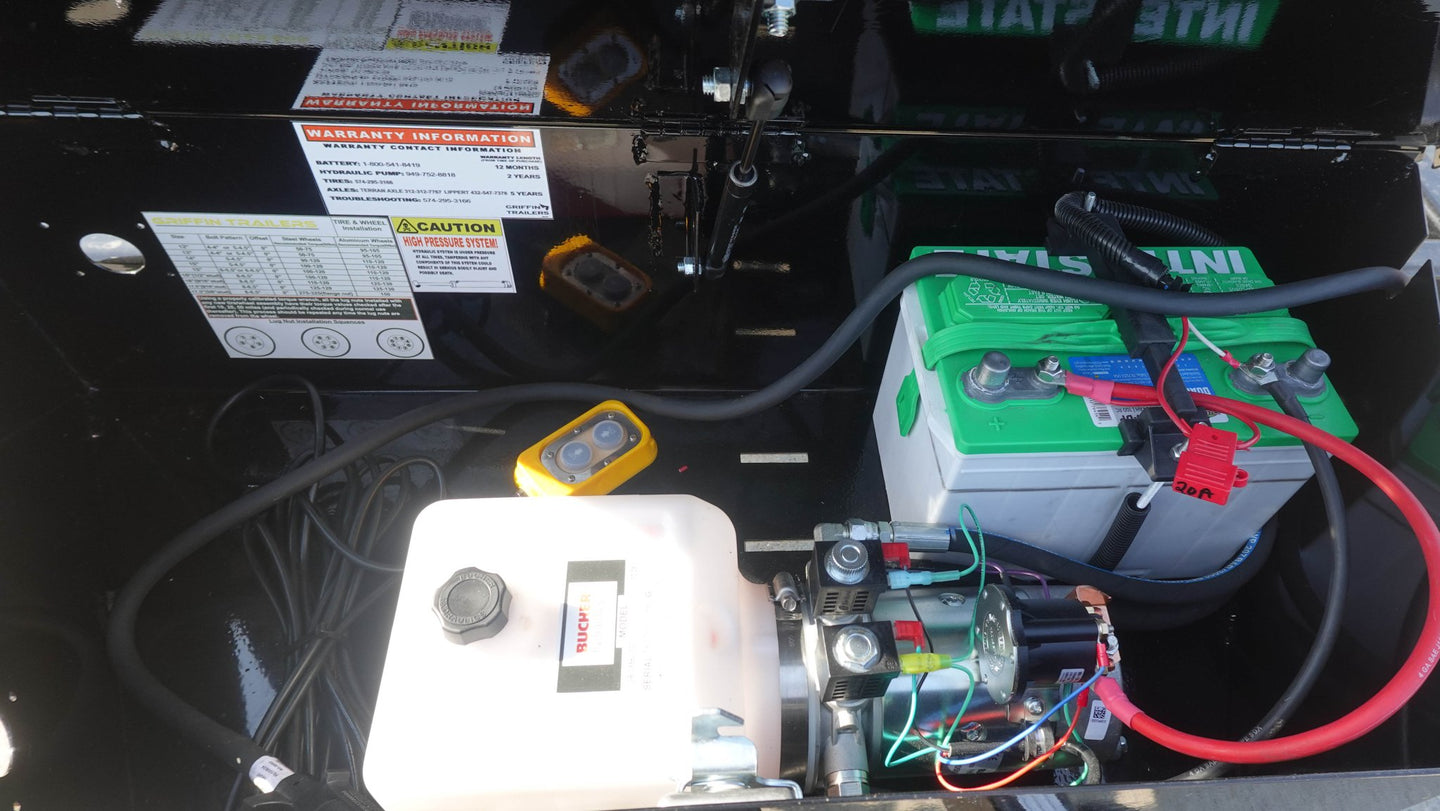

• The power unit is a 12v DC hydraulic pump with 3200 PSI power up and 1500 PSI power down, offering reliable performance.
• The trailer does not include a spare tire mount.
• The battery is an Interstate deep cycle marine battery, known for longevity and durability.
• There are no ramps included with this model.

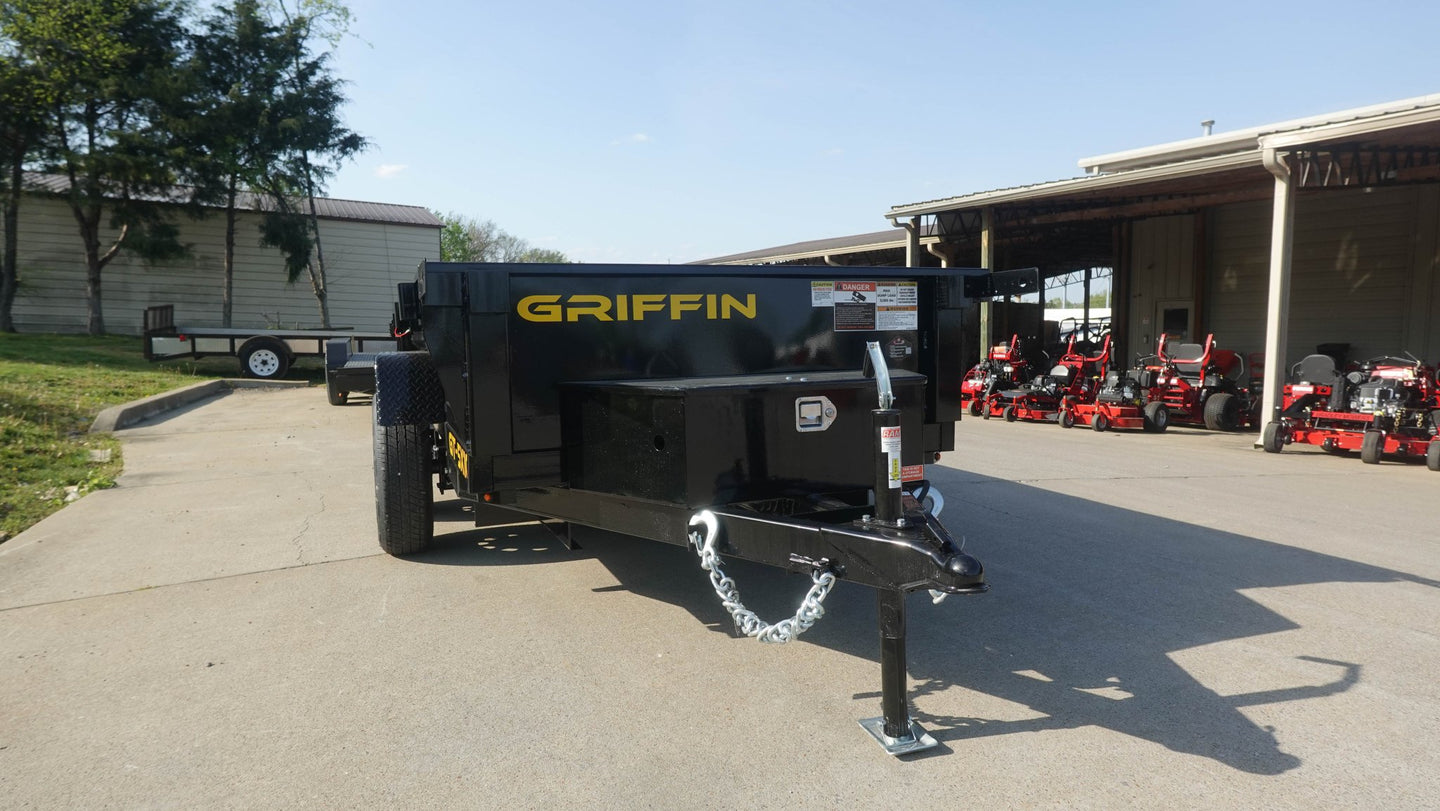

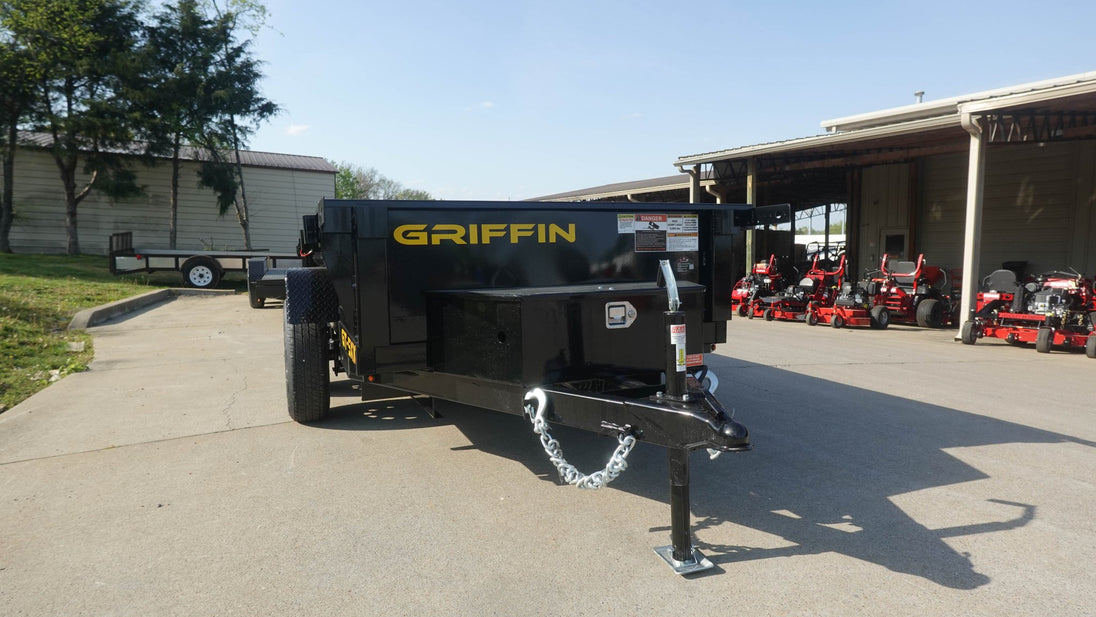

• The jack is coupler-mounted with a 5000-pound top wind capacity, making height adjustments simple.

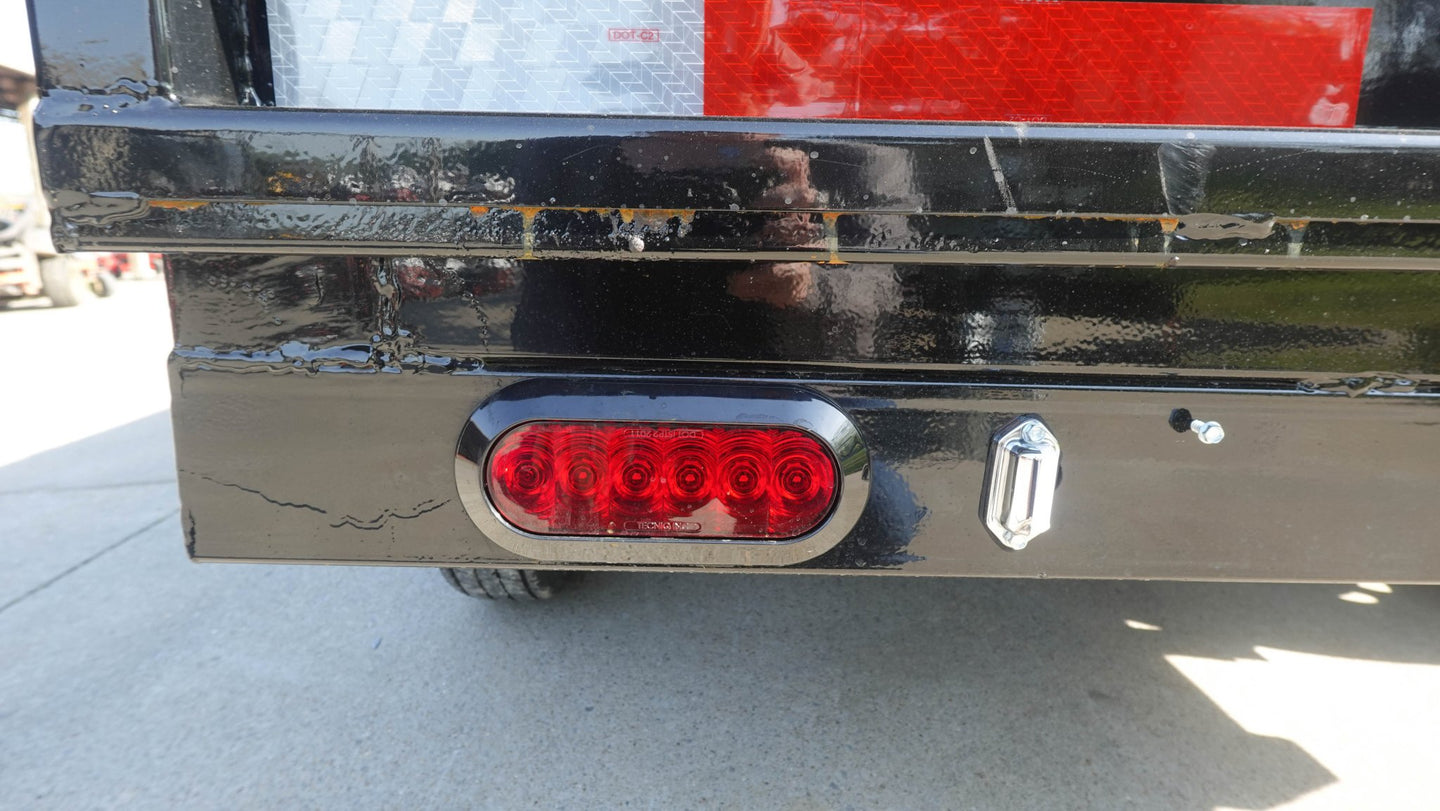

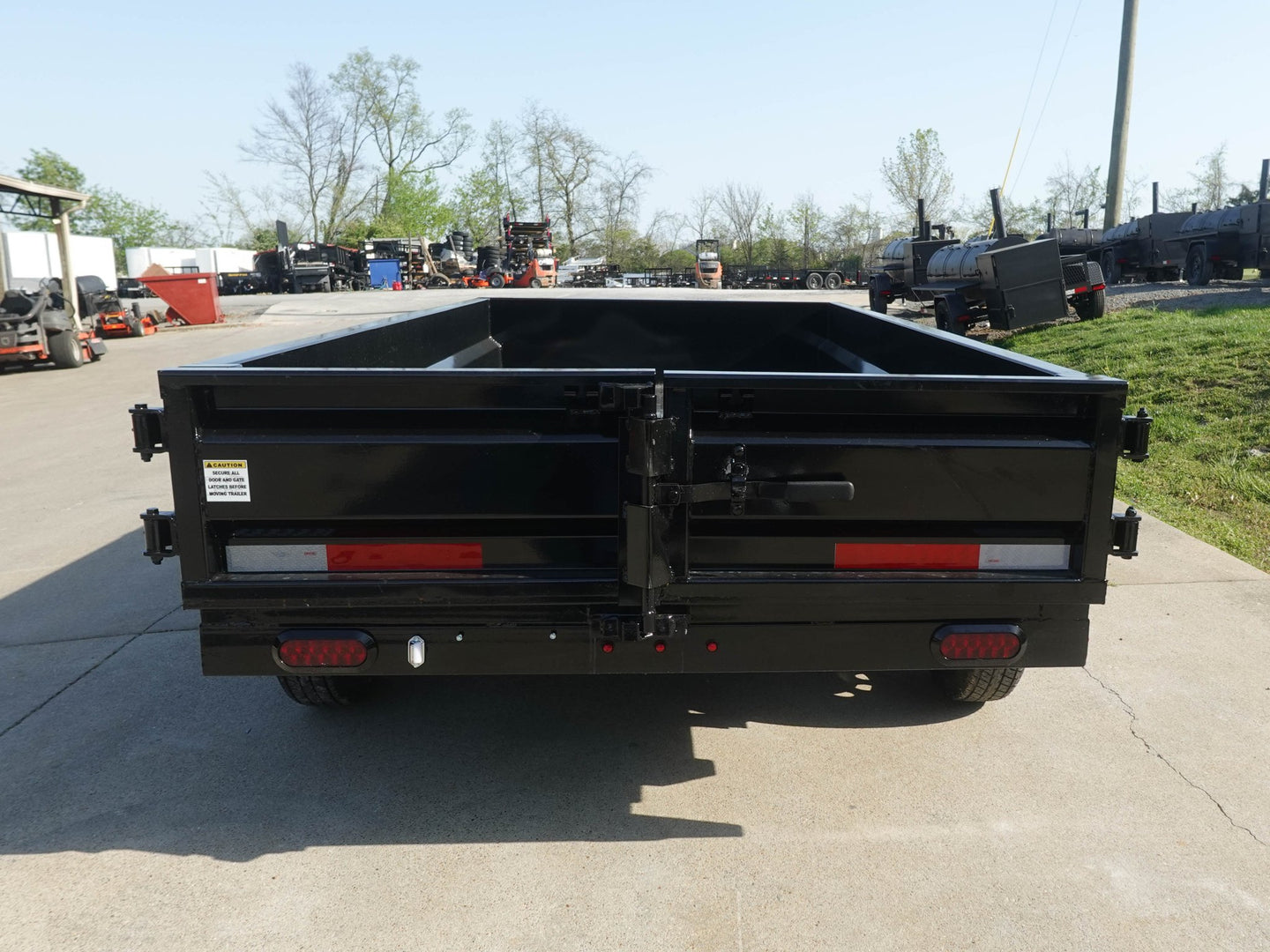

• The lighting system includes amber and red LED lights, enhancing visibility and safety.
• The control box comes with a key lock for easy front access.
• The wiring harness is a 3-piece plug and play system, ensuring quick and easy electrical connections.
• The fenders are made from 14-gauge formed treadplate, providing protection from debris.
• The electric plug is a 7-pin round connector, compatible with most towing vehicles.
• The stake pockets are constructed from 2" x 4" tubes, offering secure tie-down points.

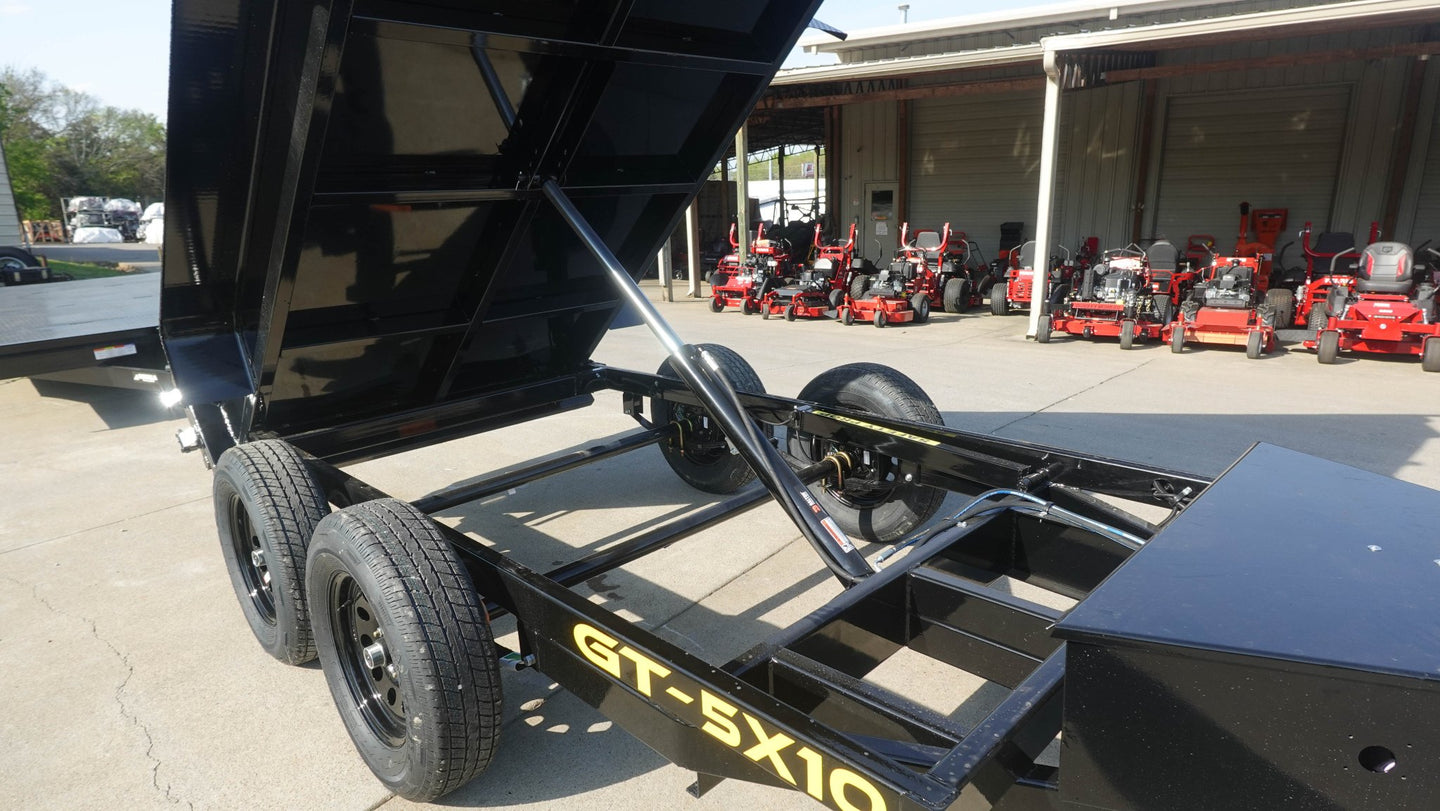

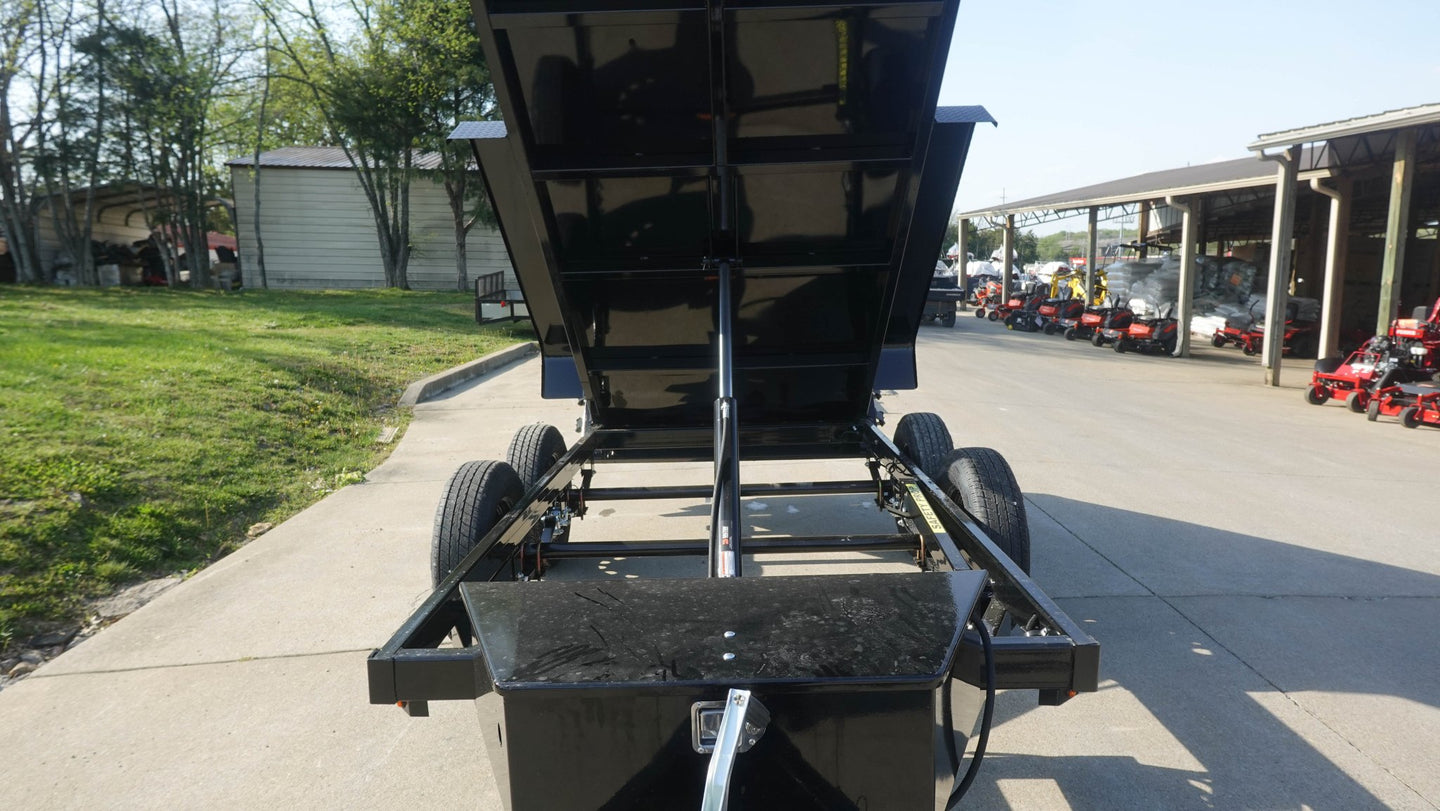

• The lift system features one 3" x 30" hydraulic cylinder, ensuring reliable lifting capability.
• There are no gussets included in this model.
• The floor and walls are made from 12-gauge smooth steel, ensuring durability and strength.
• The safety chains are two S-hook 1/4" x 27" chains with a 5200-pound capacity, providing security during towing.
• The trailer has a  integrated tarp system.
• There are no D-rings included in this model.

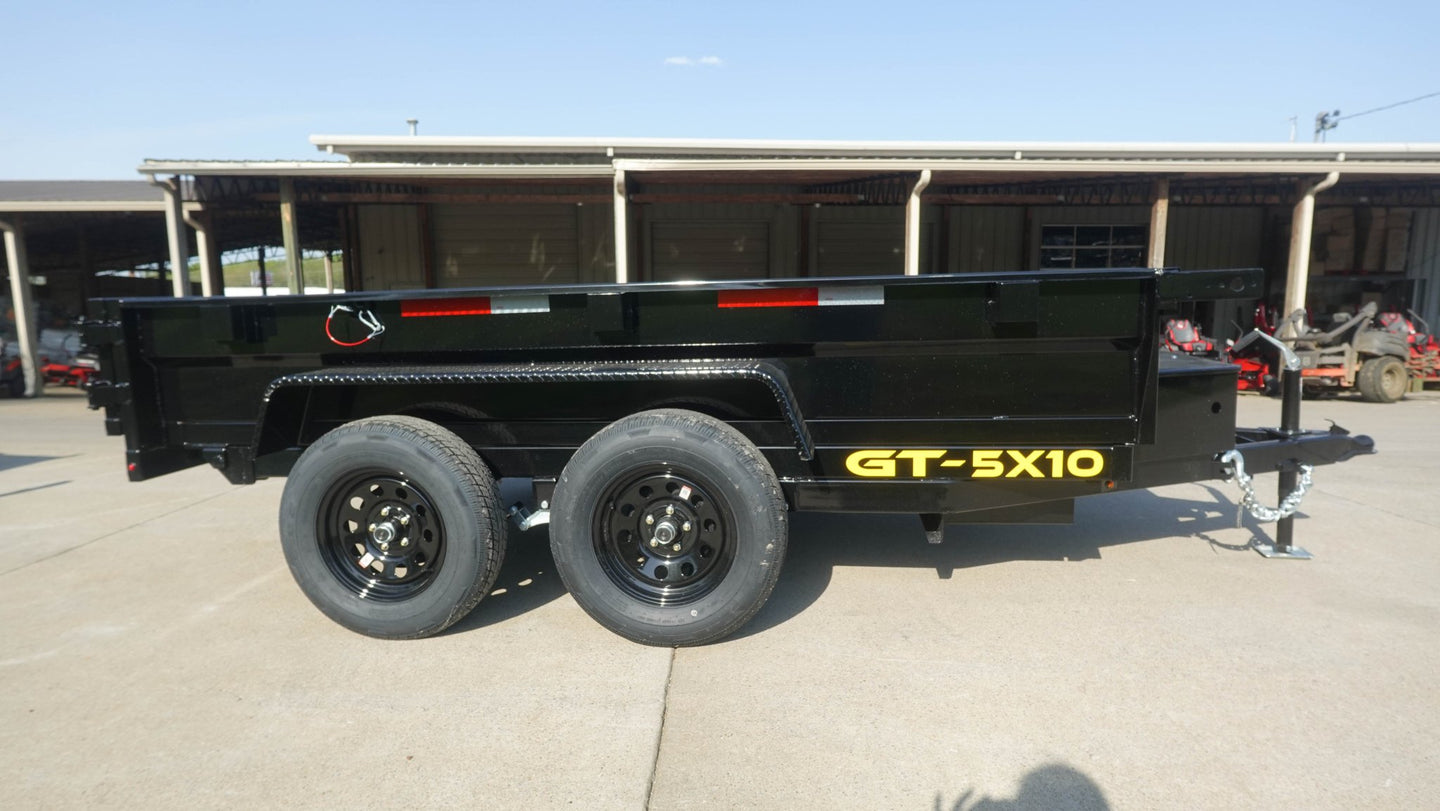

• The axles are tandem EZ Lube axles with galvanized components, offering easy maintenance and durability.
• The paint finish is a high gloss black powder coat, providing a polished look and added protection.
• The suspension uses an equalized leaf spring system, giving the trailer a smooth ride.
• The trailer’s style is Low-Pro, allowing for easier loading.
• The overall length is 159 inches, offering a longer design for extra cargo space.
• The GVWR (Gross Vehicle Weight Rating) is 7000 pounds, accommodating heavier loads.
• The GAWR (Gross Axle Weight Rating) is 3500 pounds, supporting each axle’s weight capacity.
• The curb weight is 1895 pounds, keeping the trailer light yet sturdy.
• The tongue is made from 2" x 4" tube steel, providing structural integrity.
• The payload capacity is 5105 pounds, allowing for moderate to heavy loads.
• The estimated tongue weight is 280 pounds, offering stability during towing.
• The dump capacity is 3000 pounds, making it ideal for medium-sized hauling and dumping

Trailer price does not include the tarp kit, which is available for purchase separately.
