Kohler Engines

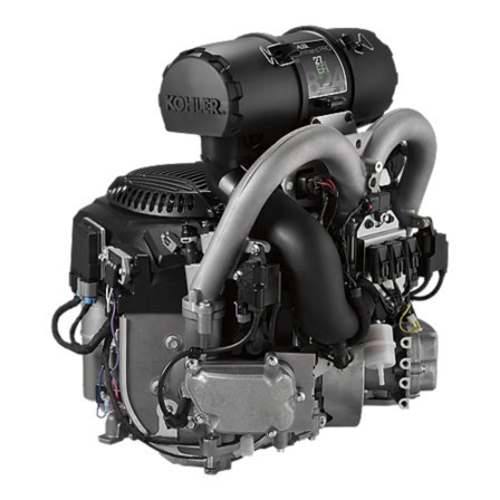

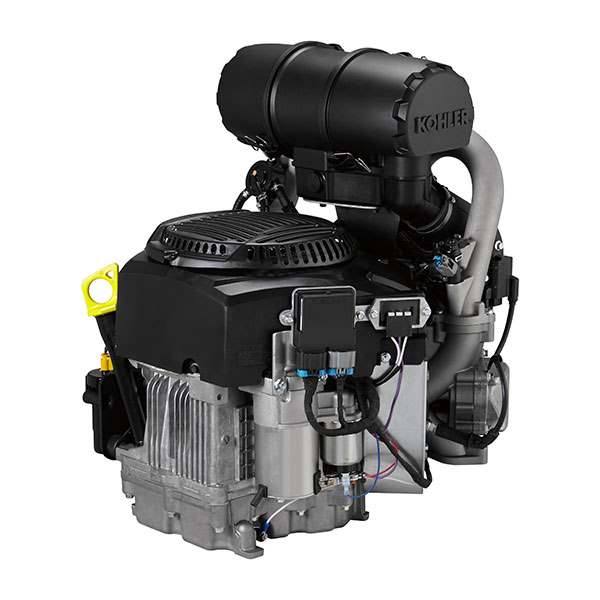

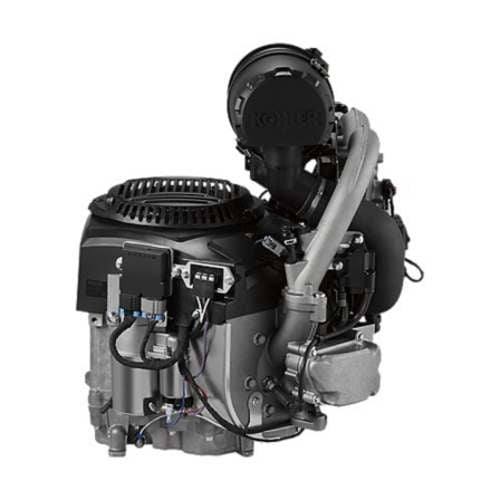

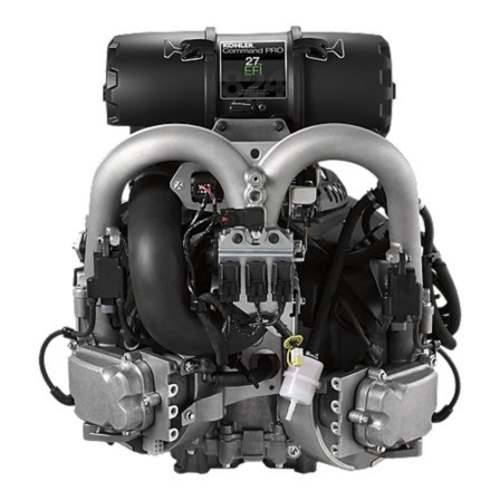

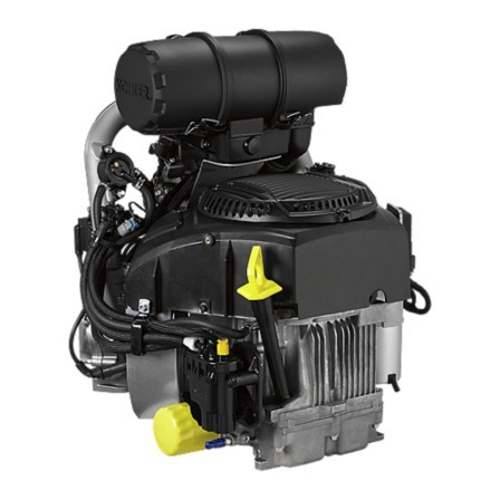

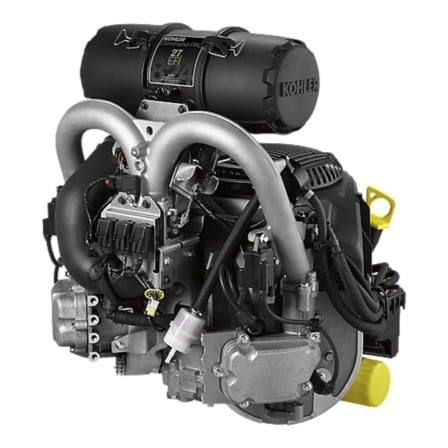

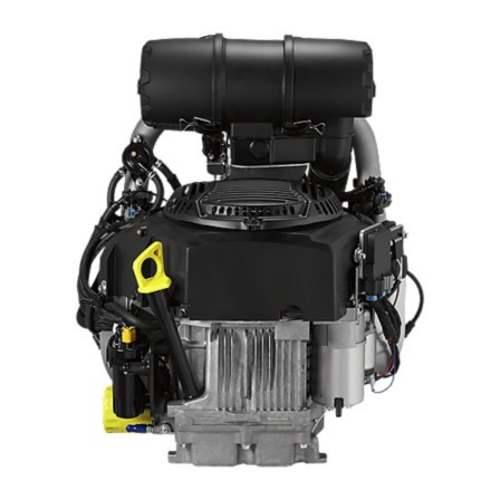

Kohler 27 HP 824cc ECV850-3001 Command Pro EFI Replacement Engine

SKU ECV850-3001
$111,111.00

ECV850-3001Best-in-class horsepower and torque takes on tall grass, wet grass and steep hills without backing down. These fuel-sippers with closed-loop electronic fuel injection save you up to $600 a year on fuel

Product Description

Engine Type:

824cc, 27 hp, 4-cycle, gasoline,V-twin, air-cooled, vertical shaft

Model
ECV850
J1940 Power hp(kW) 1 27 (20.1)
Displacement cu in (cc) 50.3 (824)
Bore in (mm) 3.4 (86)
Stroke in (mm) 2.8 (71)
Peak Torque lbs. ft (Nm) 48 (65.1)
Compression Ratio 8.9:1
Dry Weight lbs (kg) 136 (61.7)
Oil Capacity U.S. quarts (L) ()
Lubrication Full pressure w/full-flow filter
Dimensions L x W x H in 19.7 x 20.5 x 24
J1995 Power hp (kW) 3 29.73 (22.17)
J1995 Rated Speed (RPM)  3600



Shaft Type: Vertical

Shaft Width: 1.125"

Shaft Length: 4.3"



Equipment Types

This engine powers the following equipment:



  • Garden Tractor
  • Rear Engine Rider
  • Lawn Tractor
  • Yard Tractor
  • Portable Generator
  • Mower, Zero Turn Radius





More Information

Manufacturer: Kohler Engines
MPN: ECV850-3001
ConditionNew
Shipping OptionsStandard Ground Shipping
Engine CoolingAir
Engine Size27hp
Engine Type4-Stroke
# of Cylinders2
Shaft Length4-5/16"
Shaft PositionVertical
Shaft Width1-1/8"
Warranty2 Year Limited Warranty
