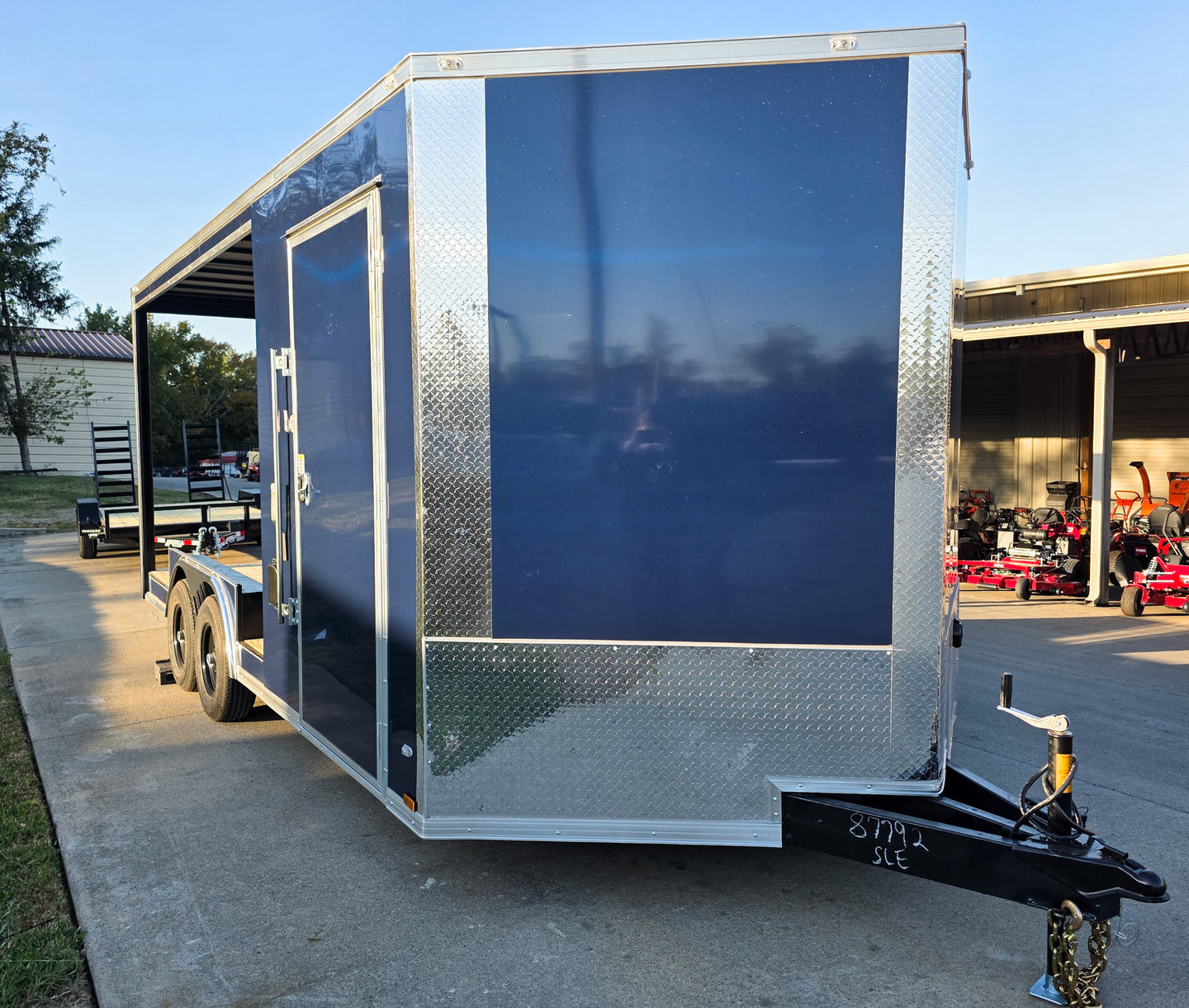

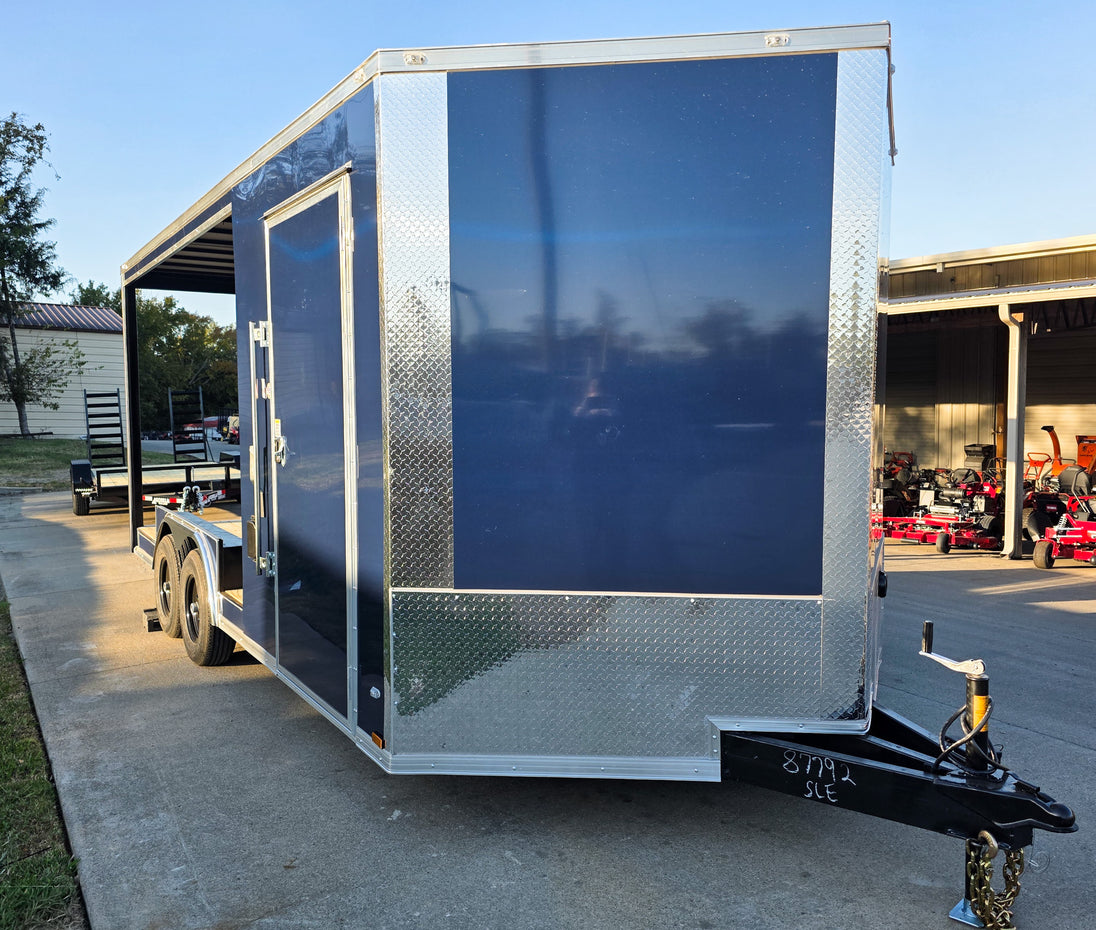

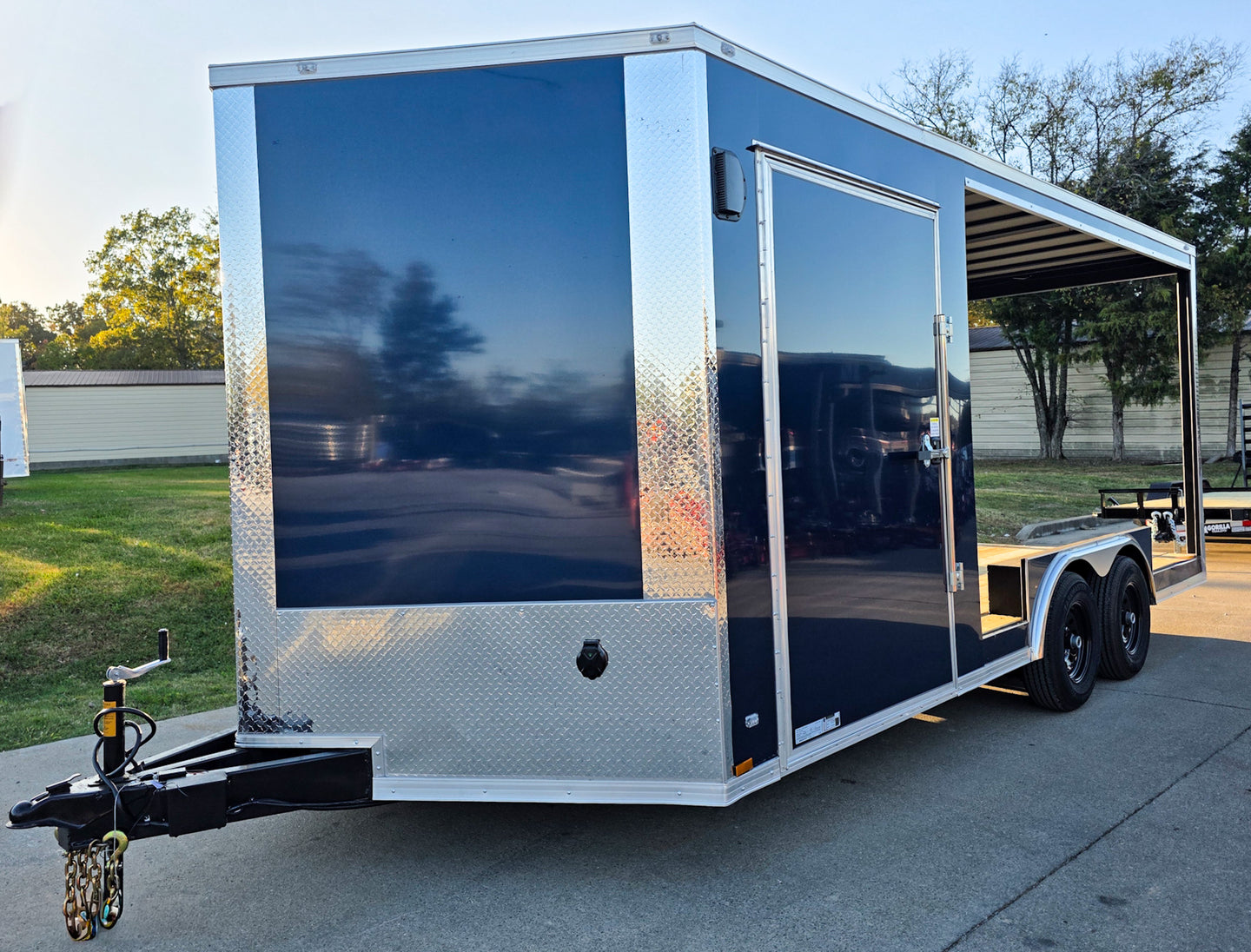

8.5x18 Indigo Enclosed Trailer Hybrid V-Nose with Roof (2)5,200LB Axles

8.5x18 Indigo Enclosed Trailer Hybrid V-Nose with Roof (2)5,200LB Axles

Features:

• Box Length: 6 ft enclosed front section
  • Provides protected storage, work, or living area.
• Deck Length: 12 ft covered open deck
  • Covered overhead for weather protection.
  • Open sides for flexible cargo use.
• Overall Height: 7 ft interior clearance
  • Allows comfortable standing height for most adults.
• Overall Length: Approx. 18 ft total (box + deck)
  • Balanced design for towing stability and maneuverability.
• Width: 8.5 ft (standard legal maximum for highway use).
• Tongue Length: Approx. 48" A-frame for stable towing and easy jack operation.
• Material: Polycore panel construction
  • Lightweight composite with aluminum skin and rigid polymer core.
  • Provides improved insulation, sound reduction, and impact resistance.
• Finish: Screwless exterior (if possible)
  • Clean, smooth appearance—reduces wind drag and corrosion points.
• Color: Indigo Blue
  • Gloss finish, UV-resistant, fade-resistant coating.
• Roof: One-piece aluminum, seamless and watertight
  • Prevents leaks and minimizes maintenance needs.
  • Integrated drip rails to channel rainwater away from doors and edges.
• Frame: Heavy-duty tubular steel, welded and powder-coated
  • Corrosion-resistant undercoating for long-term durability.

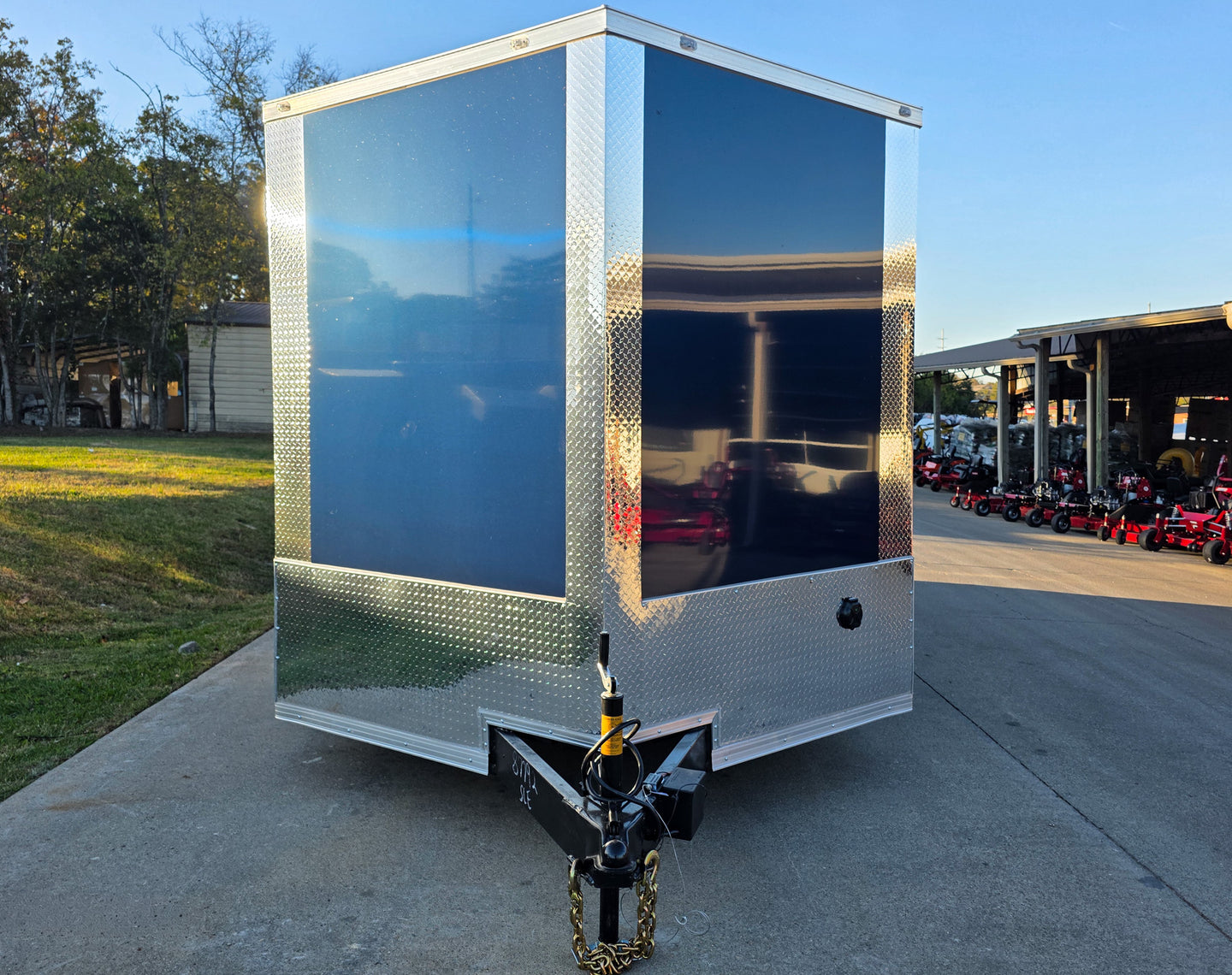

• Front Style: Flat front or optional V-nose design
  • V-nose option improves aerodynamics and provides extra interior space.
• Exterior Trim: Aluminum or black anodized trim with matching screwless fasteners.

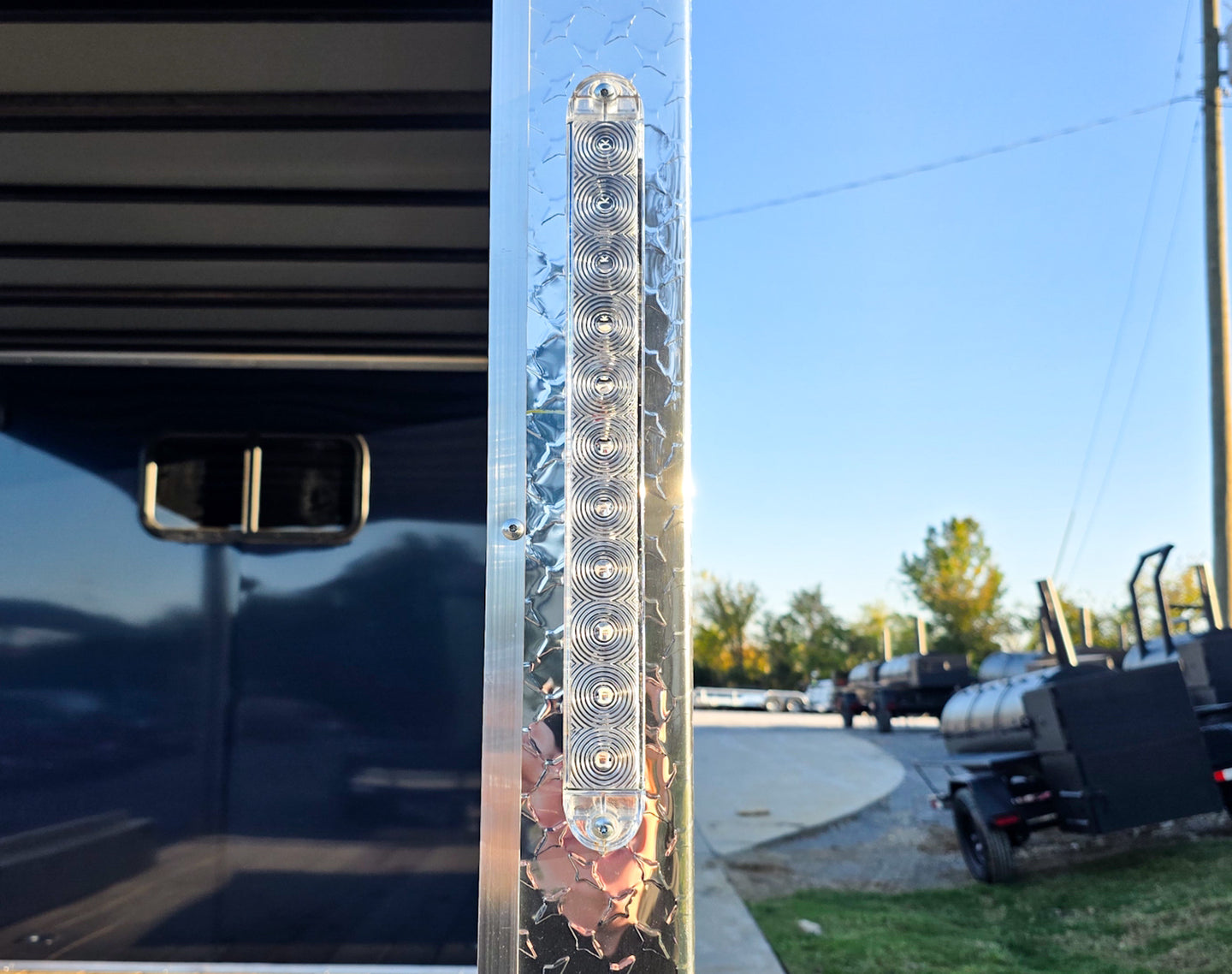

• Lighting: All LED DOT-approved clearance, tail, and side marker lights.
• Axles: Tandem 5200 lb leaf-spring axles
  • Equipped with EZ-lube hubs for easy maintenance.
• Brakes: Electric brakes on both axles.

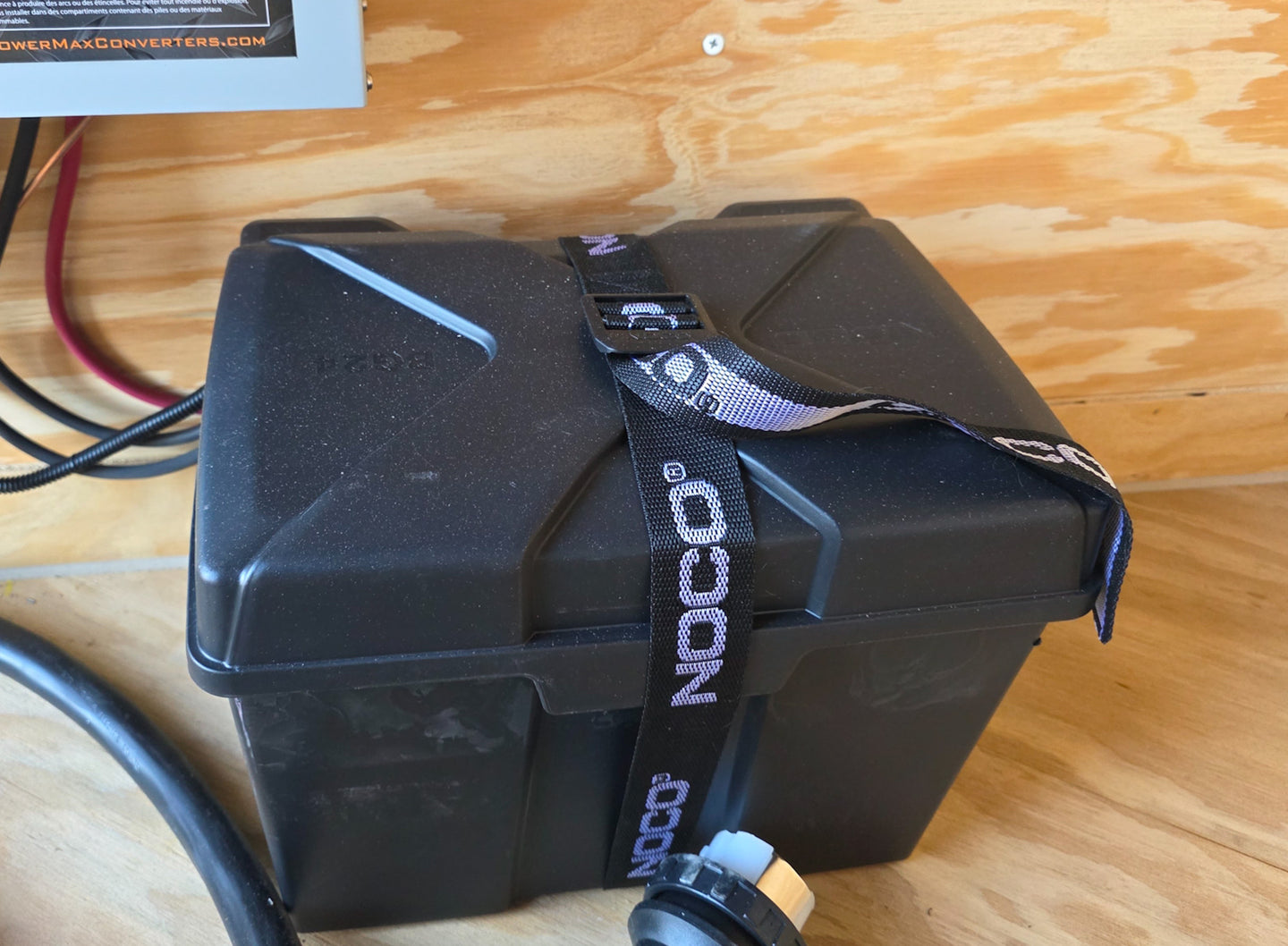

  • Includes breakaway safety system with onboard battery.
• Suspension: Multi-leaf spring suspension for stability under heavy load.

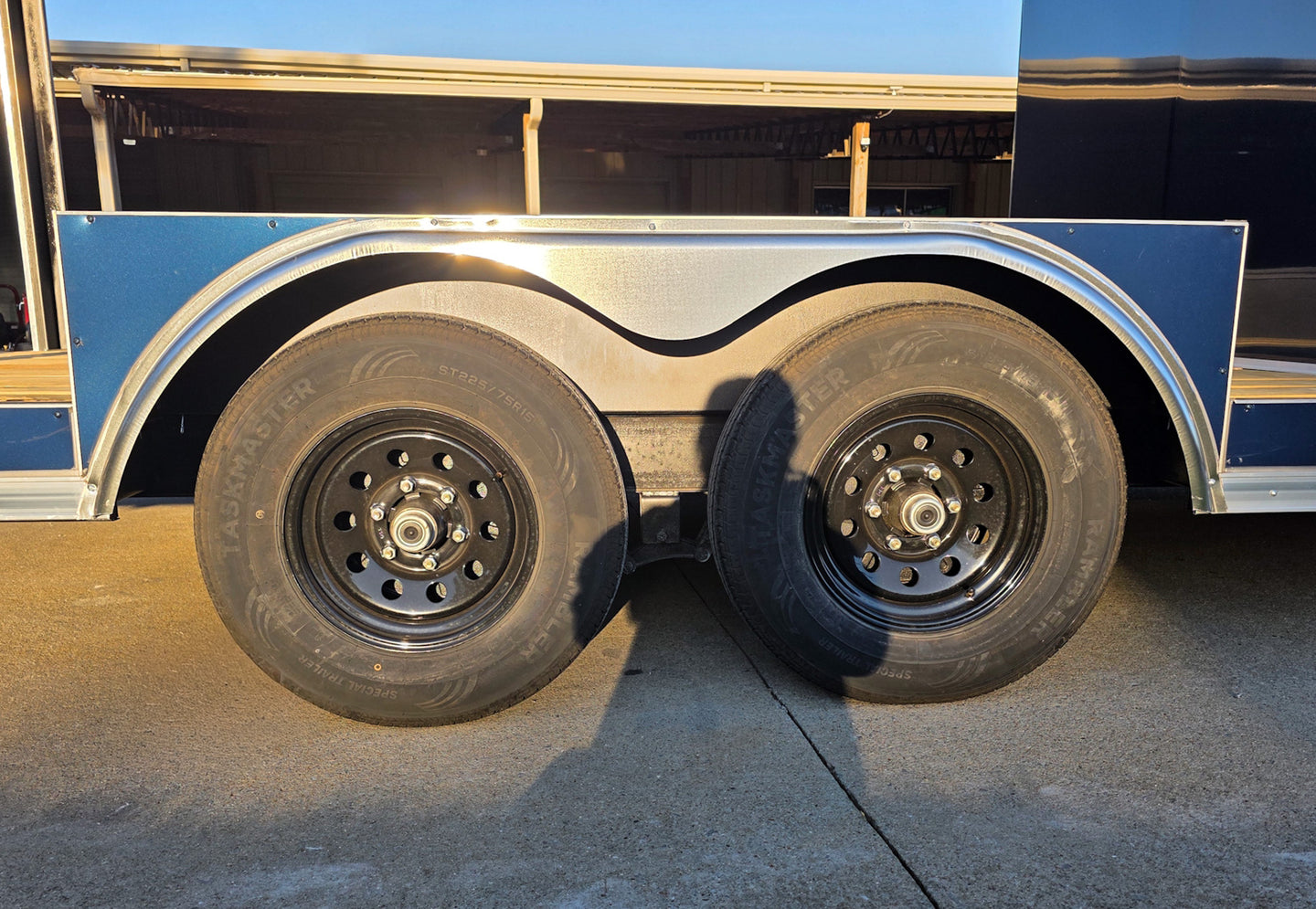

• Tires/Wheels:
  • ST radial tires (Load Range D or E).
  • Mounted on silver or black steel modular wheels.
  • Includes fenders with drip protection over deck section.

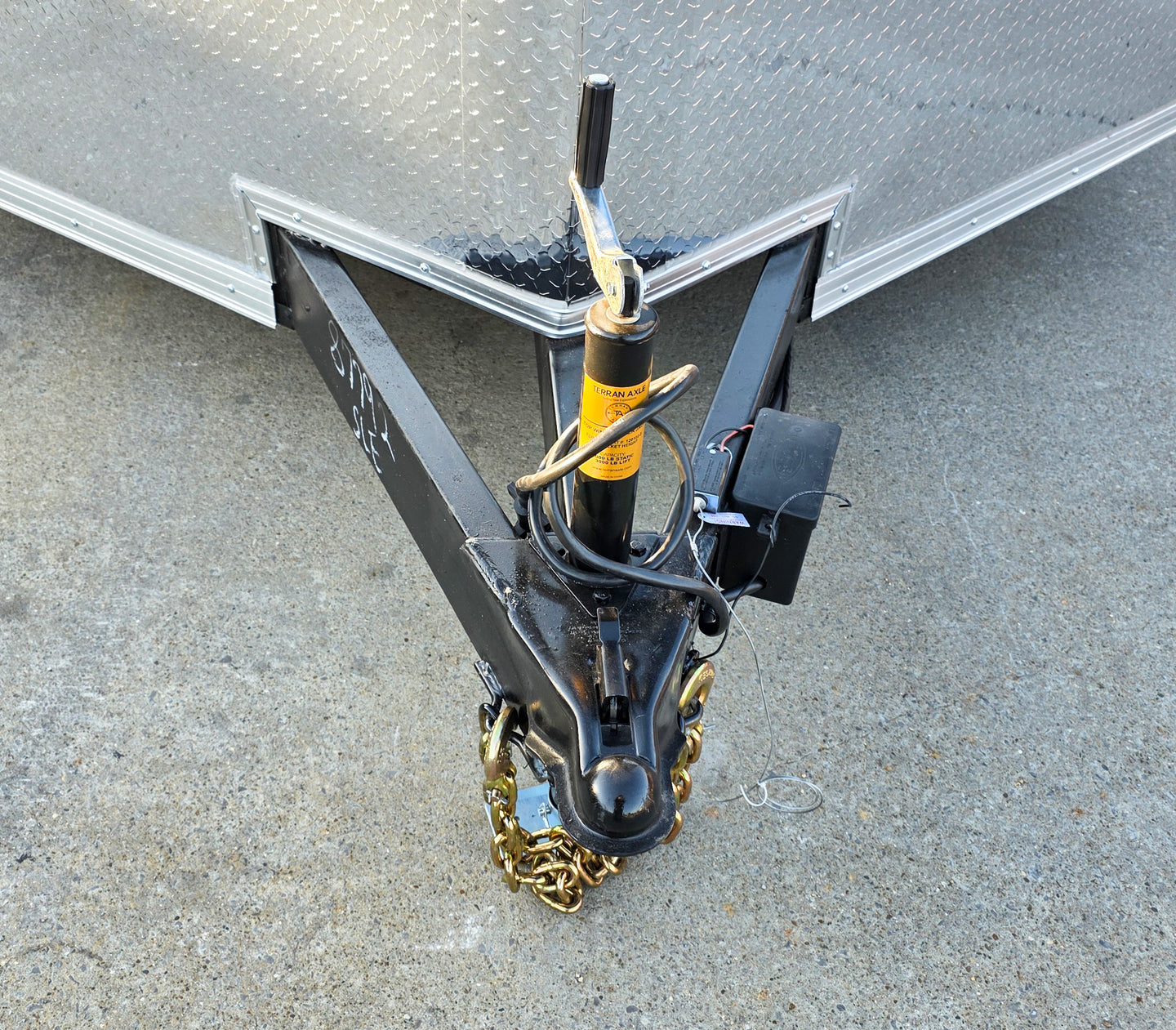

• Jack: Heavy-duty tongue jack (manual standard; electric optional).
• Coupler: 2-5/16” adjustable ball coupler for towing flexibility.
• Safety Chains: Rated for GVWR with secure S-hooks and clips.

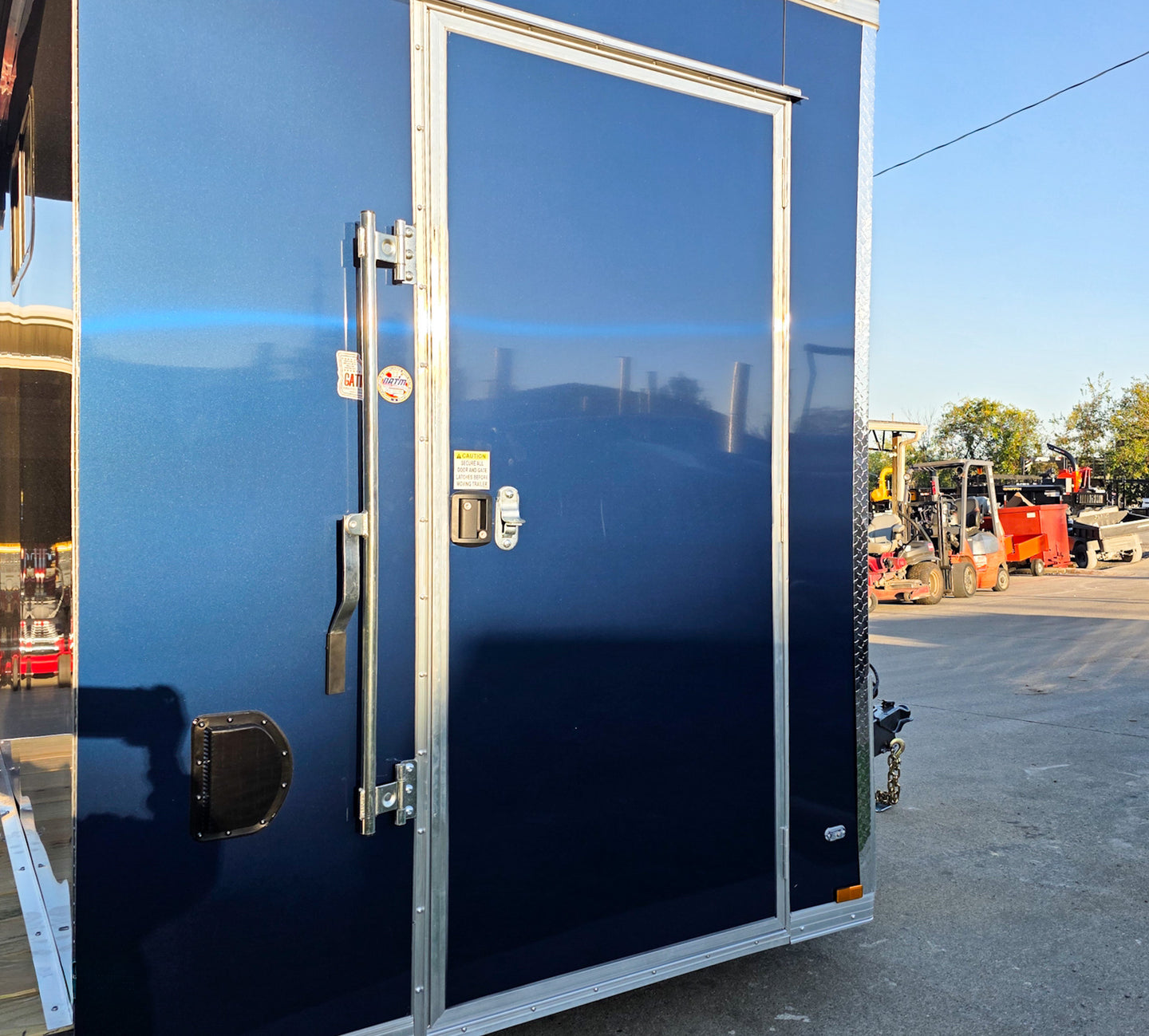

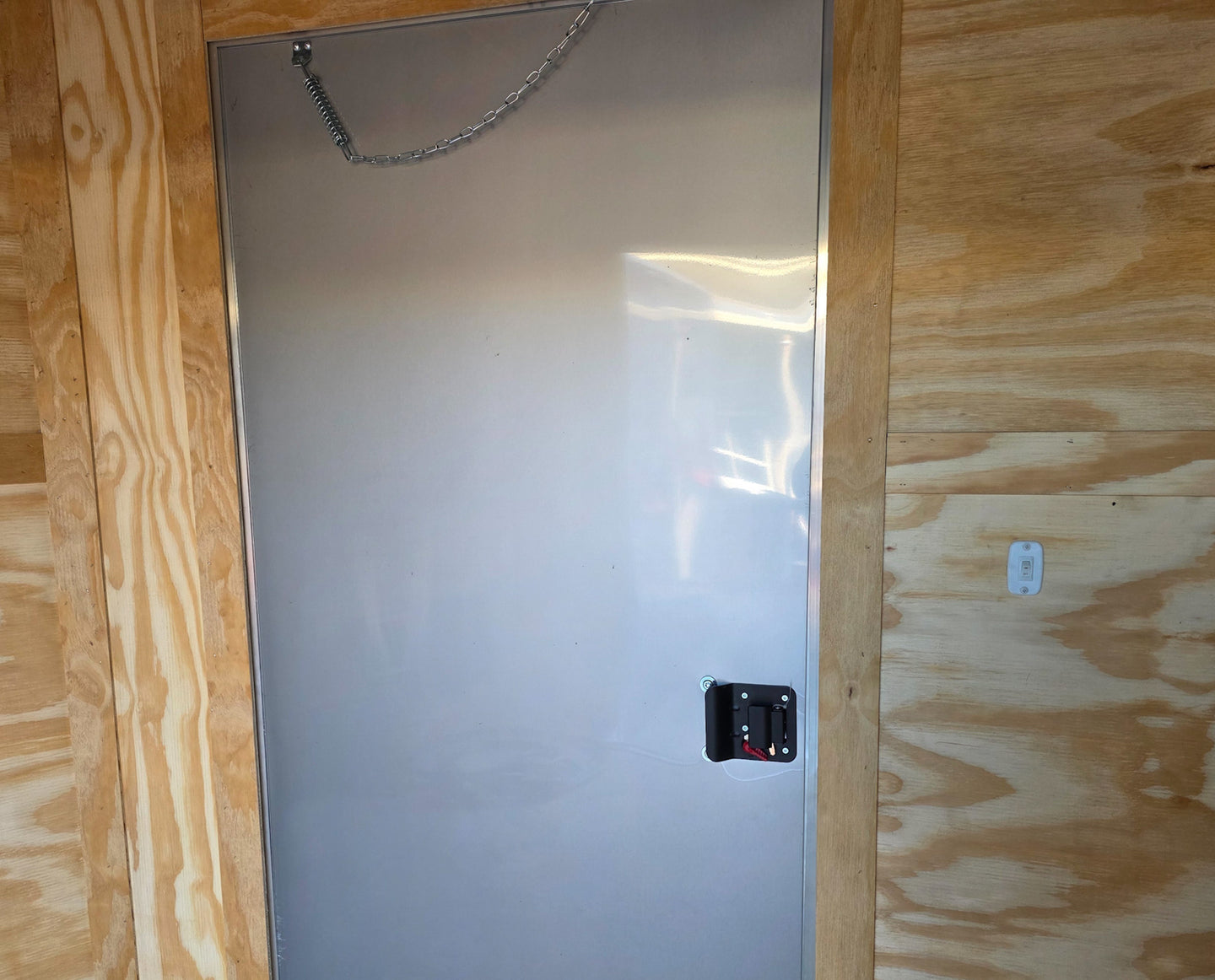

• Passenger-Side Door:

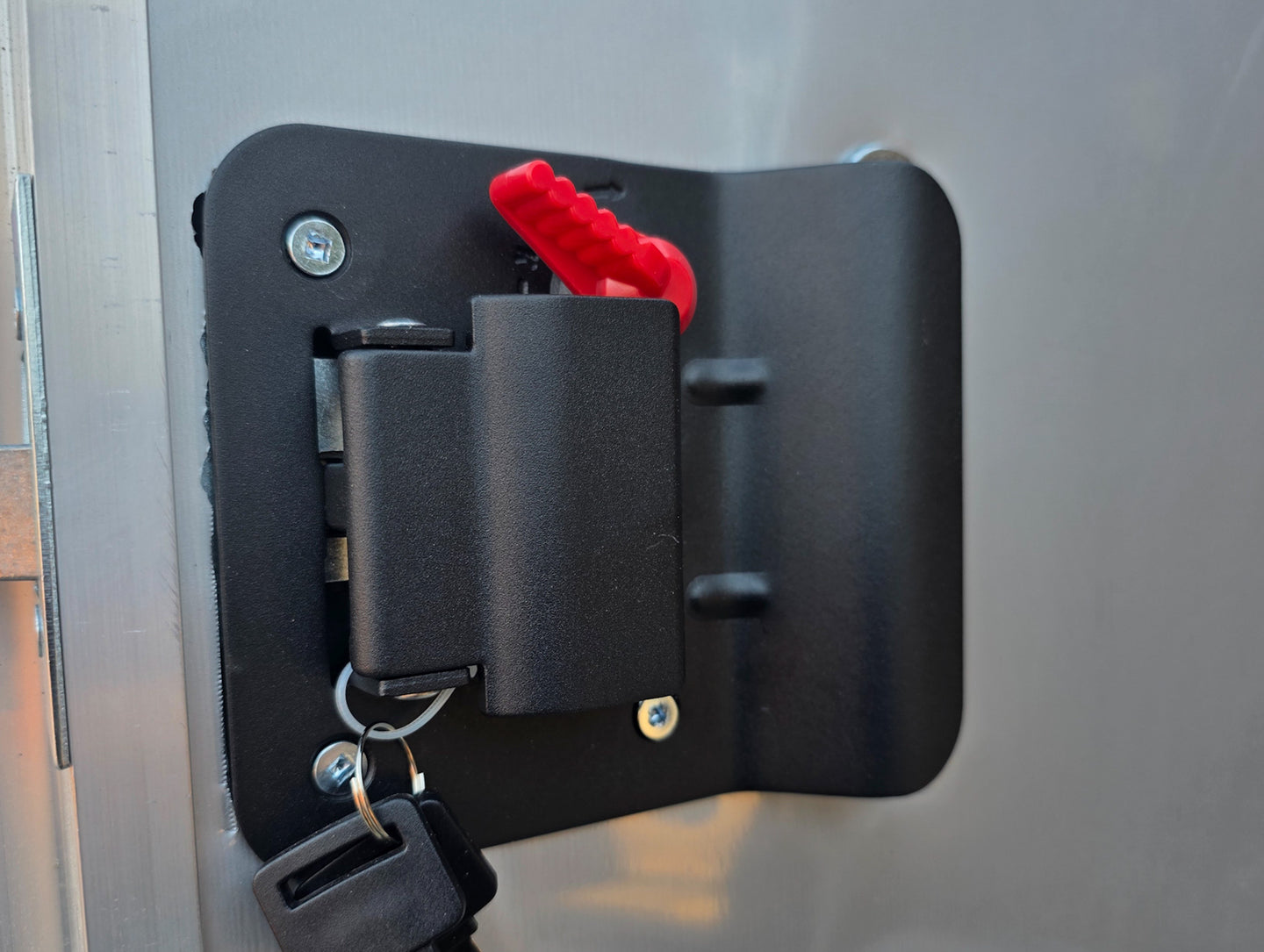

  • 36" wide RV-style entry door with lockable latch and weather seal.
  • Positioned forward on enclosed box for easy access.

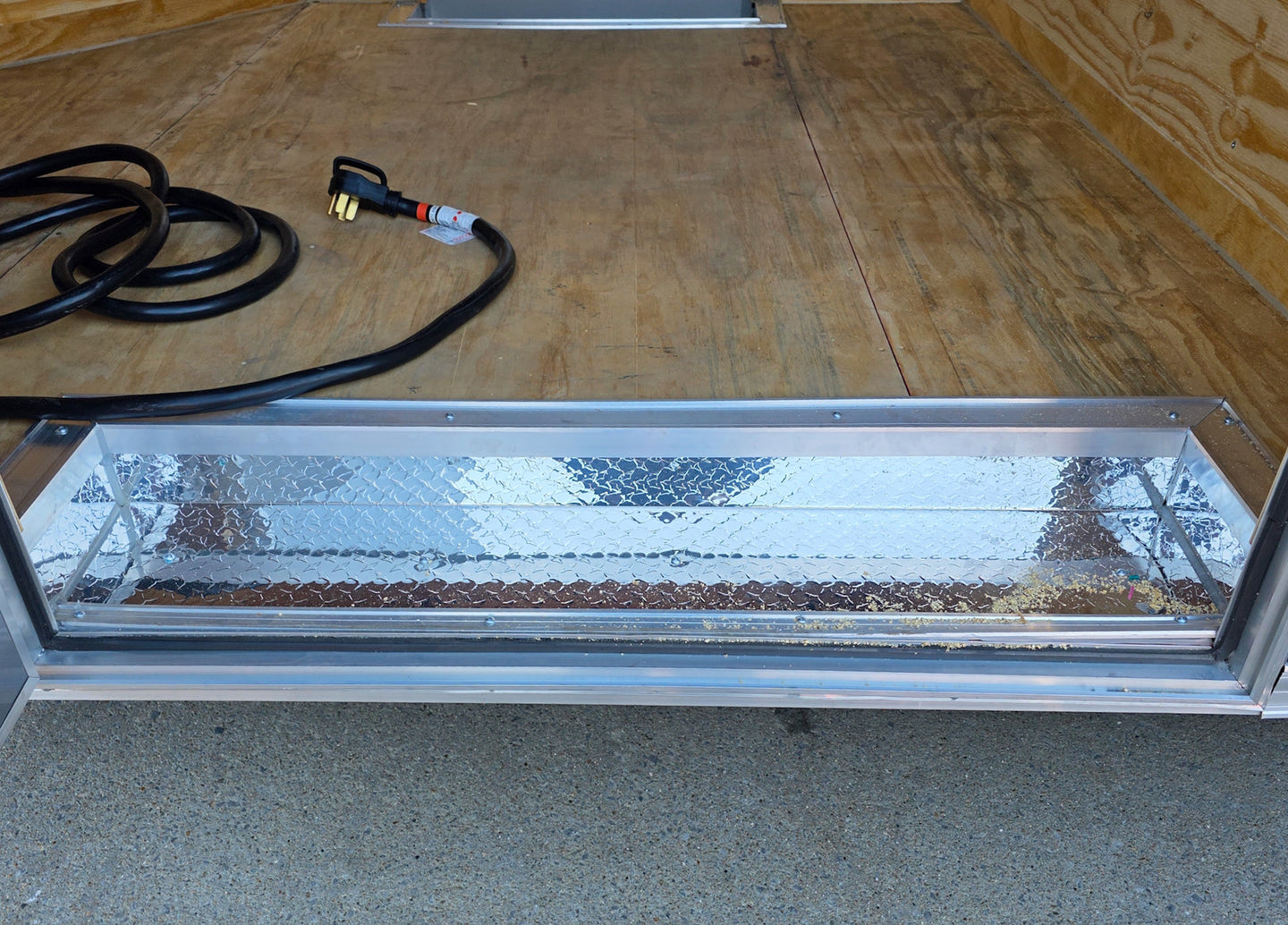

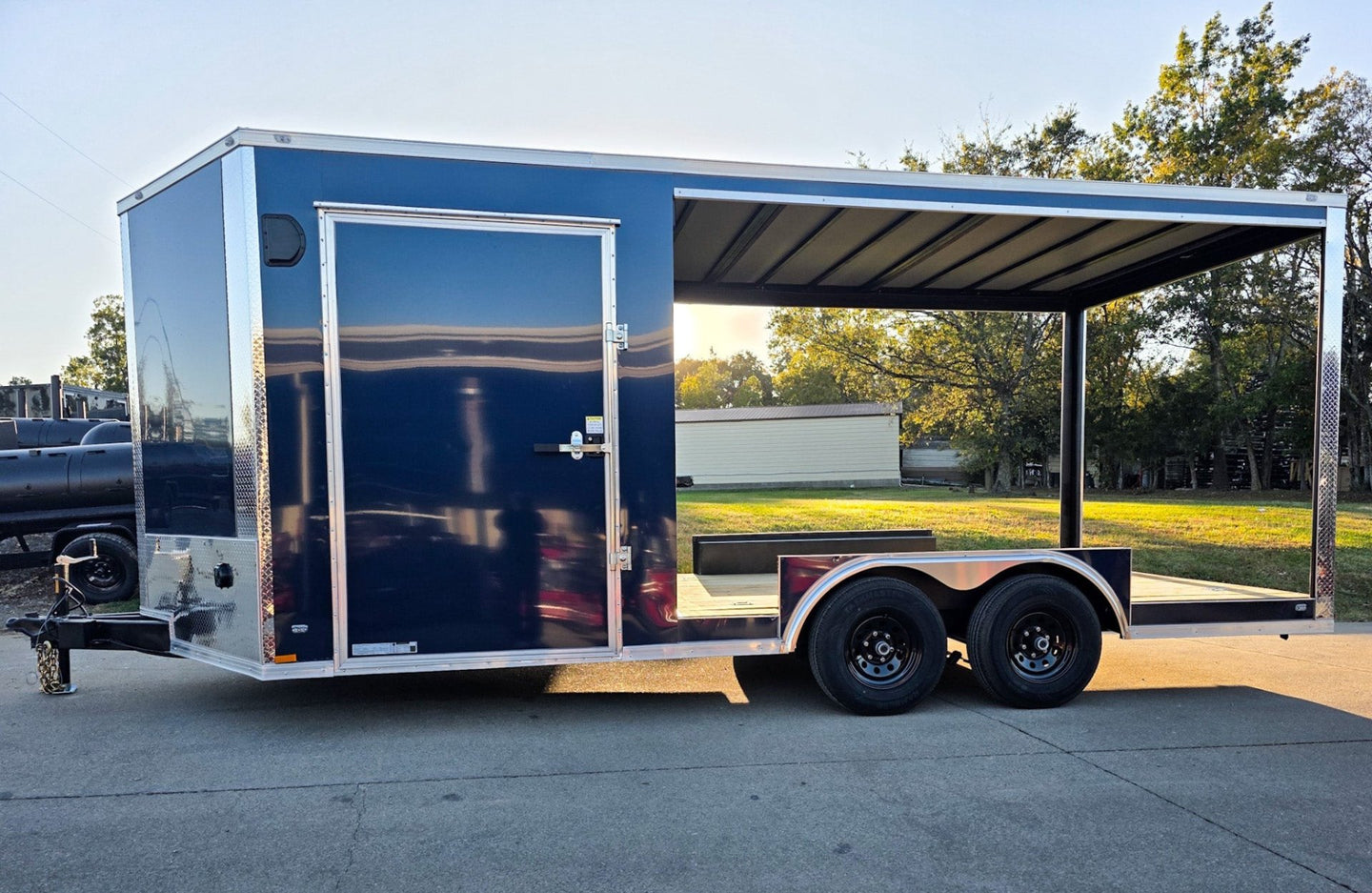

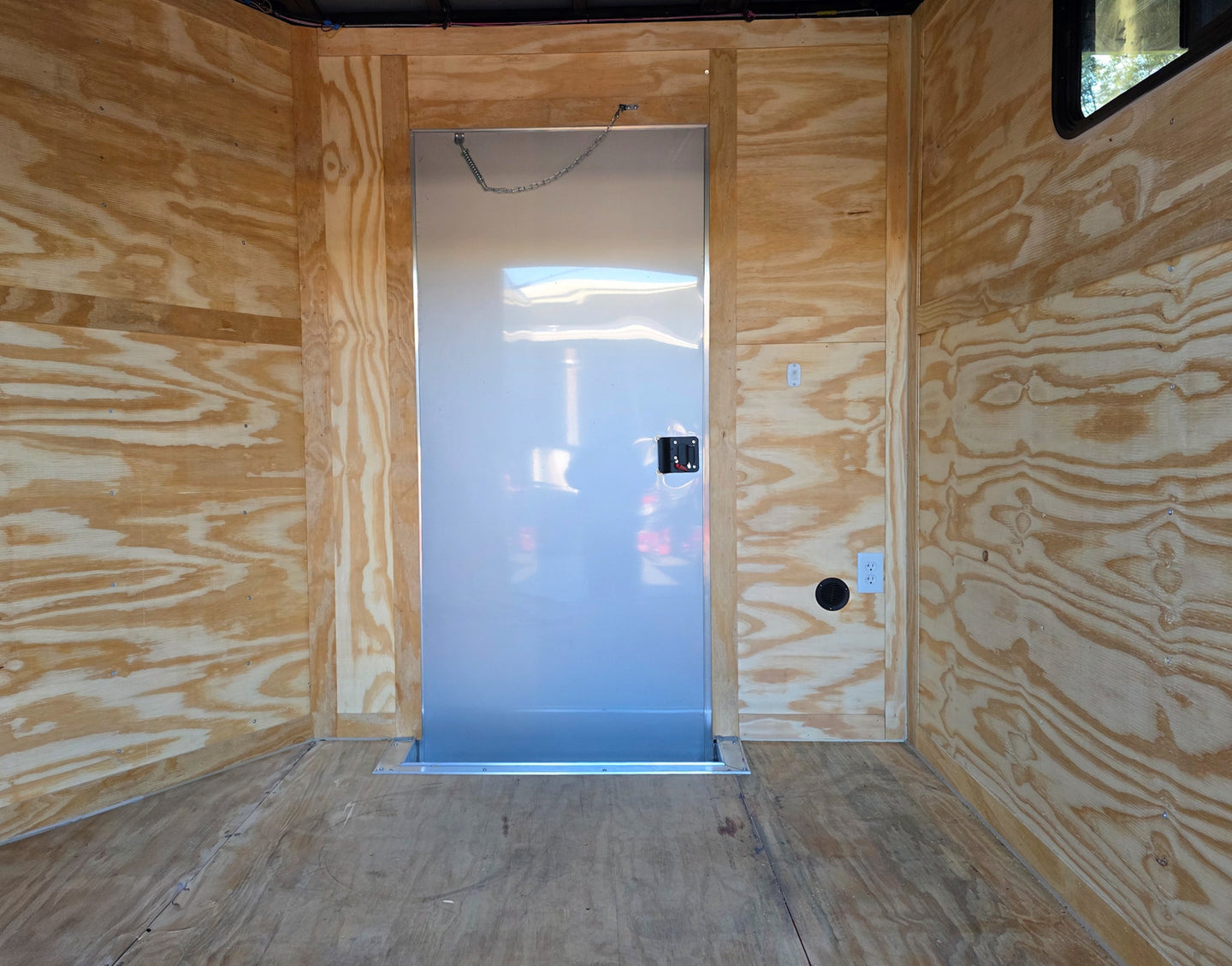

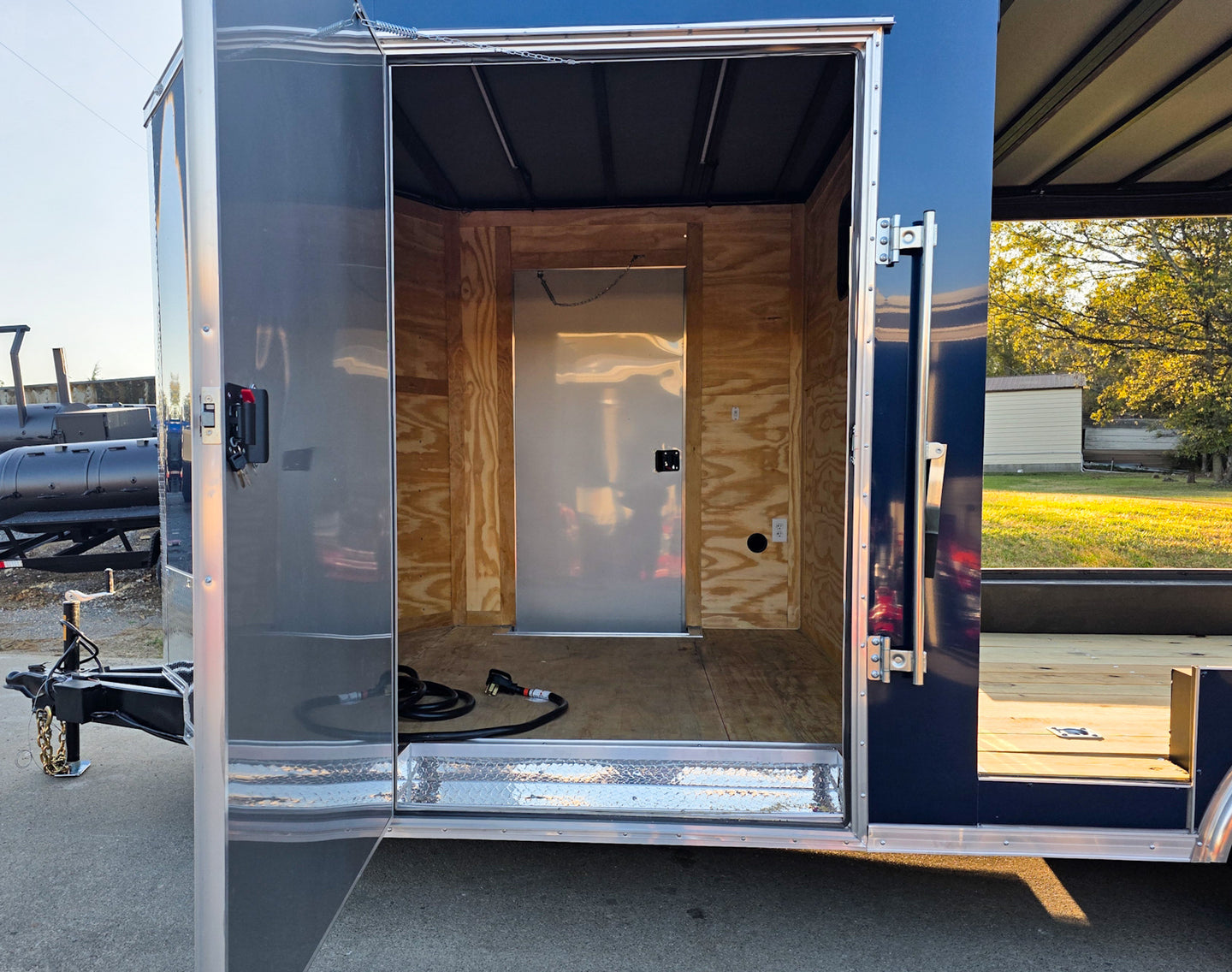

• Driver-Side Door:
  • 48" wide door—ideal for equipment, loading, or additional access.
  • Heavy-duty hinges and gas struts optional.

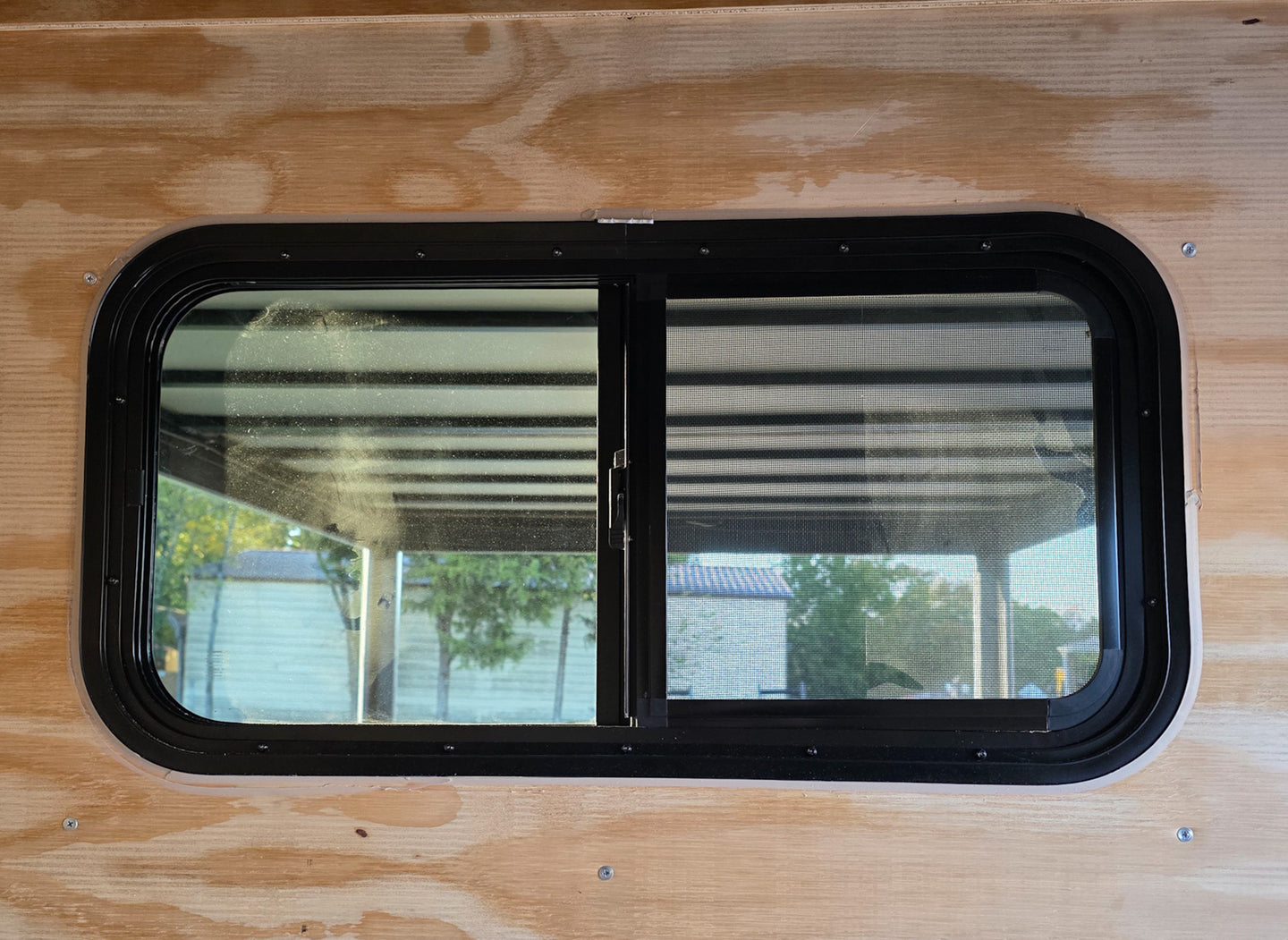

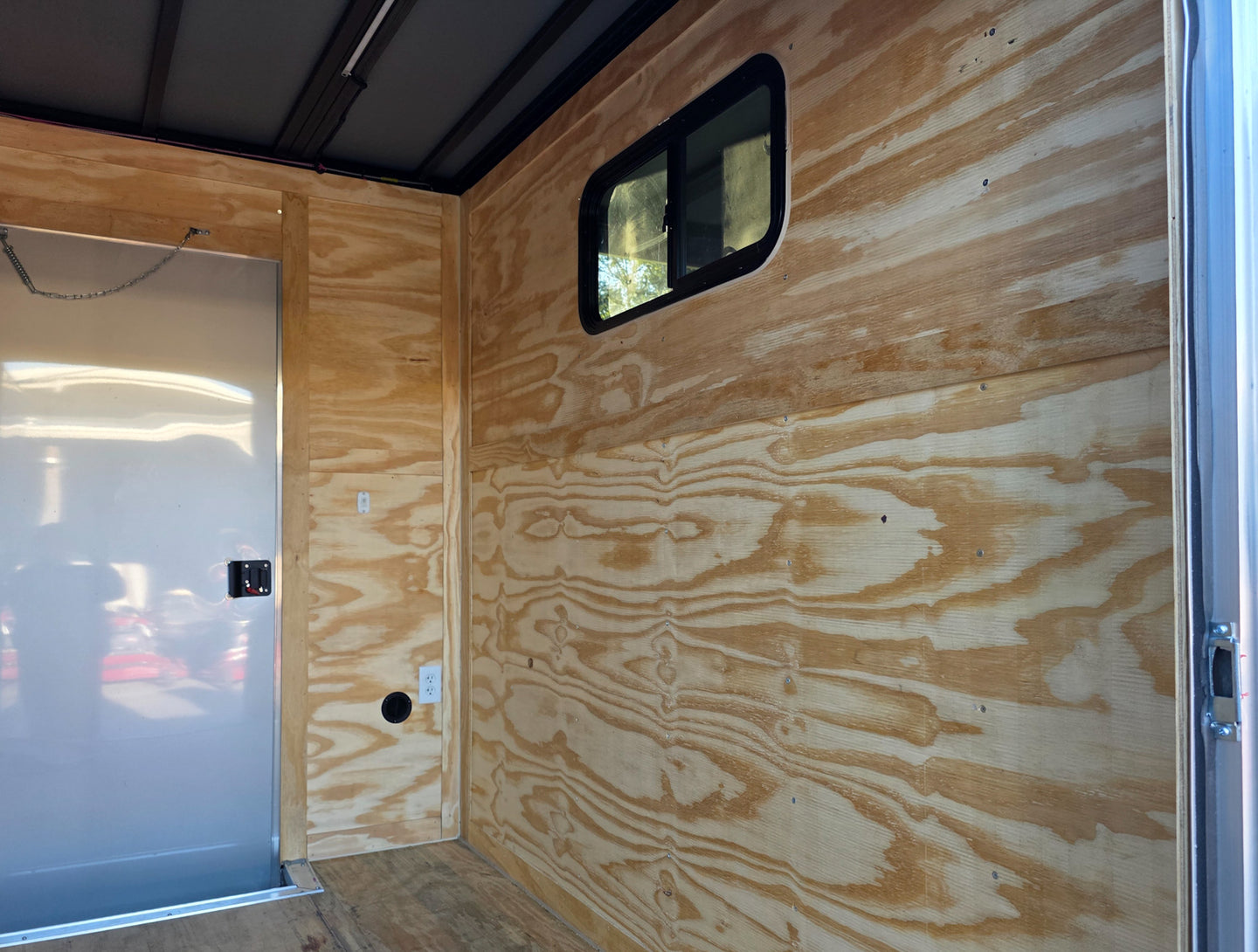

• Rear Window:
  • 15" x 30" fixed pane window centered at eye level.
  • Tinted safety glass with aluminum frame and weather seal.

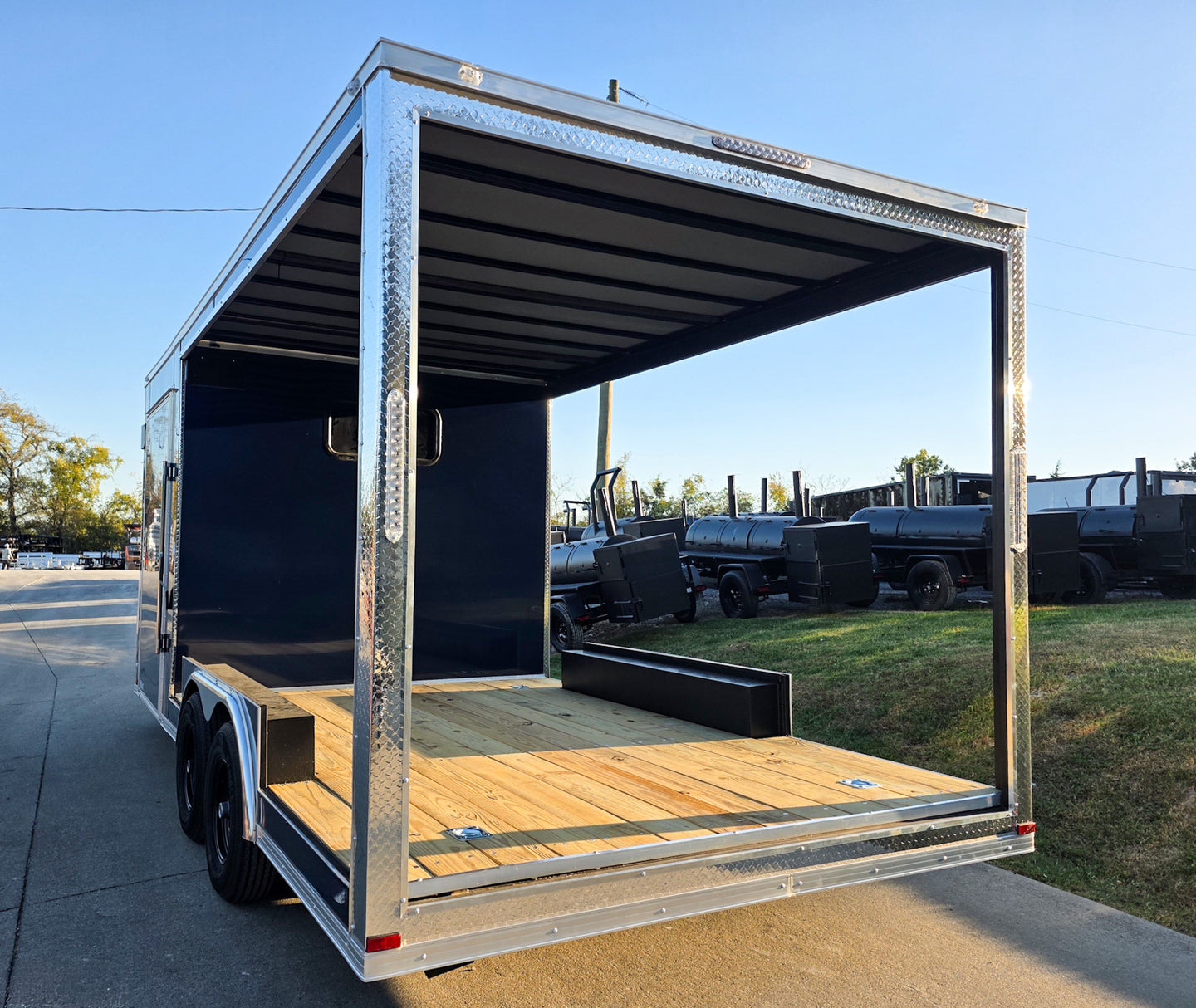

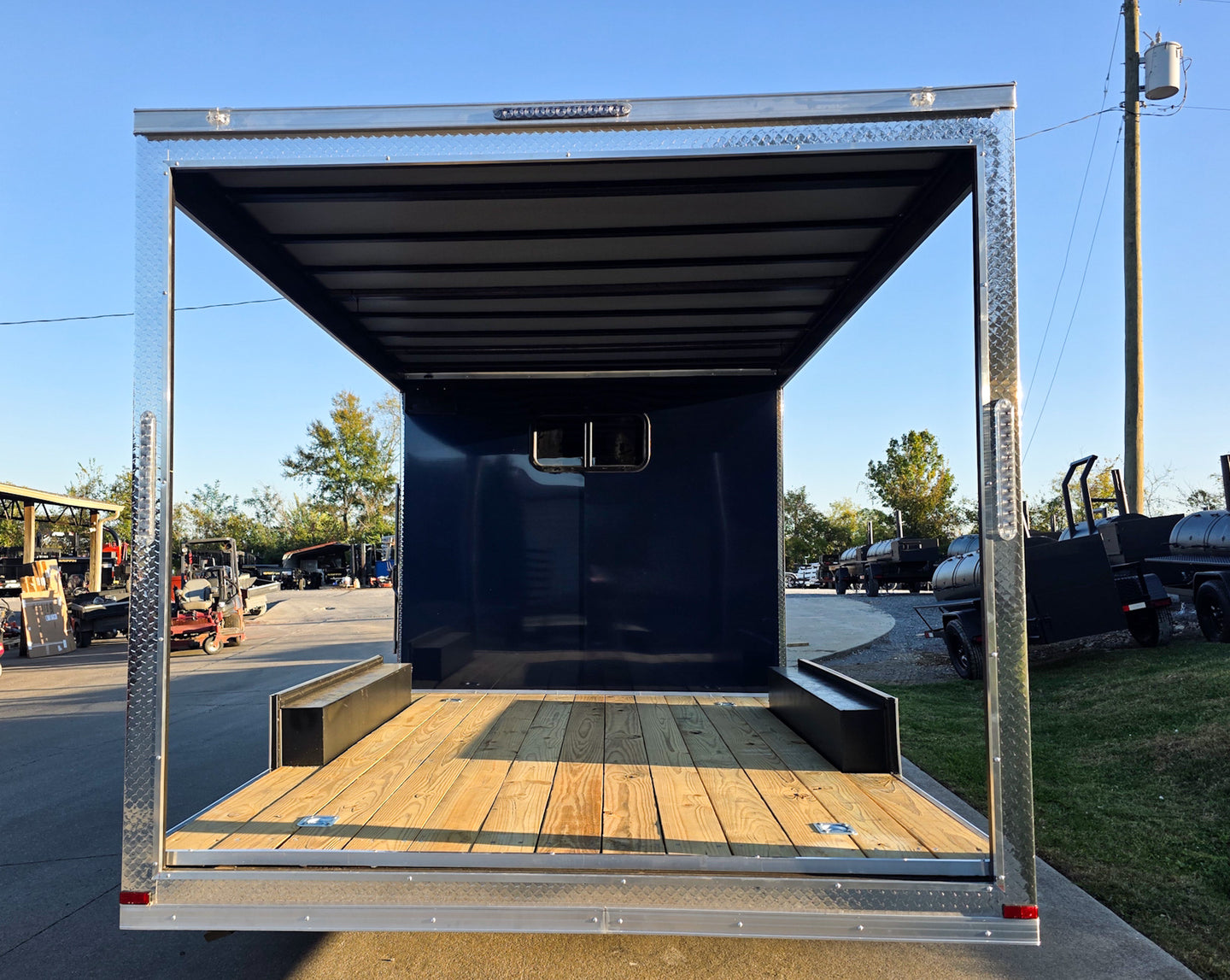

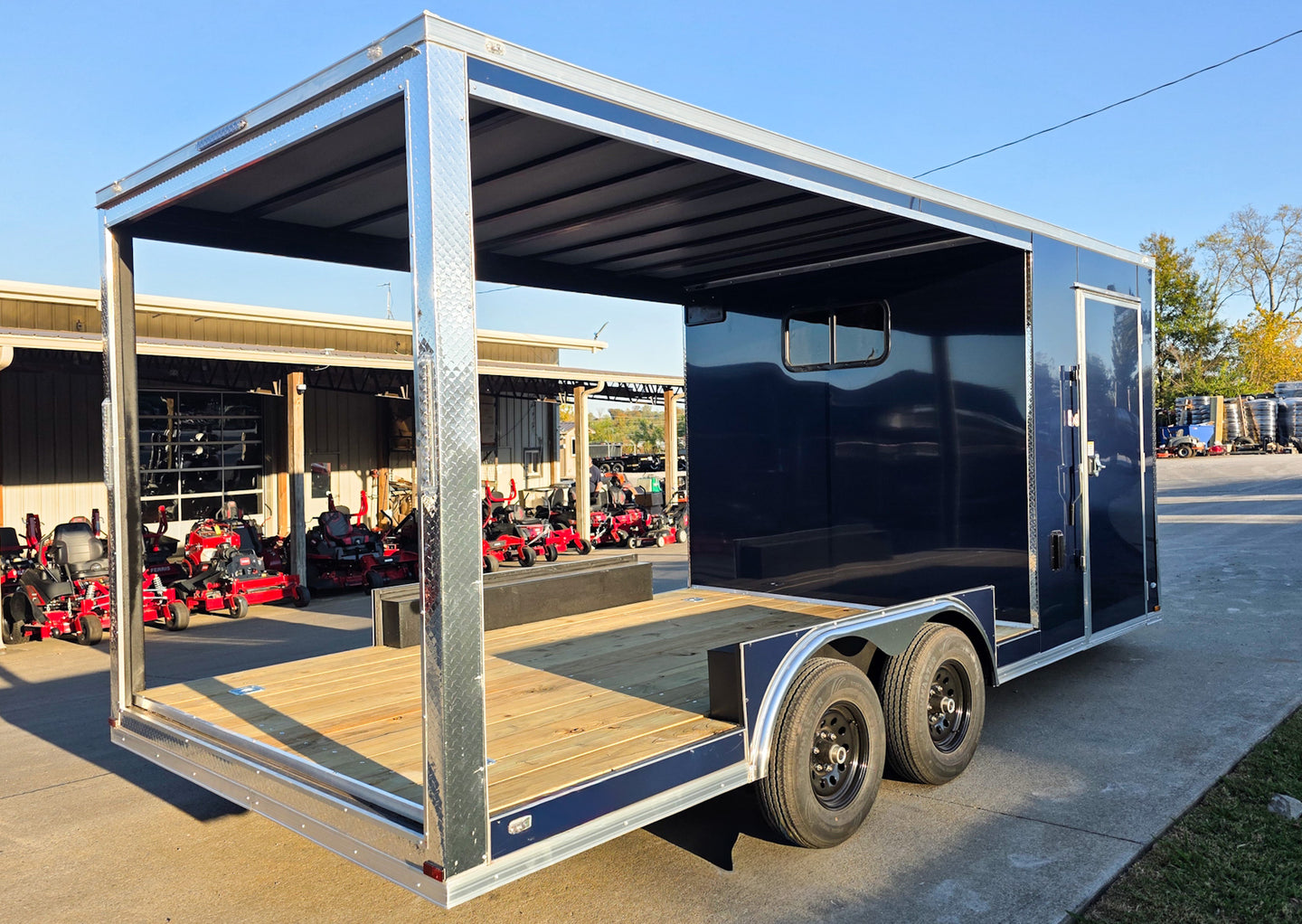

• Length: 12 ft covered open deck (extends from rear of enclosed section).
• Style: Covered roof extension with open sides — no rails.
• Deck Material: 3/4” treated plywood or composite plank flooring.
  • Non-slip textured surface for safety.
• Cover: Extended roof panel matches main trailer material and color.
  • Reinforced structure for rigidity and weather shielding.
• Rails: None (clean-edge deck for easy side loading/unloading).
• Ramp: None (flat platform configuration).
• Service: Complete 50-amp electrical package.
  • Supports both 120V and 240V equipment setups.

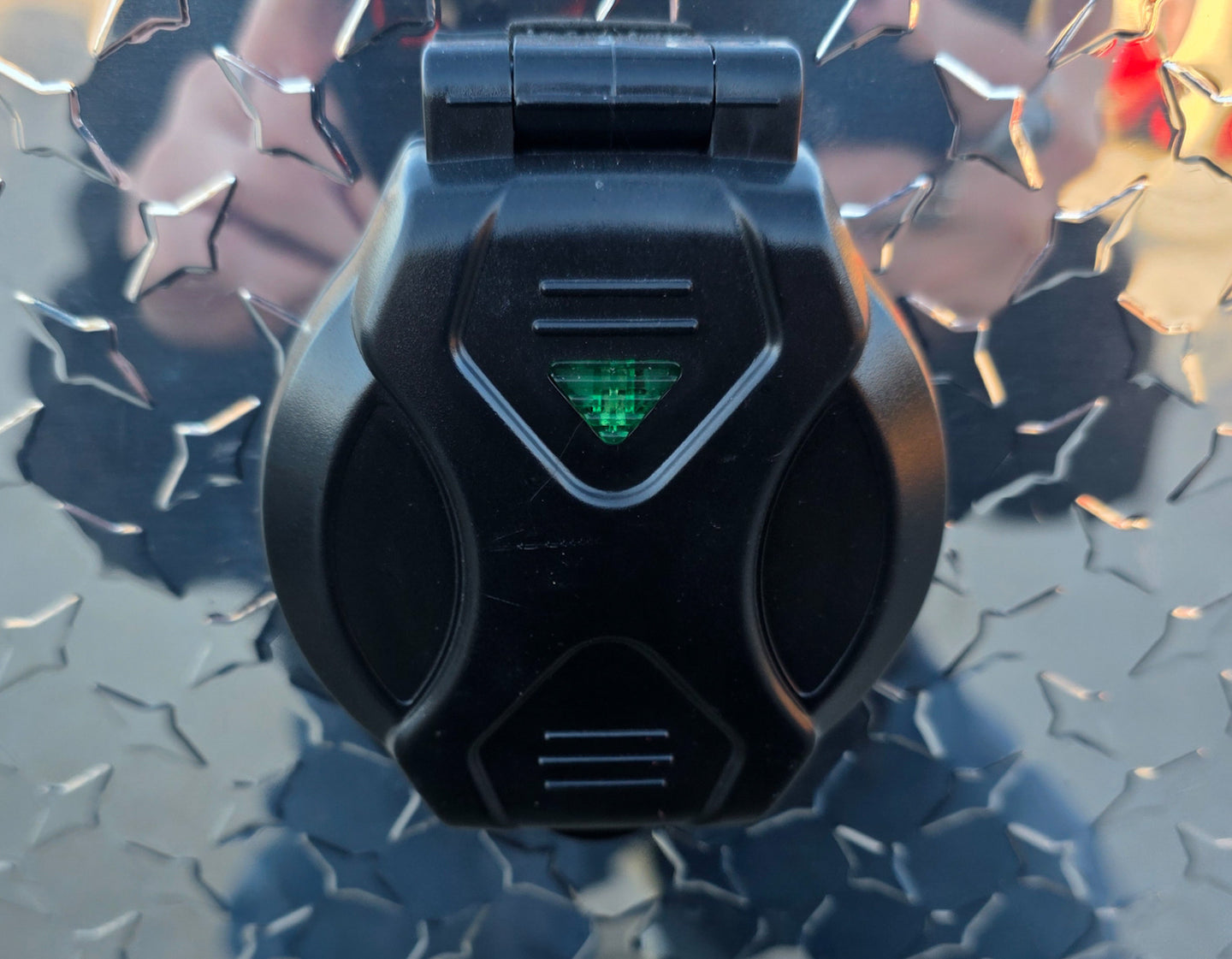

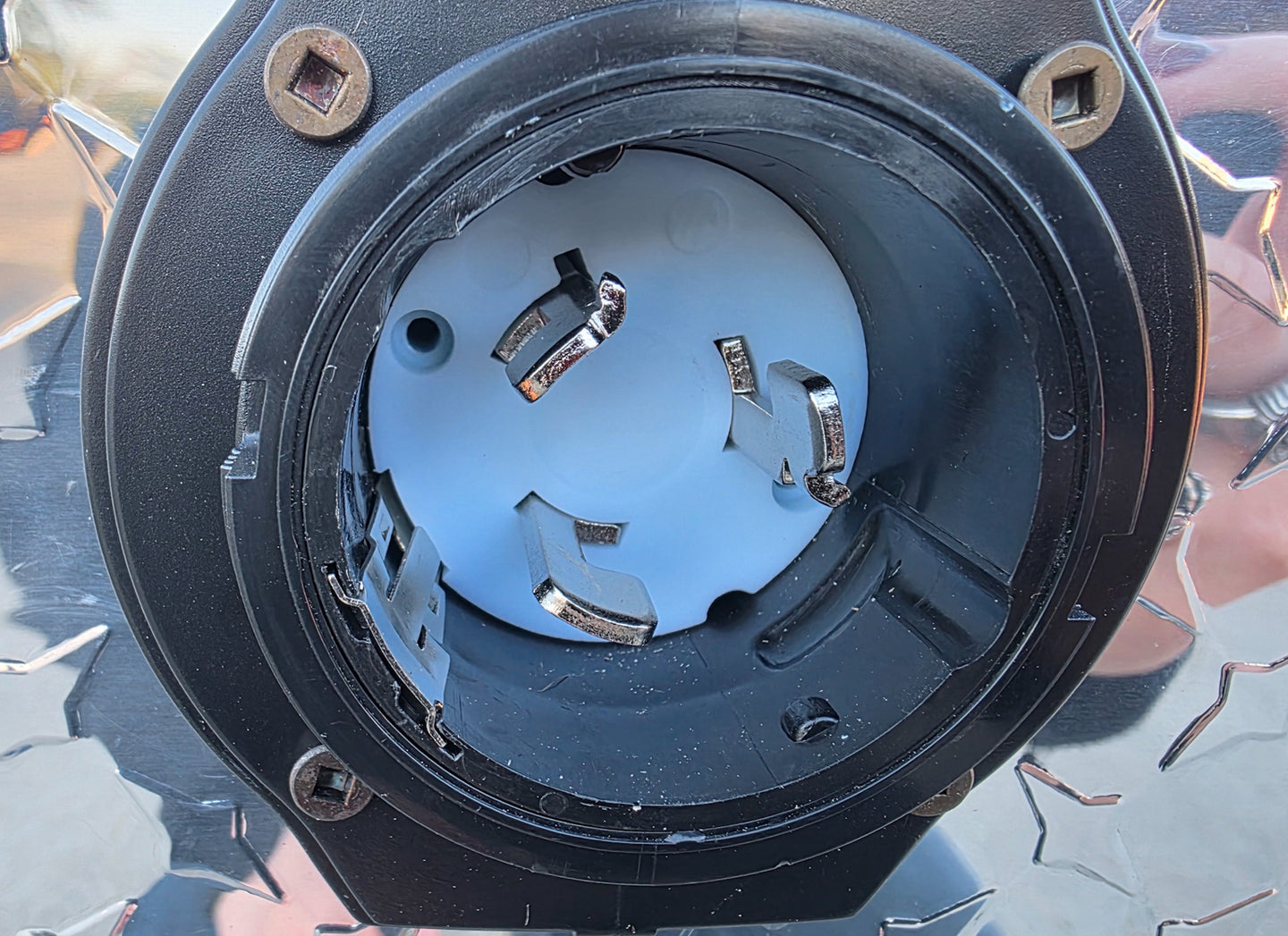

• Power Inlet: 50-amp motor base plug (shore power connection).
• Receptacles: (2) 120V outlets — one mounted in the front and one at the rear.
  • Weatherproof exterior covers and GFCI-protected.

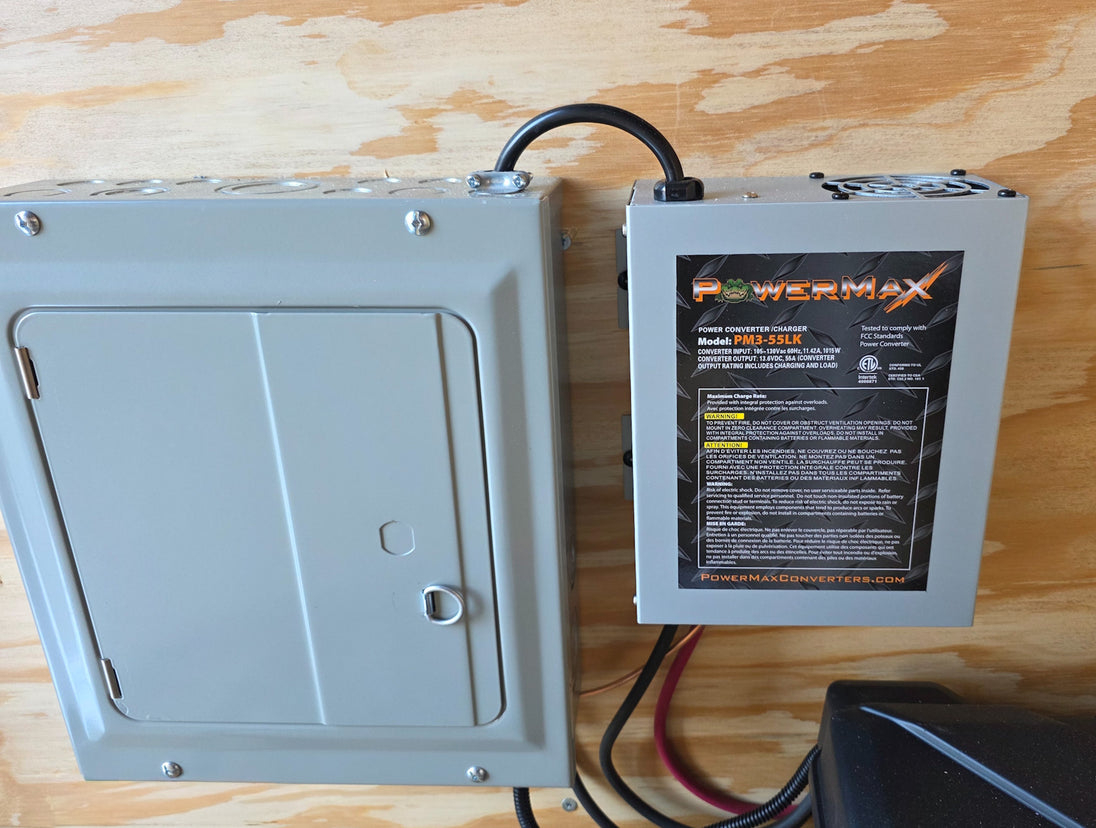

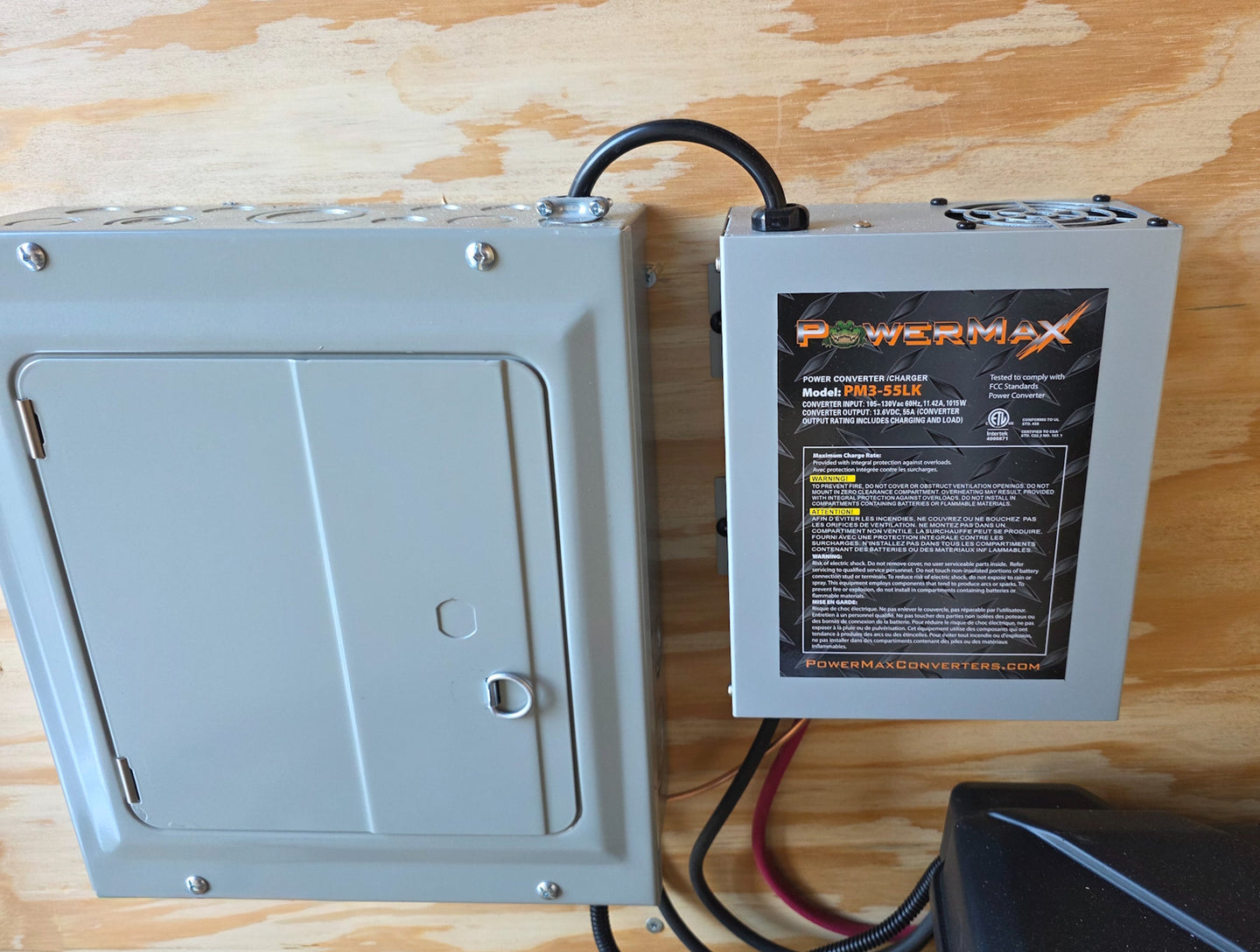

• Breaker Panel: 50-amp panel with breakers, neutral bar, and ground bus.
• Lighting:

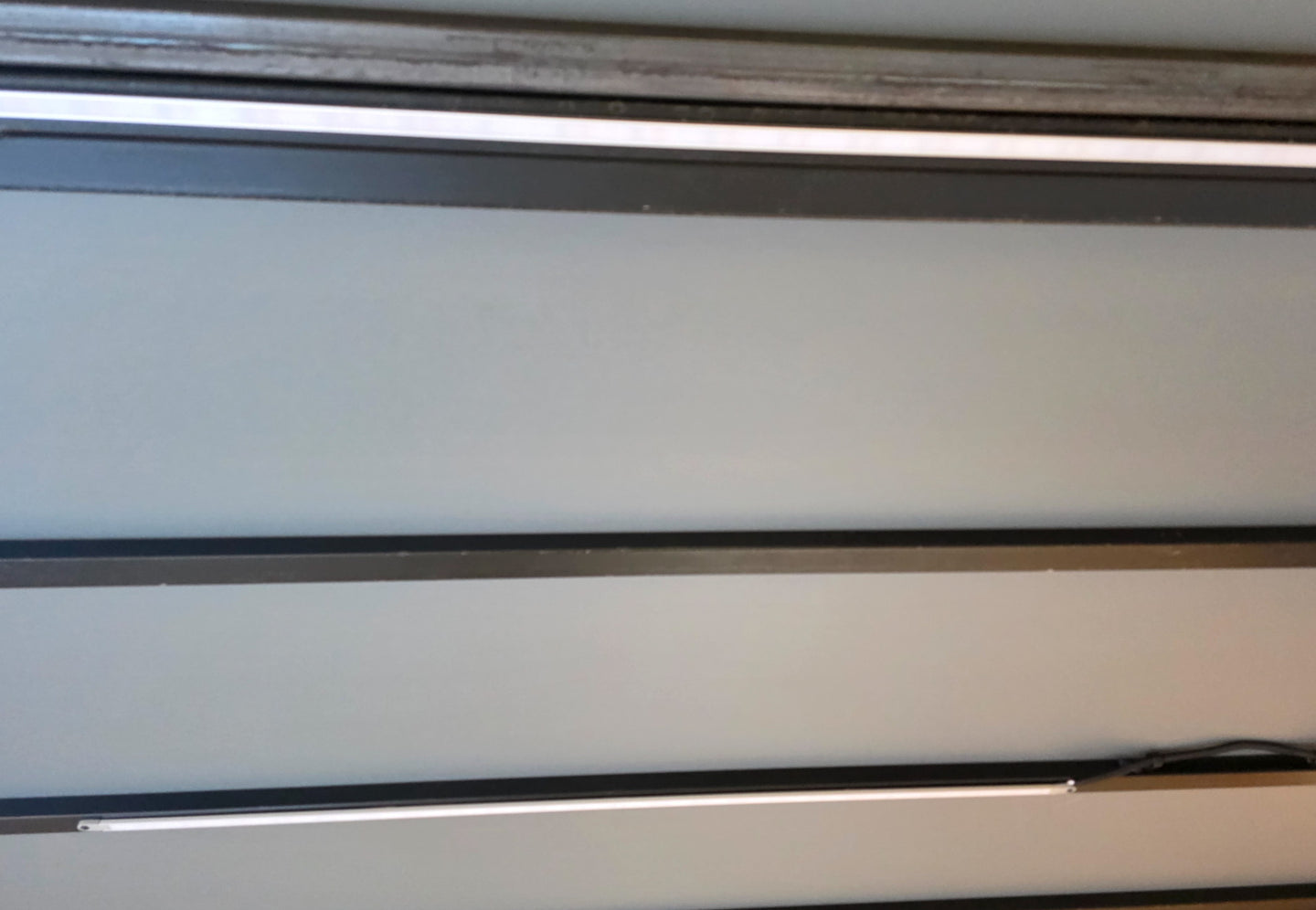

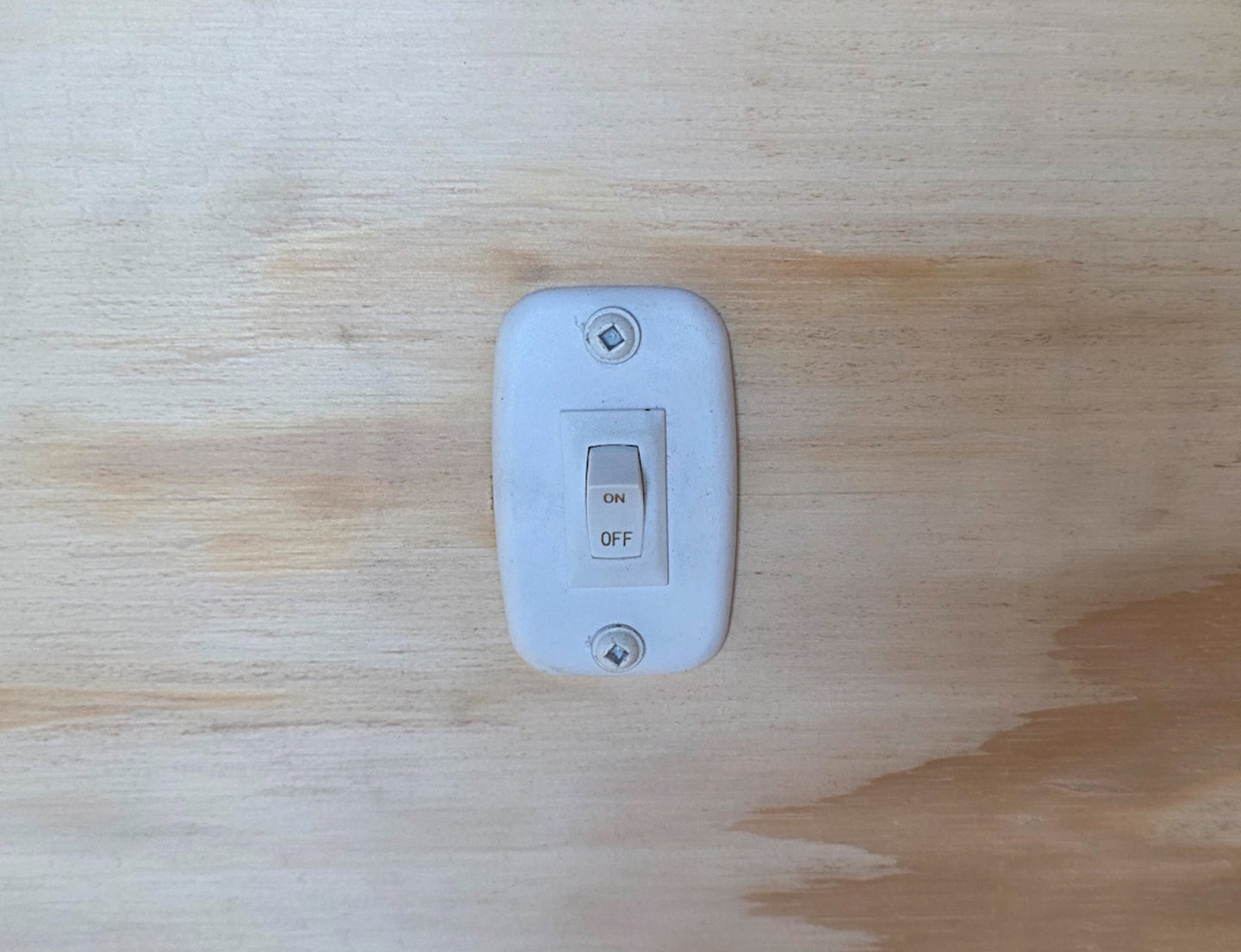

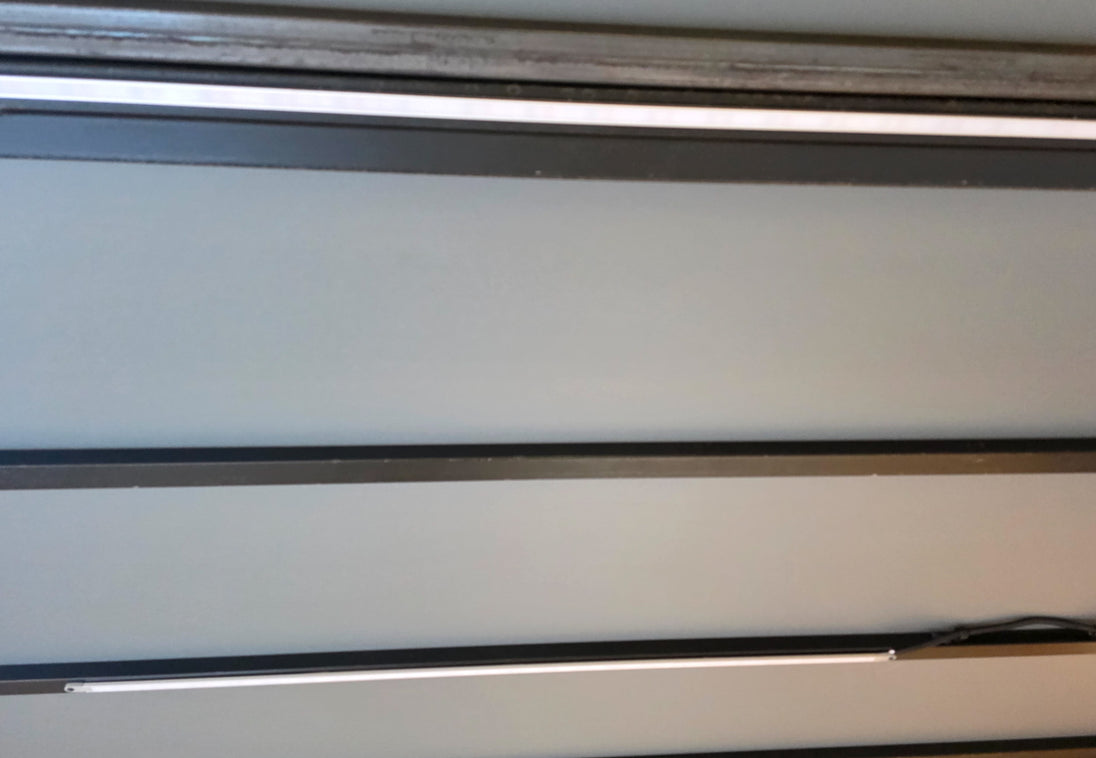

  • Interior: LED dome lights with wall switch.
  • Exterior: LED running, clearance, and license lights.

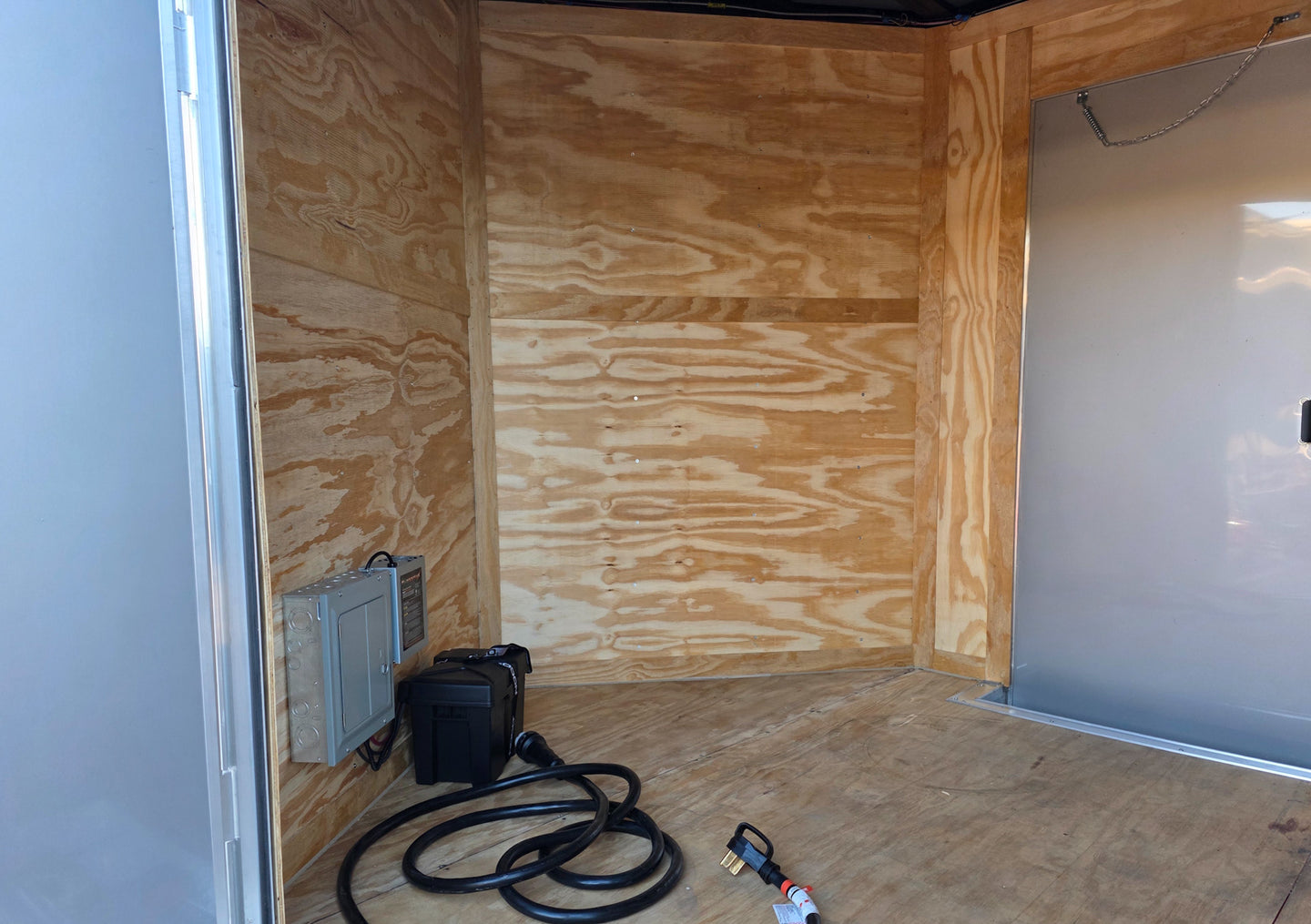

• Walls: Polycore interior finish panels — bright white for light reflection.
  • Low maintenance, moisture-resistant, easy to clean.
• Ceiling: White aluminum or polycore liner.
  • Sealed seams for dust and moisture control.
• Floor: 3/4" plywood or composite core deck flooring, sealed and treated.
• Insulation (Optional): Foam or thermal insulation available for temperature control.
• Tongue: Extended A-frame for improved towing balance and easy access to coupler.

• Jack: 5,000 lb capacity tongue jack with footplate (manual) or electric upgrade option.
