WorldLawn DiamondBack XL 60" Zero Turn Mower 23 HP Kawasaki

SKU WYDB60FS691V34
$111,111.00

This Worldlawn Diamondback XL series zero turn mower features a 60 in. fabricated and reinforced steel deck, a 23 HP Kawasaki FR691V engine, and the Hydro-Gear ZT-3400 transmission. Get the job done with triple layer spindle support and Hydro-Gear transmission.
WorldLawn DiamondBack XL Zero Turn Mower Front Low Right WorldLawn DiamondBack XL Zero Turn Mower Front Low Right WorldLawn DiamondBack XL Zero Turn Mower Front Low Right WorldLawn DiamondBack XL Zero Turn Mower Front Low Right WorldLawn DiamondBack XL Zero Turn Mower Front Low Right WorldLawn DiamondBack XL Zero Turn Mower Front Low Right WorldLawn DiamondBack XL Zero Turn Mower Front Low Right
WorldLawn DiamondBack XL Zero Turn Mower Front Low Right WorldLawn DiamondBack XL Zero Turn Mower Front Low Right WorldLawn DiamondBack XL Zero Turn Mower Front Low Right WorldLawn DiamondBack XL Zero Turn Mower Front Low Right WorldLawn DiamondBack XL Zero Turn Mower Front Low Right WorldLawn DiamondBack XL Zero Turn Mower Front Low Right WorldLawn DiamondBack XL Zero Turn Mower Front Low Right

Product Description

WorldLawn Diamondback XL 60" Zero Turn Mower

Features:

  • 23 HP Kawasaki FR691V Engine

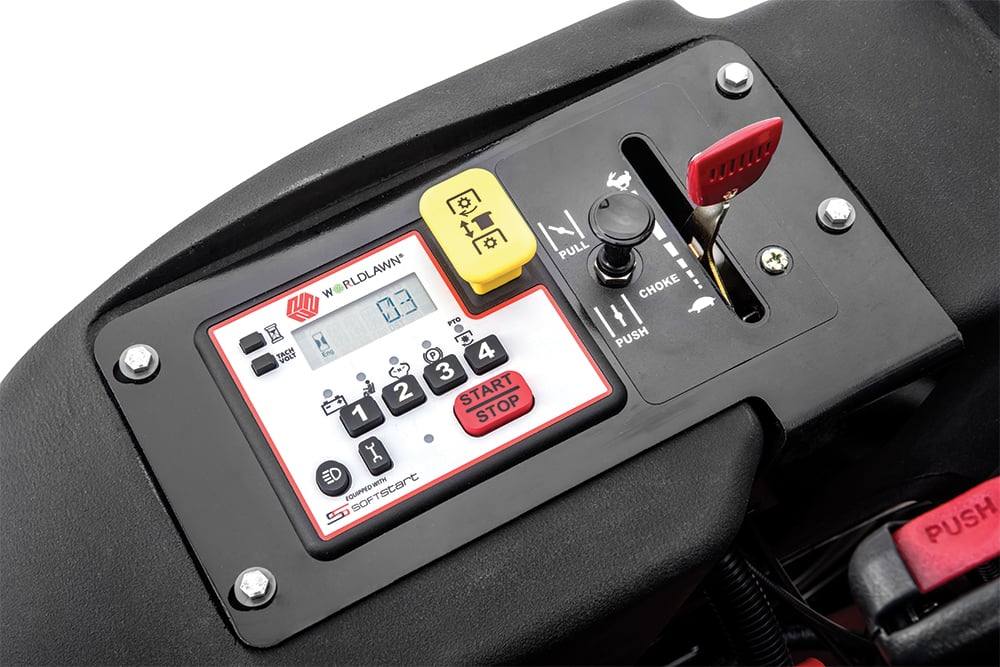

  • GDI Meters Digital Console
  • 9.5 Gallons Fuel Tank Capacity
  • 60 inch Deck, Fabricated and Reinforced
  • Approximately 8 Gauge Steel Construction
  • Three 20.5" Blades
  • Up to 10 mph Forward / 5 mph Reverse
  • Front Tire Size 13-6.50 x 6 Smooth
  • Rear Tire Size 23-10.50 x 12 Turf
  • Hydro-Gear ZT-3400
  • Warner Electric Clutch PTO
  • Integrated Final Drive
  • Vinyl Seat w/ armrests
  • 3 Year Residential Warranty

More Information

Manufacturer: WorldLawn
MPN: WYDB60FS691V34
ConditionNew
Shipping OptionsStore Pickup / Delivery Only Call For Price
Arm RestYes
Blade Tip Speed18,500 FPM
Cutting Deck TypeFabricated
Cutting Height1.5” - 4.75”
Drive SystemHydrostatic
Engine ManufacturerKawasaki
Engine CoolingAir
Engine Size23hp
Fuel Tank Volume9.5 gal
Greaseable SpindleNo
Deck Size60 in
GradeCommercial
Blades3
Oil FilterYes
Positions7
Speed Forward (mph)0-10
Speed Reverse (mph)0-5
Spindle MaterialAluminum
Starting SystemElectric Start
Tire Size Front13-6.50 x 6 Smooth
Tire Size Rear23-10.50 x 12 Turf
Transmission ModelHydro-Gear ZT-3400
Length77.4"
Width73" (Deflector Down) / 61" (Deflector Up)
Warranty3 Year Residential & Commercial Warranty (Unlimited Hours) / 10 Year Limited Deck Shell Warranty / Wear Items (Belts, Blades, etc.) Rubber Goods & Replacement Parts 90 Days / Transmission 2 Year Residential or Commercial Warranty
