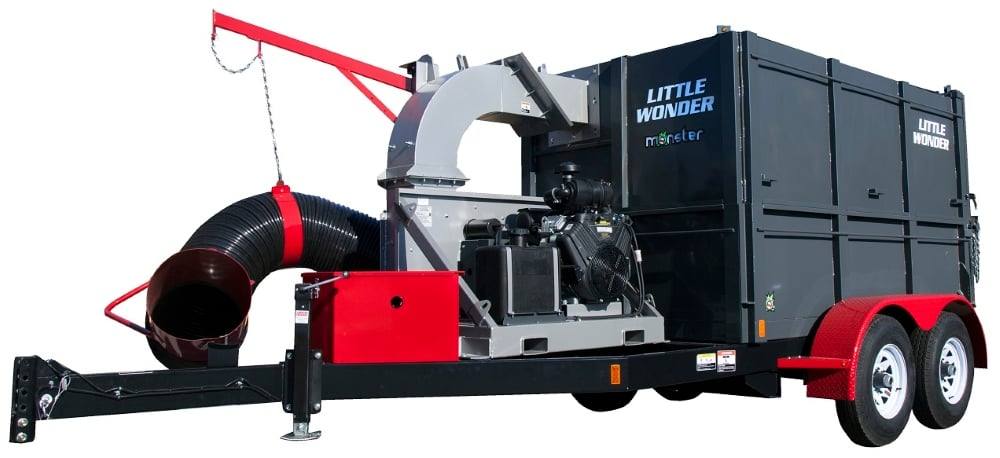

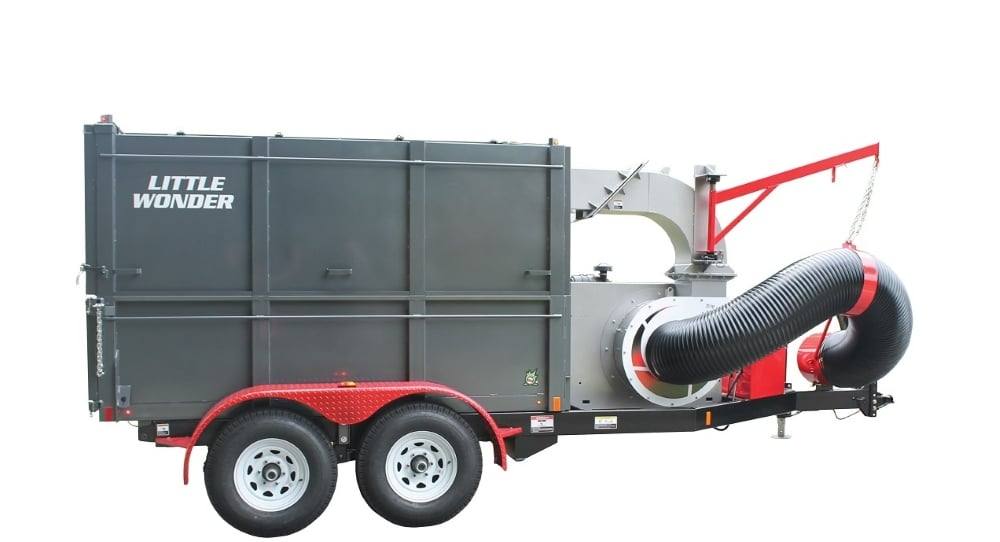

Little Wonder Yanmar 36 HP Diesel Truckloader 83660-05-01

Little Wonder Yanmar 36 HP Diesel Truckloader 83660-05-01

Features:

• 7450 cfm - 36hp Yanmar® Diesel engines
• Teethed steel blades
• Flexible urethane intake hose
• 10 yd. Capacity
• Removable upper wall
• Hydraulic lift
• Two way lower tailgate
• Top hinged upper tailgate
• Built-in Tool box
• DOT Flush Mount LED Lights and Tape
• Dual Dexter EZ-Lube D60 axles
• Load equalizing hanger and electric brakes

Specifications:

• Engine
• Yanmar
• 36 HP
• Fuel Type Diesel
• 12V / 675 CCA Electric Start
• Fuel Capacity 7 Gallons
•  Build
• 10-Yard Hydraulic Dump Trailer
• Hitch 2-5/16" Ball Coupler (Pintel eye optional) w/8000 lb. jack drop leg
• Impeller 4 - 1/2" Steel; Shredding, Teethed; 25" Dia.; Taper-Lock Hub
• Dual 6000 lbs Torflex® Axle
• Tire / Wheel (2) 2400 lb. Loadstar 700 15" radial 6-lug with 5.5" bolt pattern
• Suspension  Leaf slipper spring
• Container Dump Angle 50° Hydraulic lift w/removable upper wall
• Container Doors Two-way lower tailgate. Top hinged upper tailgate
• Container Roof Removable roof screens
• Container Hydraulics 12-volt two-way hydraulic pump w/push button controls
• Flow / Intake / Dishcahrge
• 7450 CFM
• Intake House 16" X 10'
• Discharge Metal; 12" x 6'
• Dimensions
• Housing Liner 1/4" Steel
• Dry Weight 5700 lbs
• Container Capacity 10 yd capacity; 10,000 lbs (5 tons)
• Full dump box 6' x 9' x 5'
• Half dump box 6' x 9' x 2'
• Overall Dimensions 8' W x 19' L
• Unit Weight (GVW) 10,000 lbs. gross vehicle weight
• Additional
• DOT Mount LED Lights; DOT reflective tape; Electrical breakaway kit; Built-in tool box
• Warranty 2 Years
