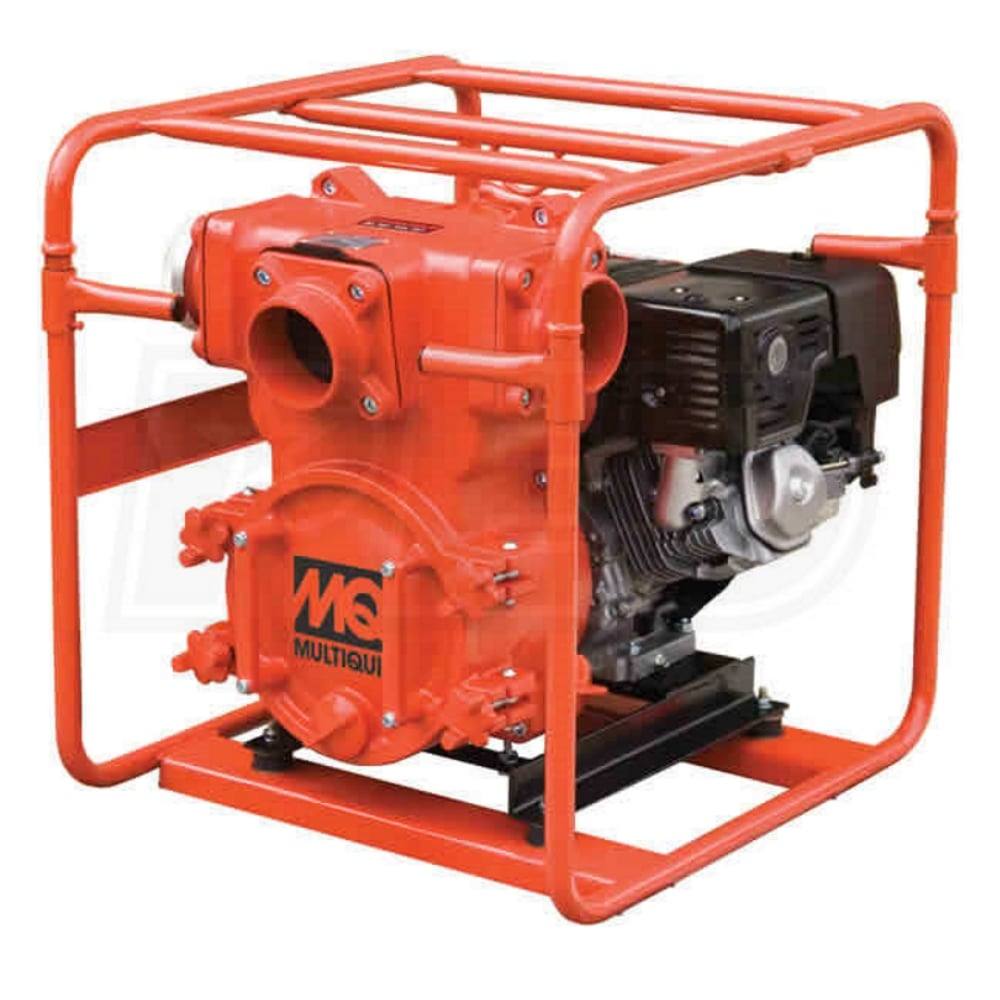

Multiquip QP4TZ - Trash Pump
Multiquip's 4-inch (100 mm) trash pumps move water quickly, quietly and efficiently in a variety of challenging applications. The QP4TZ can be used as a portable unit or mounted on one of several different trailer combinations. Perfect for municipalities and contractors.
Features:
- 4" Suction, Trash Pump, 526 GPM, 85 ft. MAX Head; 9.9 HP Subaru-Hatz 1B40
- Powerful 9.9HP Subaru/Hatz 1B40 diesel engine.
- Pumps water with solid content as large as 2-inch (51 mm) in diameter.
- Dual 4-inch discharge ports to adapt to different applications.
- Maximum Head – 90 ft (27 meters).
- Can pump up to 526 gallons (2000 liters) per minute.
- Silicon/silicon mechanical seal for durability.
- Aluminum body with cast-iron fittings.
- Large cleanout cover removes in seconds without tools.
- Cast Iron impeller and volute for abrasion resistance/long life.
- Volute has a removable stainless steel wear plate.
- Tubular Steel frame for transportation and pump protection.
- Optional Wheel Kit available (UWK4).
Unit Specifications
- Suction x Discharge 4 x 4 in
- 100 x 100 mm
- Max. Water Capacity 555 gpm 2100 lpm
- Max. Lift 25 ft 7.6 m
- Max. Head 92 ft 28 m
- Max. Pressure 40 psi 275 kPA
- Max. Solid Intake 2 in 51 mm
- Fuel Tank Capacity 1.65 Gal 6.5 L
- Optional Wheel Kit UWK4
Dimensions & Weights
- Overall Length 30.1 in 765 mm
- Overall Width 27.3 in 693 mm
- Overall Height 30.7 in 780 mm
- Operating Weight 216 lb 98 kg
