Multiquip WM120SHHD Mortar Mixer Honda GX390QA Engine 12 Cubic Feet with Hydraulic Dump

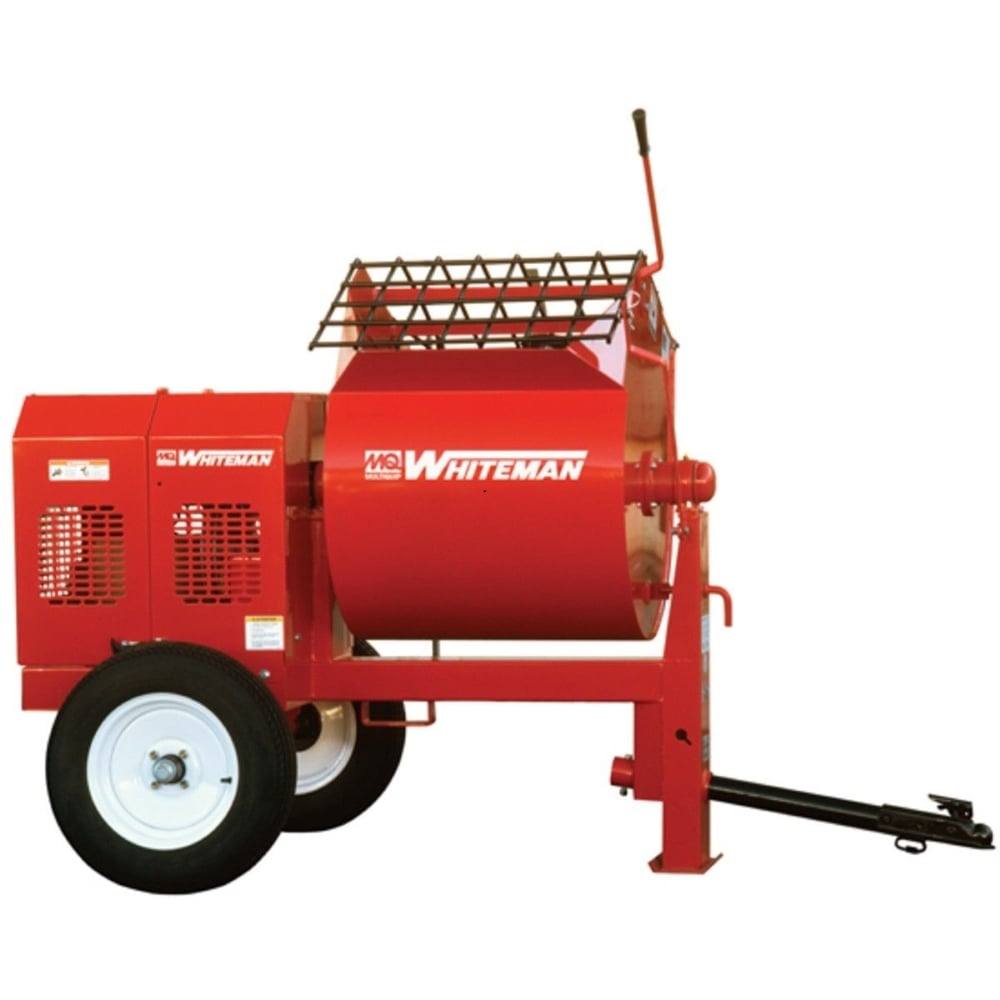

Multiquip WM120SHHD - Mortar Mixer

The Multiquip WM120SHHD is a robust, high-performance, hydraulic-drive portable mixer designed for the largest and most challenging professional masonry and plastering projects.

Hydraulic Power for Heavy Loads: This unit features a powerful hydraulic drive system that provides the necessary torque and reliability to efficiently mix larger, denser, and lower-slump loads of material compared to standard mixers. Discharge is simplified with a smooth hydraulic dump, which ensures high production rates with minimal operator fatigue.

Maximum Capacity and Durability: It features a massive 12 cubic foot (12 cf) mixing capacity, ideal for continuous, large-batch mixing to support the highest-volume commercial crews. The drum is built with heavy-duty steel for superior strength and longevity when mixing abrasive materials.

Tow Bar Included

Features:

Powered by a reliable  Honda GX390 gasoline engine

• Features a dependable Honda GX390 gasoline engine, ensuring reliable, long-lasting performance.

Mixes up to 12 cubic feet (340 liters) of material

• Features a massive mixing capacity of 12 cubic feet (340 liters) for high-volume batch production.

Greatly reduced maintenance - no V-belts, pulleys, clutches or gears

• Engineered for high reliability and greatly reduced maintenance by containing no V-belts, pulleys, clutches, or gears in the drive system.

Hydraulic dump increases production reduces operator fatigue

• Features a hydraulic dump system that increases production rates by ensuring fast, easy material discharge with minimal operator fatigue.

Hydraulic drive mixes larger lower slump loads - ideal for high-production requirements

• The robust hydraulic drive system is engineered to mix challenging larger, lower-slump loads, making it ideal for meeting high-production requirements.

Unit Specifications

• Drive System Hydraulic
• Drum Capacity 12 cu. ft
• 339.8 L
• 3 1/2 - 4 bags
• Dump Type Hydraulic
• Discharge Height 17 in 430 mm
• Drum Type Steel
• Drum Wrap Thickness 7
• Engine Cover Thickness 14
• Tire Size B78x13
• Frame Type Tubular
• Paint Type Powder coat
• Power Source Honda 13 HP model GX390

Dimensions & Weights

• Overall Length 82 in 2082.8 mm
• Overall Width 51 in 1295.4 mm
• Overall Height 60 in 1520 mm
• Overall Height
• w/Dump Handle 75 in 1910 mm
• Operating Weight 1090 lb 494.4 kg

Engine Specifications

• Engine Make/Model Honda GX-390
• Start Method Recoil
• Engine Power 11 HP 8.2 kW
• Engine RPM 3600
• Fuel Type Gasoline
