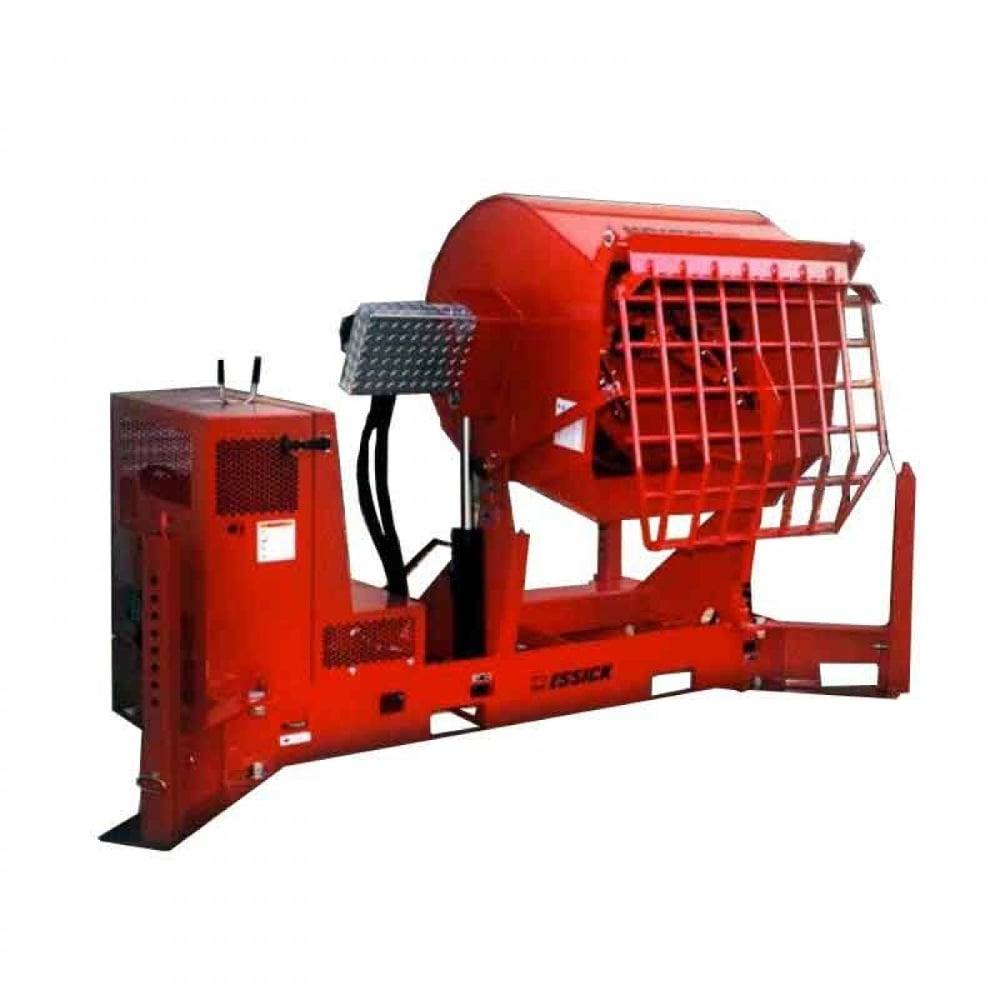

Multiquip PRO12E53 Essick Plaster & Mortar Mixer 12 Cubic Feet

Multiquip PRO12E53 - Mortar Mixer

For almost 90 years MQ Essick plaster / mortar mixers have set the standard for innovation and durability. The 12 cubic foot capacity PRO12 series increases contractor productivity in applications using on-site silo dispensing systems. The PRO12E53 uses a powerful hydraulic drive to power through the toughest mix designs. A unique over-center dump design easily discharges material into large mud tubs with minimal operator fatigue.

Features:

Reduced fatigue by enabling operator to load at waist level. Ergonomically designed to load low and dump high.

• Ergonomically designed for efficiency: Allows the operator to load at waist level (reducing fatigue) and features a high-dump capability for easy material discharge.

Adapt to any job site, while maintaining a compact footprint, with 130° swing-away stabilizers.

• Adaptable to any job site: The unit features 130\degree swing-away stabilizers that ensure maximum stability while maintaining a compact footprint.

Extra thick 1/4" steel drum wrap with 3/8" ends resists wear and dents.

• The drum is constructed with heavy-duty steel: 1/4  thick wrap and 3/8  reinforced ends ensure maximum resilience and longevity against heavy loads.

Adjustable height - discharge height 24" ~ 42.5".

• Features an adjustable discharge height with a versatile range from 24 up to 42.5, adapting to various receptacles.

Easily fits in a standard pickup truck bed with its compact design with inboard hydraulic motor.

• Easily fits in a standard pickup truck bed thanks to its compact design and the space-saving inboard hydraulic motor placement.

Costly waste is reduced by a spill plate that directs excess material into the tub.

• Reduces costly material waste with an integrated spill plate that efficiently directs any excess material back into the mixing tub.

Tackle stiff mix designs, and handle up to 1-inch aggregate, with a powerful hydraulic drive.

• The powerful hydraulic drive system allows the mixer to easily tackle stiff mix designs and handle aggregate materials up to 1  in size.

Convenient access forklift pockets from any side of the mixer.

• Features forklift pockets accessible from any side (or "omni-directional"), ensuring maximum versatility and ease of loading/unloading.

Drive and dump controls easily accessible and located above the motor cowling.

• Features easily accessible drive and dump controls, conveniently located above the motor cowling for quick and effortless operation.

Greasable paddle shaft seal provides long service life.

• Features a greasable paddle shaft seal that simplifies routine maintenance and ensures long service life for the shaft assembly.

Unit Specifications

• Capacity 12 ft³ 340 L
• Bags 3-4
• Max. Aggregate Size 1 in 25.4 mm
• Adjustable Drum Discharge Height Up to 42.5 inches
• Drive System Hydraulic
• Dump Action Hydraulic

Dimensions & Weights

• Overall Length 73.5 in 1917.7 mm
• Overall Width 35.0 in 889 mm
• Overall Height 45.0 in 1143 mm
• Operating Weight 1580 lb 716.68 kg

Electric Motor Specifications

• Electric Motor Make/Model Teco Westinghouse
• Electric Motor Power 5.0 HP
• Voltage 230V V
• Phase Three Phase (3Ø)
