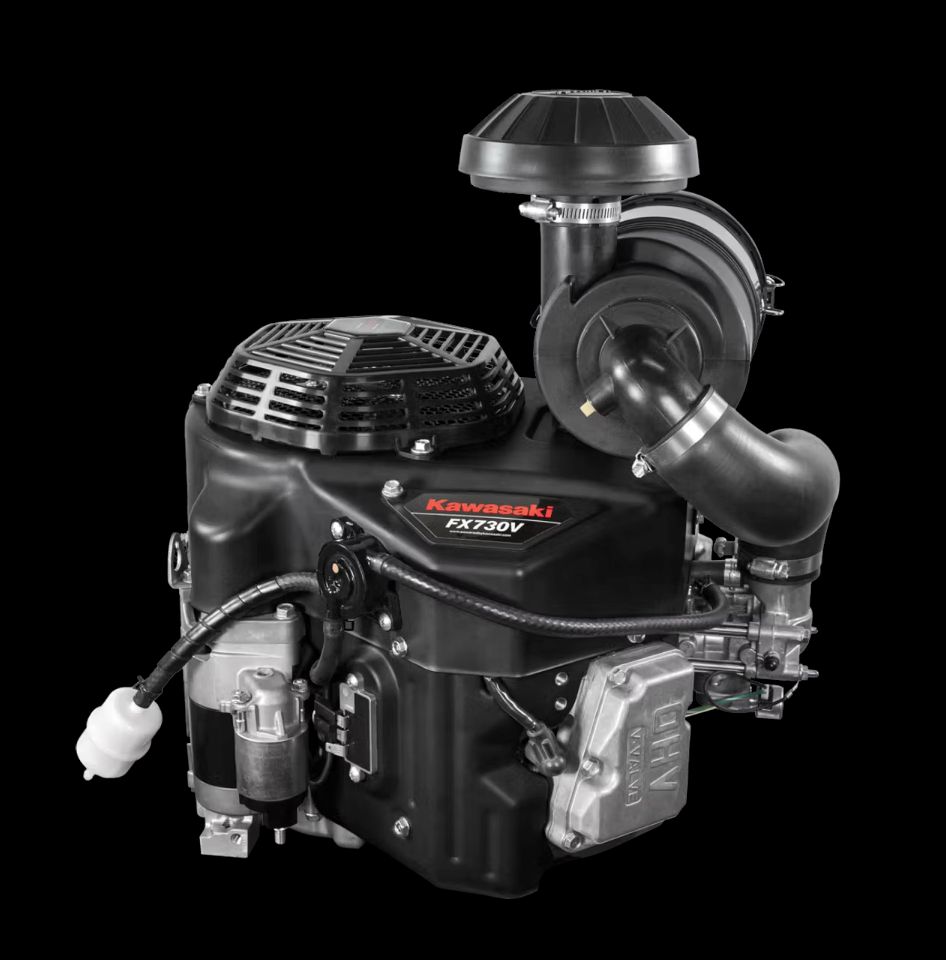

Kawasaki FX730V-CR08-S 23.5HP V-Twin Vertical Shaft Engine Electric Start

Overhead v-valve

• This 726cc commercial engine utilizes a V-valve overhead layout to maximize volumetric efficiency. This design choice reduces the cylinder head’s surface-to-volume ratio, which minimizes heat absorption and allows for larger intake and exhaust valves. The result is an engine that "breathes" better under heavy loads, ensuring the FX730V maintains peak torque during long hours of operation in high-ambient temperatures.

90° V-twin

• The FX730V utilizes a 90-degree V-Twin configuration to achieve a perfect primary balance. By aligning the cylinders at a right angle, Kawasaki eliminates the need for heavy internal balance shafts, allowing for a more compact and efficient 726cc engine block. This geometry optimizes the firing interval for consistent torque delivery and ensures superior airflow around both cylinder heads for balanced cooling performance.

Pressurized lubrication system

• Engineered for high-hour commercial duty cycles, the FX730V utilizes a positive-displacement pressure pump to maintain oil film integrity under extreme loads. This system includes a premium, automotive-style spin-on filter that constantly scrubs the oil of microscopic contaminants. This forced-circulation architecture is essential for thermal regulation, effectively pulling heat away from the engine's core to ensure long-term mechanical reliability.

Electronic spark ignition

• The FX730V features a solid-state electronic ignition system designed for surgical precision. By removing mechanical wear points like points or condensers, this system provides a stable, optimized ignition curve across the entire RPM range. This ensures complete fuel combustion in the 726cc chambers, resulting in smoother idling and immediate throttle response when moving into heavy, thick grass.

Automatic compression releaseRotating metal grass chopper screen

• The FX730V features an integrated centrifugal compression relief system that optimizes cranking torque. By reducing effective compression at low RPMs, the system allows for high-turnover speeds with lower amperage draw. Once the engine fires, it automatically disengages to allow for full power and maximum combustion efficiency.

Multi-Stage canister air filter

• The FX730V is equipped with a high-volume multi-stage air cleaner engineered for maximum contaminant separation. The cyclonic action of the canister housing sheds 90% of heavy particles before they even reach the media, while the dual-element architecture provides a failsafe barrier against fine silica. This ensures the 726cc V-Twin maintains peak volumetric efficiency and a significantly longer service life in extreme commercial environments.

Cast-iron cylinder liners

• The FX730V is engineered with high-density cast-iron liners to ensure superior dimensional stability during prolonged duty cycles. The porous nature of the iron enhances oil retention, significantly reducing internal friction and preventing cylinder scuffing. This construction is vital for maintaining a perfect piston ring seal and peak volumetric efficiency throughout the extended service life of this 726cc commercial block.

Metal engine cover with integrated clean out ports

• The FX730V utilizes a high-gauge metal engine enclosure designed for superior heat dissipation and impact resistance. The shroud is engineered with built-in clean-out ports, facilitating the rapid removal of organic material from the cylinder cooling fins. This design prevents the formation of "hot spots" and ensures consistent thermal regulation of the 726cc V-Twin block during high-ambient temperature operations.

Heavy duty shift-type starter

• Experience car-like starting reliability with this industrial-strength starter motor. Specifically engineered for the rigorous start-stop cycles of professional landscaping, the shift-type mechanism ensures positive gear engagement before the motor spins. This prevents gear clashing, protects your flywheel, and provides the high-torque cranking power needed to bring your 23.5HP V-Twin to life instantly, every time.
