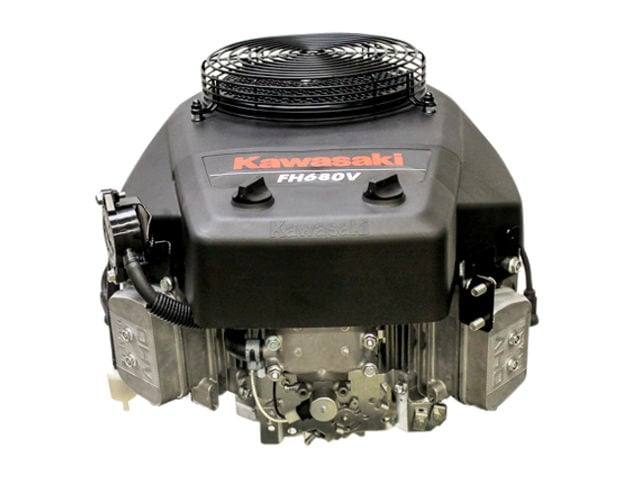

Kawasaki 23 HP Vertical Engine FH680V-(J)S01-S
The Kawasaki FH680V-JS01-S is a commercial-grade 23 HP vertical shaft engine built for high-performance zero-turn mowers and industrial equipment. Part of the legendary FH Series, this 90° V-Twin engine is engineered for maximum torque and long-term durability, featuring cast-iron cylinder liners and a full-pressure lubrication system to handle the rigors of all-day professional use.
Features:
V-Twin
- Engineered with a 90° V-Twin configuration, this design provides a naturally balanced power stroke that significantly reduces engine vibration while delivering high-torque performance for smooth, professional operation.
Vertical PTO Shaft
- Features a vertical Power Take-Off (PTO) shaft, the industry-standard orientation for seamless integration with zero-turn mowers and equipment where the drive pulleys are located beneath the engine deck.
Cast Iron Cylinder Liners
- Built with heavy-duty cast iron cylinder sleeves, this engine offers superior wear resistance and thermal stability, ensuring long-term durability for demanding commercial applications.
Overhead Valves (OHV)
- The overhead valve (OHV) architecture optimizes engine breathing for more efficient combustion, resulting in improved fuel economy, lower emissions, and cooler operating temperatures.
Float Type Carburetor
- Utilizes a precision float-style carburetor to maintain a consistent fuel supply to the combustion chamber, ensuring stable engine performance across a wide range of throttle settings.
Fixed Main Jet
- Equipped with a factory-calibrated fixed main jet, which provides a constant, optimal air-fuel mixture for peak performance without the need for manual adjustments.
Pulse Type Fuel Pump
- Includes a vacuum-actuated pulse fuel pump, engineered to deliver a steady and reliable flow of gasoline from the tank to the engine, even when operating on steep inclines.
Flywheel Magneto Transistor Type Ignition System
- Features a solid-state transistorized ignition system powered by a flywheel magneto, ensuring maintenance-free operation and a high-intensity spark for dependable starts.
Full Pressure Lubrication System
- Utilizes an automotive-grade full-pressure lubrication system that forces oil directly to critical internal bearings, providing maximum protection under heavy loads and high-heat conditions.
Spin-On Oil Filter
- Comes with a high-efficiency spin-on oil filter, allowing for quick, mess-free maintenance while effectively capturing contaminants to prolong engine life.
Dual Element Air Cleaner
- Protected by a dual-element air filtration system, which uses both a foam pre-cleaner and a pleated paper filter to provide two layers of defense against dust and airborne debris.
Bendix Type Electric Starter
- Equipped with a Bendix-style electric starter motor, which provides positive and powerful engagement with the flywheel for rapid, reliable engine cranking every time.
12v-13a Charging Coil w/ Regulator
- Includes a high-output 13-amp charging system with an integrated regulator to maintain your battery's charge and power accessories like electric PTO clutches.
72.5 mm Cylinder Bore
- Features a 72.5 mm cylinder bore, precision-machined to provide a stable environment for the pistons while contributing to the engine’s $675\text{cc}$ displacement.
76 mm Piston Stroke
- Designed with a 76 mm piston stroke, a "long-stroke" configuration that prioritizes the high torque needed to maintain consistent blade speed through thick, heavy turf.
