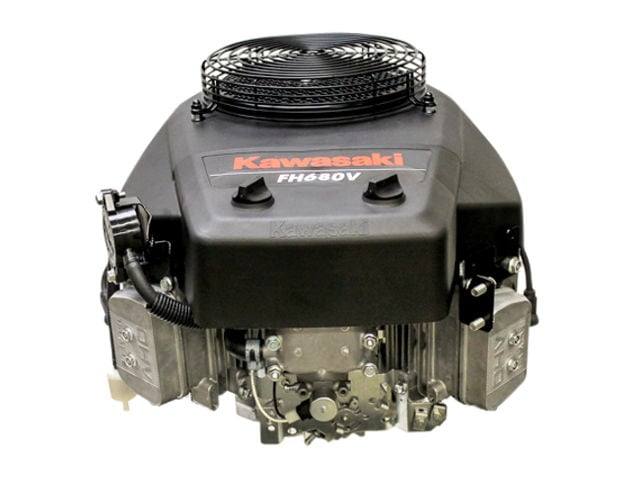

Kawasaki 23 HP Vertical Engine FH680V-(G)S32-S
The Kawasaki FH680V-GS32-S is a robust 23 HP vertical shaft engine from the legendary FH Series, specifically engineered for commercial-grade zero-turn mowers and high-utilization landscaping equipment. Known for its "workhorse" reputation, this 4-stroke engine utilizes a 90° V-twin overhead valve (OHV) architecture, which delivers exceptional torque and power while maintaining a smooth, low-vibration operation that reduces operator fatigue
Features:
V-Twin
-
Engineered with a 90° V-Twin architecture, this layout provides a naturally balanced power stroke that minimizes internal vibration while delivering the high-torque performance necessary for demanding commercial tasks
Vertical PTO shaft
-
Equipped with a vertical Power Take-Off (PTO) shaft, making it the ideal orientation for zero-turn mowers and equipment where the drive pulleys or hydraulic pumps are located directly beneath the engine
Cast iron cylinder liners
-
Built for professional-grade durability, the heavy-duty cast iron cylinder sleeves provide a rugged, wear-resistant surface that significantly extends engine life and improves oil control compared to standard aluminum bores.
Overhead valves (OHV)
-
The overhead valve (OHV) design enhances engine breathing by placing the valves directly above the combustion chamber, resulting in superior thermal efficiency, lower fuel consumption, and cooler operating temperatures.
Float type carburetor
- Utilizes a precision float-style carburetor to maintain a steady and reliable fuel supply, ensuring the engine stays primed and responsive even during rapid changes in throttle position.
Fixed main jet
-
Features a factory-calibrated fixed main jet, which is pre-set to provide the optimal air-fuel ratio, ensuring consistent power output without the need for manual tuning or the risk of running lean.
Pulse type fuel pump
-
Includes a vacuum-driven pulse fuel pump, which uses engine pressure to ensure a continuous and reliable flow of gasoline from the mower’s fuel tank, even when working on steep hills or uneven terrain.
Flywheel magneto transistor type ignition system
-
Equipped with a solid-state transistorized ignition system, which uses a flywheel-mounted magneto to generate a consistent, high-intensity spark for maintenance-free operation and easy starts.
Full pressure lubrication system
-
Features an automotive-grade full-pressure lubrication system with a high-capacity pump that forces oil directly to the engine's most critical bearings, providing maximum protection under heavy commercial loads.
Spin-on oil filter
-
Includes a high-efficiency spin-on oil filter, making routine maintenance quick and clean while ensuring microscopic contaminants are removed to prevent premature internal engine wear.
H. D. Canister air filter
-
Protected by a Heavy-Duty (H.D.) canister-style air cleaner, designed to capture fine particulates in extremely dusty environments, ensuring only purified air enters the intake to protect the cylinder walls.
Shift type electric starter
-
Utilizes a shift-type electric starter motor for positive gear engagement with the flywheel, providing high cranking torque for rapid and dependable engine ignition every time.
12v-13a charging coil w/ regulator
- Equipped with a high-output 13-amp charging system and a voltage regulator to keep your machine’s battery topped up and provide steady power for electric PTO clutches and auxiliary equipment.
72.5 mm cylinder bore
-
Features a 72.5 mm cylinder bore, precision-machined to provide a stable environment for the pistons while contributing to the engine’s $675\text{cc}$ displacement.
76 mm piston stroke
- Designed with a 76 mm piston stroke, a configuration that prioritizes long-stroke leverage to generate the high torque needed to maintain blade speed in thick, heavy grass.
8.1:1 compression ratio
-
Engineered with an 8.1:1 compression ratio, offering a perfect balance between high power efficiency and the ability to run smoothly on standard 87-octane pump gasoline.
2,400 rpm of torque
- Specifically tuned to reach its peak torque output at 2,400 RPM, ensuring the engine has its maximum "pulling power" exactly where it’s needed during heavy cutting or load-bearing operations.
