Kawasaki Motor Corp. USA

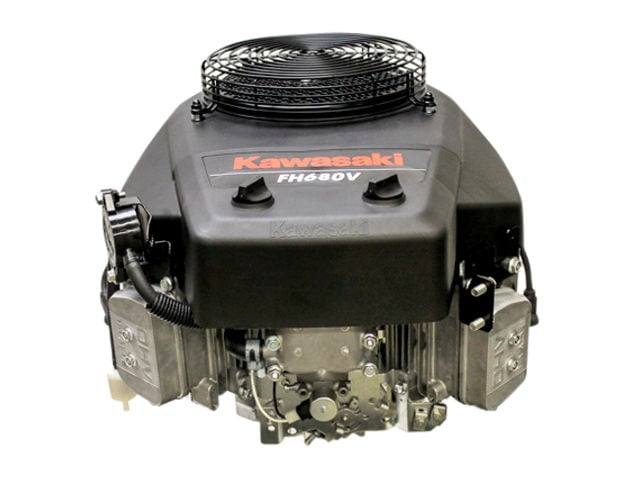

Kawasaki 23 HP Vertical Engine FH680V-(G)S28-S

SKU FH680V-(G)S28-S

Regular price: $2,100.00

Delivery Cost: $275.0

The Kawasaki FH680V-(G)S28-S is a 0.68 l (675 cc, 41.19 cu-in) V-twin 90° air-cooled 4-stroke internal combustion small gasoline motor with vertical PTO shaft. The FH680V has a V-twin 90° design with cast iron cylinder liners and overhead valves (OHV). The engine is equipped with float type carburetor with fixed main jet; pulse type fuel pump and flywheel magneto transistor type ignition system.

Quantity

Regular price: $2,100.00

Customers also bought

Product Description

Kawasaki 23 HP Vertical Engine FH680V-(G)S28-S

Features:

V-Twin
Vertical PTO shaft
Cast iron cylinder liners
Overhead valves (OHV)
Float type carburetor
Fixed main jet
Pulse type fuel pump
Flywheel magneto transistor type ignition system
Full pressure lubrication system
Spin-on oil filter
Dual element air cleaner
Bendix type electric starter
12v-13a charging coil w/ regulator
72.5 mm cylinder bore
76 mm piston stroke
8.1:1 compression ratio
2,400 rpm of torque

More Information

Manufacturer:	Kawasaki Motor Corp. USA
MPN:	FH680V-(G)S28-S
Condition	New
Shipping Options	Standard Delivery
Oil tank volume	1.6 L
Cylinder Displacement	675 cm 3 (41.2 cu-in)
Engine Cooling	Air
Engine Size	23hp
Engine Type	4-Stroke
# of Cylinders	2
Shaft Position	Vertical
Starting System	Electric Start
Warranty	3 year manufacturer warranty
