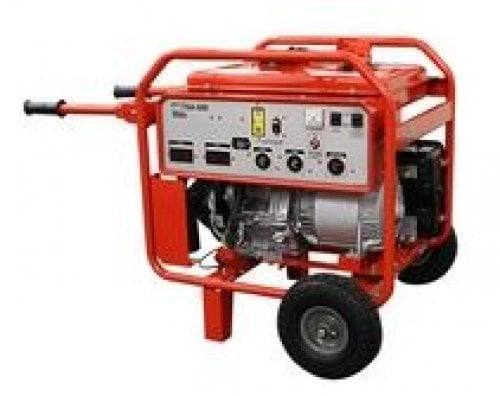

Multiquip GA6HR Portable Generator
6 kW, 120/240V, Honda
Multiquip GA6HR Portable Generator is a power source that is versatile enough to handle changing requirements. It is powered by Honda's GX-340 engine with low-oil shutdown and automatic idle control.
- Brushless generator design requiring less maintenance
- Full panel GFCI protection - OSHA and NEC compliant
- 100% copper windings for maximum conductivity
- Wheel kit - Hour meter - Folding lifting bale are now standard equipment
- Powered by Honda's GX-340 engine with low-oil shutdown and automatic idle control.
- Twin duplex receptacles and three T-Lock receptacles for job site versatility
- Heavy-duty 1-inch (25 mm) steel pipe frame and shock mounts protect the generator
- Lightweight and compact design for easy transport
Unit Specifications
| Alternator Design |
Brushless |
| Frequency |
60 hz |
| Phase |
Single Phase |
| Voltage |
120/240 V |
| Sound level at 30 ft |
75 dBA |
| Fuel Tank Capacity |
5 gal |
19 L |
Power Generation
| |
Maximum |
Continuous |
| Watts |
6000 W |
5000 W |
| Amps at 120V |
50 A |
41.6 A |
| Amps at 240V |
25 A |
20.8 A |
Receptacles & Circuit Breakers
| Main Circuit Breaker |
23 A |
| Number of Poles |
2 |
| 1 Receptacle of Each: |
L5-20R 125V T-Lock 20A
L5-30R 125V T-Lock 30A
L14-30R 125/250V T-Lock 30A
|
| 2 Receptacle of Each: |
5-20R 125V GFCI 20A |
