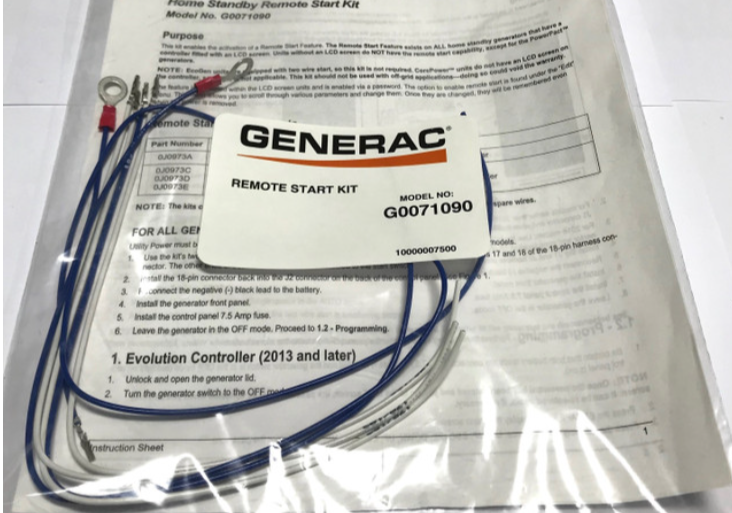

Generac 7109 - 2 Wire Start Kit For Standby Generators

Generac 7109 -  2 Wire Start Kit For Standby Generators

The Generac Part 7109 Two Wire Start Kit is a crucial electrical accessory designed to maximize the flexibility and compatibility of many Generac air-cooled home standby generators. It is primarily used to bypass the generator's standard utility-sensing start mechanism. The core function of the Generac 7109 kit is to enable the "Two-Wire Start" (also known as "Remote Start") feature on compatible Generac standby generators.

Features

Remote Start Capability (Primary Feature):

• Enables the core functionality to start and stop the generator using a simple, low-voltage two-wire contact closure signal.

Non-Generac System Integration:

• Allows the generator to be reliably controlled by third-party Automatic Transfer Switches (ATS), inverter systems (like solar or battery backup), or custom control panels.

Solar/Battery Compatibility:

• Essential for use with solar energy systems (e.g., Enphase, Outback) that require the generator to start automatically when the battery bank charge reaches a low level.

Simple Start/Stop Logic:

•  Operates based on universal signal logic: the generator starts when the two wires are connected/closed (dry contact), and stops when the wires are disconnected/opened.

Installation Flexibility:

• Provides a cost-effective alternative to purchasing a Generac-specific transfer switch when a suitable third-party ATS is already in place.

Controller Compatibility:

• Primarily designed for use with Generac Air-Cooled Standby Generators featuring the Evolution™ Controller (and some PowerPact controllers).
