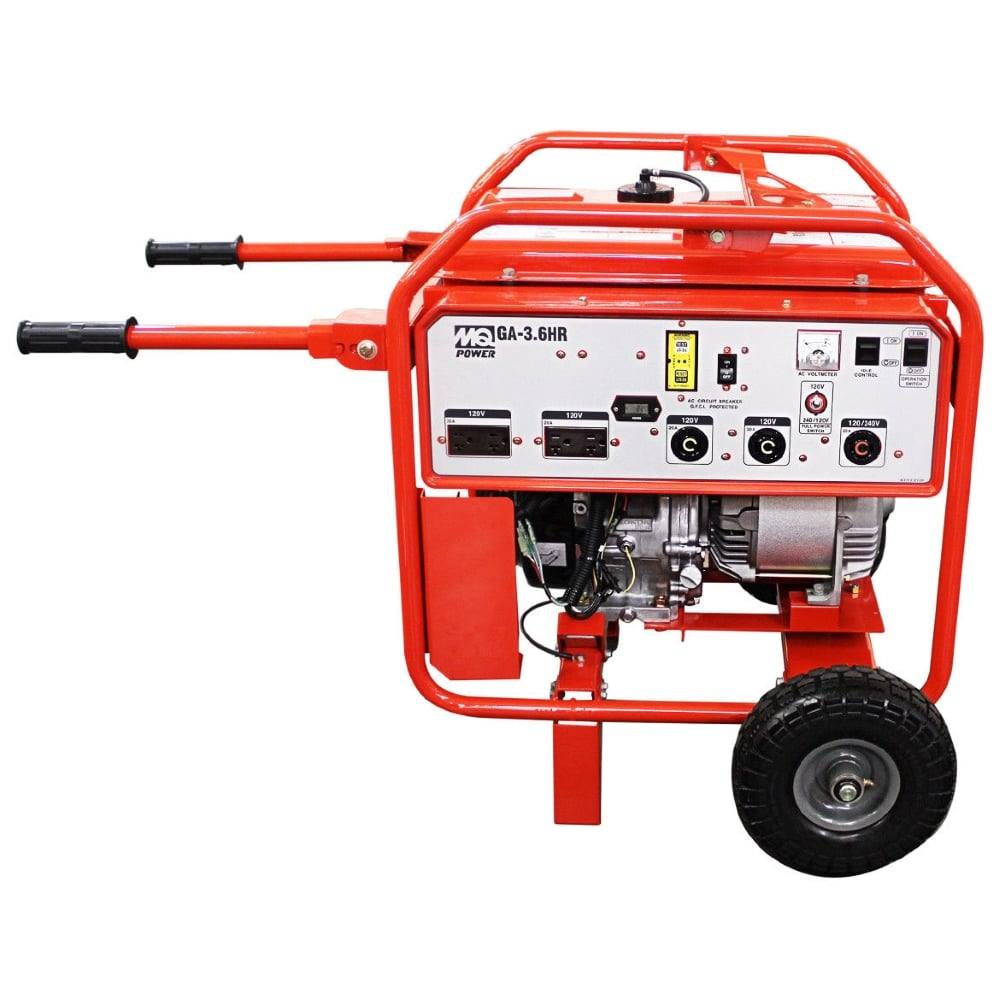

Multiquip GA36HR Portable Generator - 3.6 kW - Honda GX240

• 3.6kW, 120/240V, Honda
• Lightweight and compact design for easy transport
• Full panel GFCI protection - OSHA and NEC compliant
• 100% copper windings for maximum conductivity
• Includes a wheel kit and folding lifting bale as standard equipment
• Powered by Honda GX240 engine with low-oil shutdown and idle control
• Alternator design eliminates maintenance by removing brushes and slip rings
• Heavy-duty 1-inch (25 mm) steel pipe frame and shock mounts protect the generator

Unit Specifications

• Alternator Design Brushless
• Frequency 60 hz
• Phase Single Phase
• Voltage 120/240 V
• Sound level at 30 ft 76 dBA
• Fuel Tank Capacity 5 gal 19 L

Power Generation

• Maximum Continuous
• Watts 3600 W 3200 W
• Amps at 120V 30 A 26.6 A
• Amps at 240V 15 A 13.3 A

Receptacles & Circuit Breakers

• Main Circuit Breaker 21 A
• Number of Poles 2
• 1 Receptacle of Each: L5-20R 125V T-Lock 20A
• L5-30R 125V T-Lock 30A
• L14-20R 125/250V T-Lock 20A
• 2 Receptacle of Each: 5-20R 125V GFCI 20A
