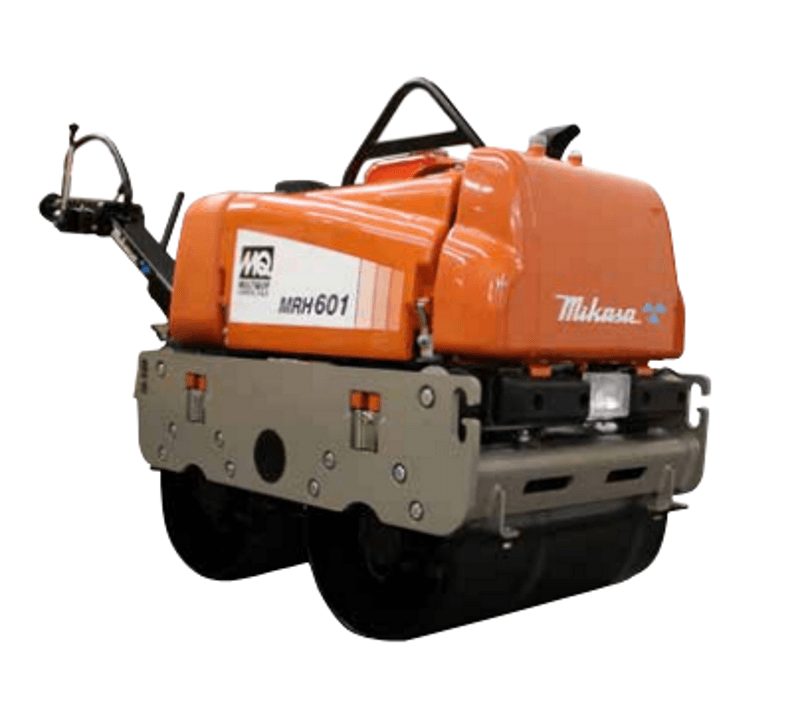

Multiquip MRH601DS Double Drum Roller Walk Behind - 2400 lb

Multiquip MRH601DS - Double Drum Vibratory Roller

Features:

• Hydraulic drive system provides smooth machine operation
• Kubota liquid cooled engine with electric start provides long service life
• Automatic shut-off button located at the top of the handle keeps the operator safe when actuated
• Hourmeter measures runtime
• Electromagnetic clutch for fast and smooth engagement of vibrator function
• Water tank with 7.9 gallon capacity for long runtime on asphalt applications
• Fold-up guide handle for easy transport and storage
• Horn and headlight switch for job-site safety
• Parking break and stoppers for job-site placement stability

Unit Specifications

• Compaction Force 2428 lb 10.8 kN
• Frequency 3,300 VPM 55 Hz
• Travel Speed 0-1.86 mph 0-3 kph
• Water Tank Capacity 7.9 gal 29.9 L
• Drum Specifications
• Front Drum Width 25.6 in 650 mm
• Rear Drum Width 25.6 in 650 mm

Dimensions & Weights

• Overall Length 89.2 in 2266 mm
• Overall Width 27.2 in 691 mm
• Overall Height 47 in 1194 mm
• Operating Weight 1248 lb 566 kg
