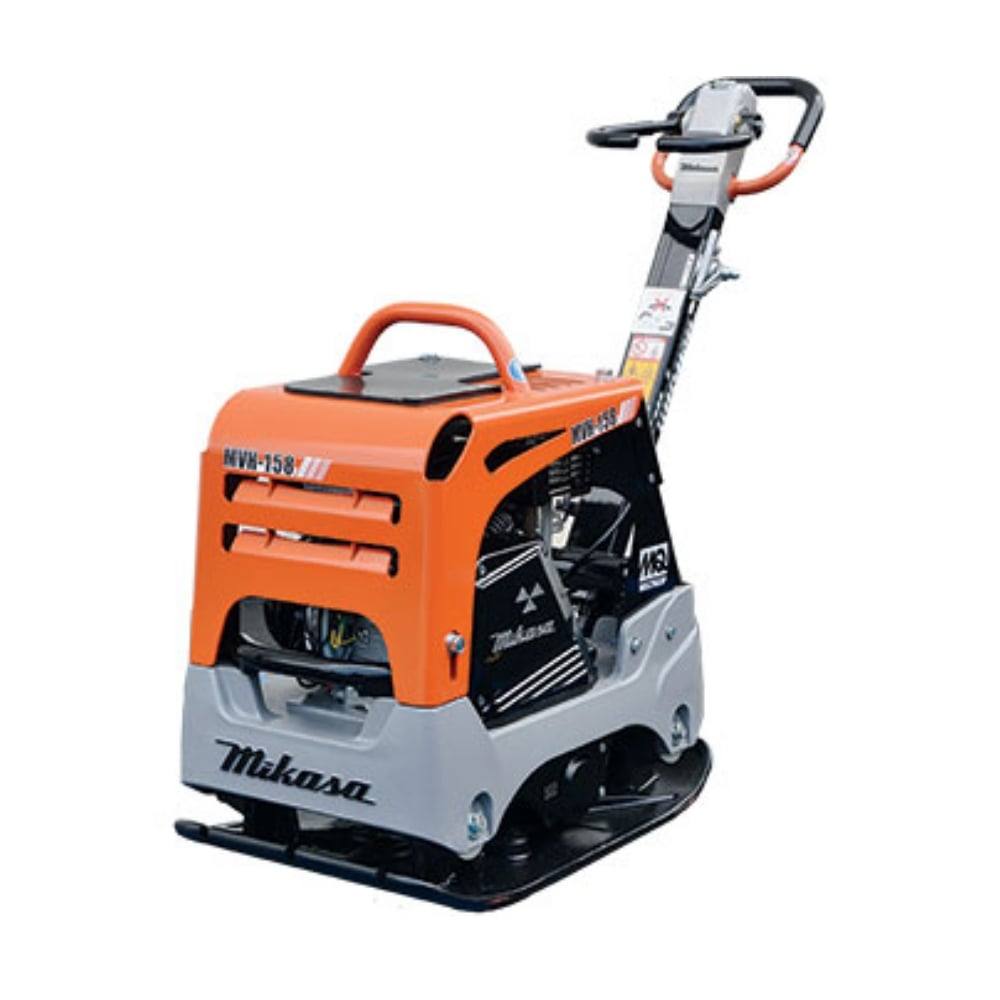

Multiquip MVH158GH Reversible Plate Compactor Honda GX200 17" Wide

Multiquip MVH158GH - Reversible Plate Compactor

Multiquip’s Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.

Features:

Reliable Honda GX200 engine.

• Features a dependable Honda GX200 engine, ensuring reliable, long-lasting performance for continuous commercial use.

Fold-out front cover for easy access to all maintenance points.

• Maintenance is streamlined by the fold-out front cover, providing convenient and complete access to all service components.

Hour/Tachometer to measure machine hour usage and engine RPM.

• Features a dual-function gauge that combines an hour meter and a tachometer for easily monitoring both engine runtime and performance RPMs.

Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.

• Features a cyclonic pre-cleaner that efficiently captures most airborne contaminants, providing superior engine protection and ensuring an extended service life.

Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.

• Features heavy-duty shock mounts designed to withstand harsh operating environments, effectively reducing vibration to extend component life and enhance durability.

Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.

• Features highly responsive hydraulic controls that facilitate effortless reversal of direction and superior handling for targeted, on-the-spot compaction.

Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.

• Built with a high-strength steel base plate for superior ruggedness. The open design ensures effortless cleanup and helps maintain top performance.

Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.

• The fully integrated steel cage not only provides robust protection for the engine against job site debris but also serves as a strong lifting bar, simplifying transport and portability.

Low profile base plate lowers the center of gravity dramatically improving travel speed.

• The innovative low profile base plate design improves stability and helps maximize travel speed by lowering the unit's center of gravity.

Optional- tool-free wheel kit, model WHL158

• Enhance portability with the optional WHL158 wheel kit, designed for tool-free installation and rapid transport of the unit.

Unit Specifications

• Centrifugal Force 6070 lbf 27 kN
• Exciter Speed 5400 VPM
• Plate Size 16.9 x 27.6 in
• 430 x 700 mm
• Max Forward Speed
• Per Min. 88 ft 27 m
• GX-200

Dimensions & Weights

• Overall Length 44.8 in 1130 mm
• Overall Width 16.9 in 430 mm
• Overall Height 36.5 in 920 mm
• Operating Weight 326 lb 148 kg
