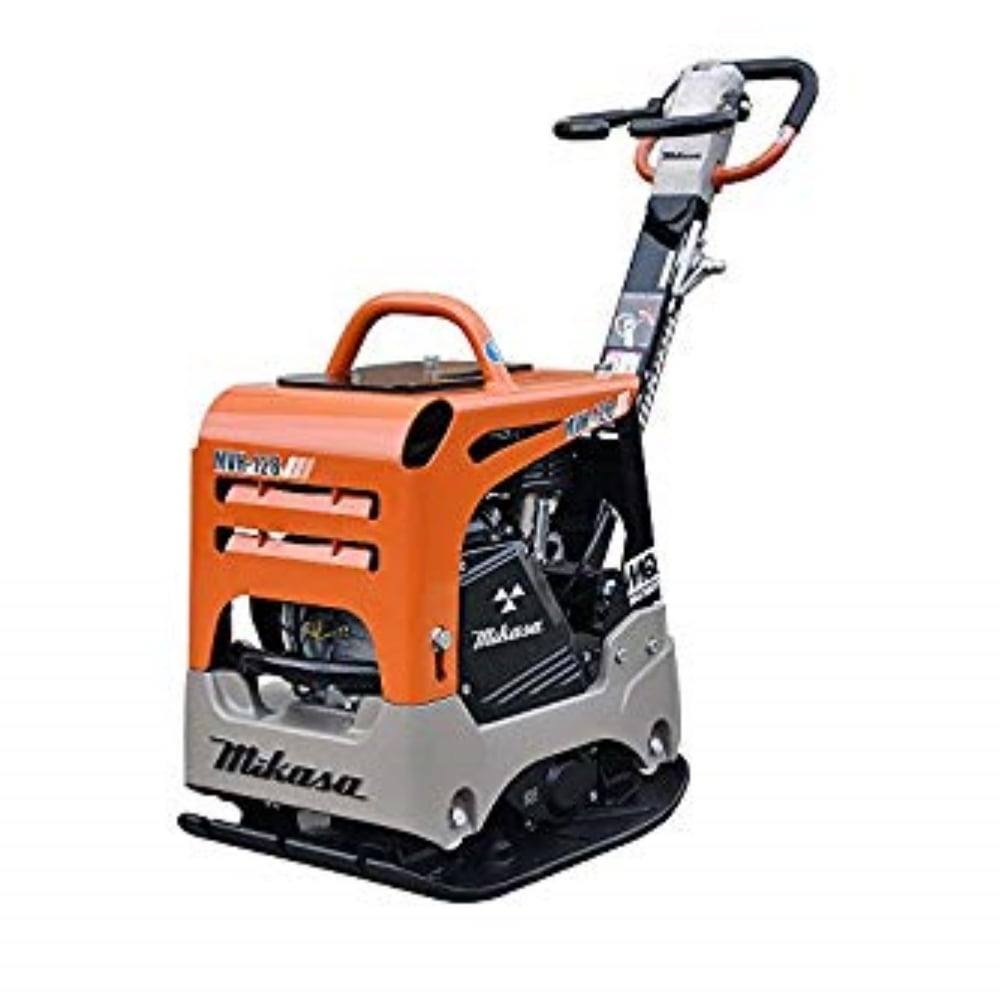

Multiquip MVH128GH Reversible Plate Compactor Honda GX160 16" Wide

Multiquip MVH128GH - Reversable Plate Compactor

Multiquip’s Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.

Features:

Reliable Honda GX160 engine.

• Powered by the high-quality, reliable Honda GX160 engine built for commercial use.

Fold-out front cover for easy access to all maintenance points.

• Maintenance is streamlined by the fold-out front cover, providing convenient and complete access to all service components.

Hour/Tachometer to measure machine hour usage and engine RPM.

• Equipped with an integrated hour/tachometer to track machine hours for maintenance scheduling and display live engine RPMs for performance monitoring.

Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.

• Features a cyclonic pre-cleaner that efficiently captures most airborne contaminants, providing superior engine protection and ensuring an extended service life.

Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.

• Features heavy-duty shock mounts designed to withstand harsh operating environments, effectively reducing vibration to extend component life and enhance durability.

Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.

• Hydraulic controls allow the operator to easily switch direction from forward to reverse, providing exceptional maneuverability and enabling precise spot compaction.

Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.

• Built with a high-strength steel base plate for superior ruggedness. The open design ensures effortless cleanup and helps maintain top performance.

Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.

• The fully integrated steel cage not only provides robust protection for the engine against job site debris but also serves as a strong lifting bar, simplifying transport and portability.

Unit Specifications

• Centrifugal Force 5283 lbf 23.5 kN
• Exciter Speed 5400 VPM
• Plate Size 23.2x15.8 in
• 590x400 mm
• Max Forward Speed
• Per Min. 89 ft 27 m

Dimensions & Weights

• Overall Length 40.55 in 1030 mm
• Overall Width 15.75 in 400 mm
• Overall Height 38 in 965 mm
• Operating Weight 268 lb 122 kg
