Multiquip MC64PE Concrete Mixer 1.5 HP, 115/230V, 1-Phase, 6 Cubic Feet, Poly Drum

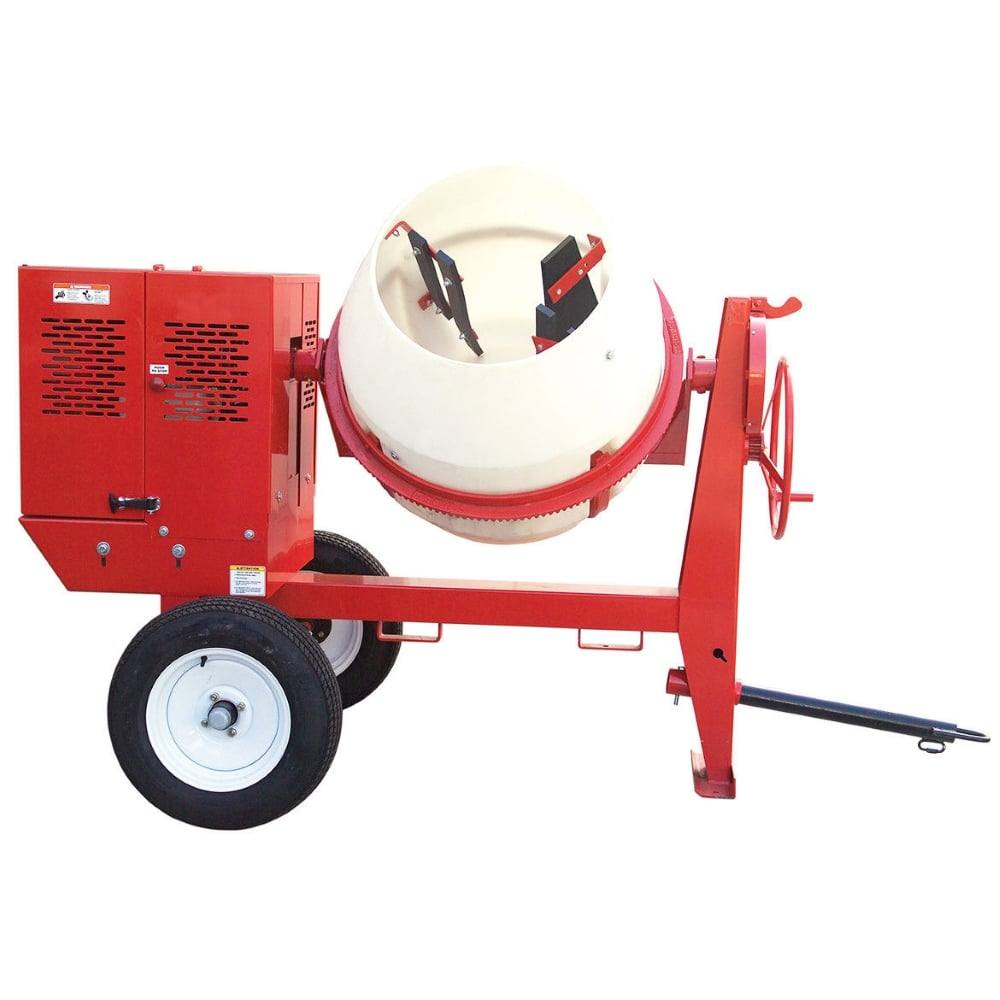

Multiquip MC64PE - Concrete Mixer

The Multiquip Whiteman MC64PE is a robust, high-capacity portable concrete mixer designed for medium-scale commercial and residential projects.

High Capacity and Durability: This mixer features a generous 6 cubic foot (6 cf) mixing capacity, making it ideal for efficient batch production for foundations, slabs, and general construction. The unit is equipped with a rust-proof, dent-resistant polyethylene (poly) drum, ensuring excellent durability and simpler cleanup compared to steel drums.

Reliable Electric Power: Powered by a dependable Baldor electric motor (typically ⁴$1.5\ hp$), the MC64PE offers consistent performance with clean, quiet operation.⁵ It is often equipped with heavy-duty components like a cast-iron ring gear for a long, trouble-free service life.

Portability and Handling: Built on a rugged steel frame with pneumatic tires, this Whiteman mixer provides easy portability around the job site and is designed for convenient loading and controlled discharge of material.

Tow Bar Included

Features:

Easy clean polyethylene drum

• Features an easy-clean polyethylene drum, allowing for hassle-free cleanup and simplifying maintenance.

Baldor 1.5-hp, 115/230V single-phase electric motor

• Features a heavy-duty Baldor 1.5\ hp motor (115V/$230V single-phase), known for dependable performance and wide voltage compatibility.

Heavy-duty one piece cast iron bull gear

• Equipped with a rugged, one-piece cast iron bull gear that guarantees superior durability and reliable, long-term performance.

A wide opening for easy loading

• Equipped with a wide access opening that greatly simplifies the loading process.

Unit Specifications

• Drive System V-Belt
• Dump Type Manual
• Discharge Height 23 in 585 mm
• Drum Type Poly
• Tire Size B78x13
• Frame Type Tubular
• Paint Type Powder coat
• Power Source Baldor 1.5 HP 1Ø 115/230V Electric

Drum Specifications

• Drum Capacity 6 cu. ft 0.5 L
• bags
• Drum Opening 19 in 482.6 mm
• Drum Depth 29 in 736.5 mm

 Dimensions & Weights

• Overall Length 102 in 2591 mm
• Overall Width 51 in 1295 mm
• Overall Height 59 in 1498 mm
• Operating Weight 656 lb 1510 kg
